SPECIFICATIONS
Battery Voltage: 24VDC
Brand Name: PowMr
Certification: CE
Function 1: Inverter Charger
Function 2: Solar Inverter
Function 3: Pure Sine Wave Inverter
Hign-concerned Chemical: None
Is Smart Device: Yes
Maximum PV Array Open Circuit Voltage: 80VDC
Model Number: PS-3K-100V
Origin: Mainland China
Output Current: 50A
Output Frequency: 50HZ/60HZ
Output Power: 1 – 200KW
Output Type: SINGLE
Output Voltage: 110VAC/120VAC
Power: 3000VA 2400W
Size: 355x272x100mm
Type 1: Inverter Charger
Type 2: Pure Sine Wave Inverter Charger
Usage: off hybrid soalr inverter
Waveform: Pure Sine Wave
Weight: 6.9kg
is_customized: Yes

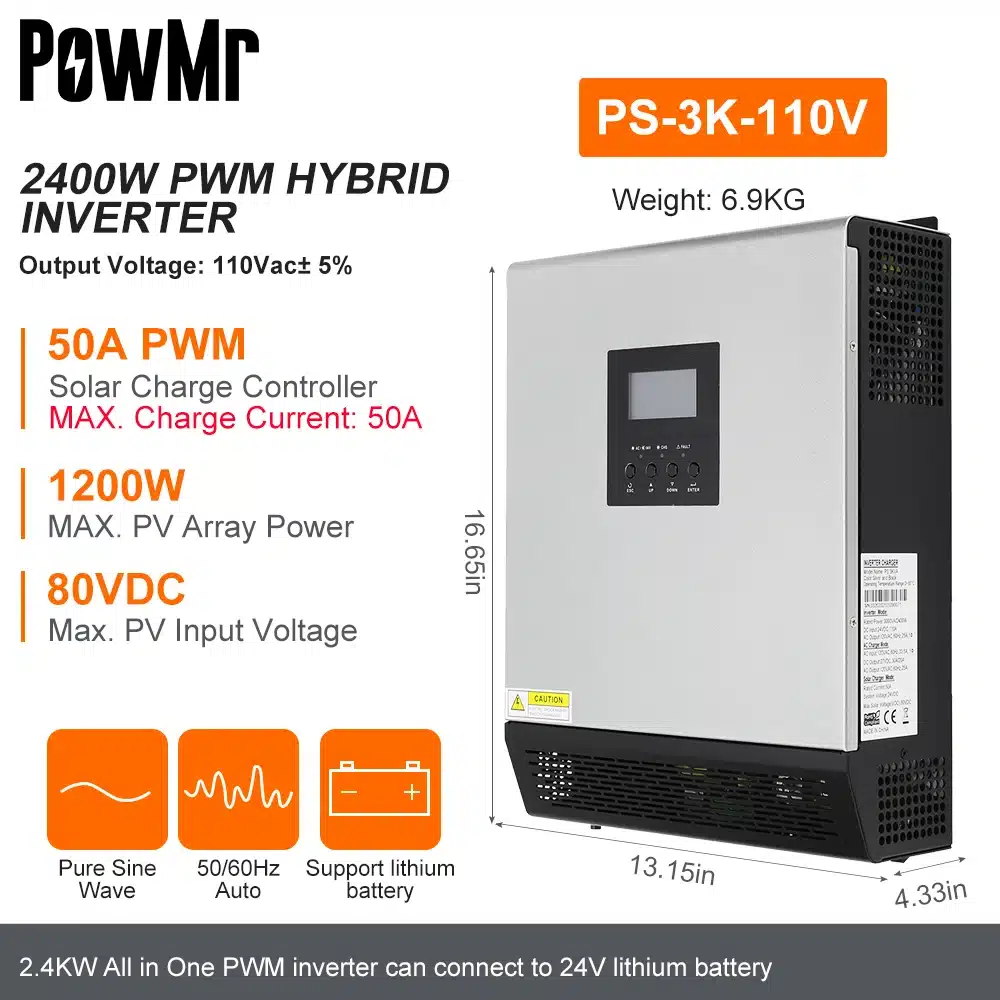

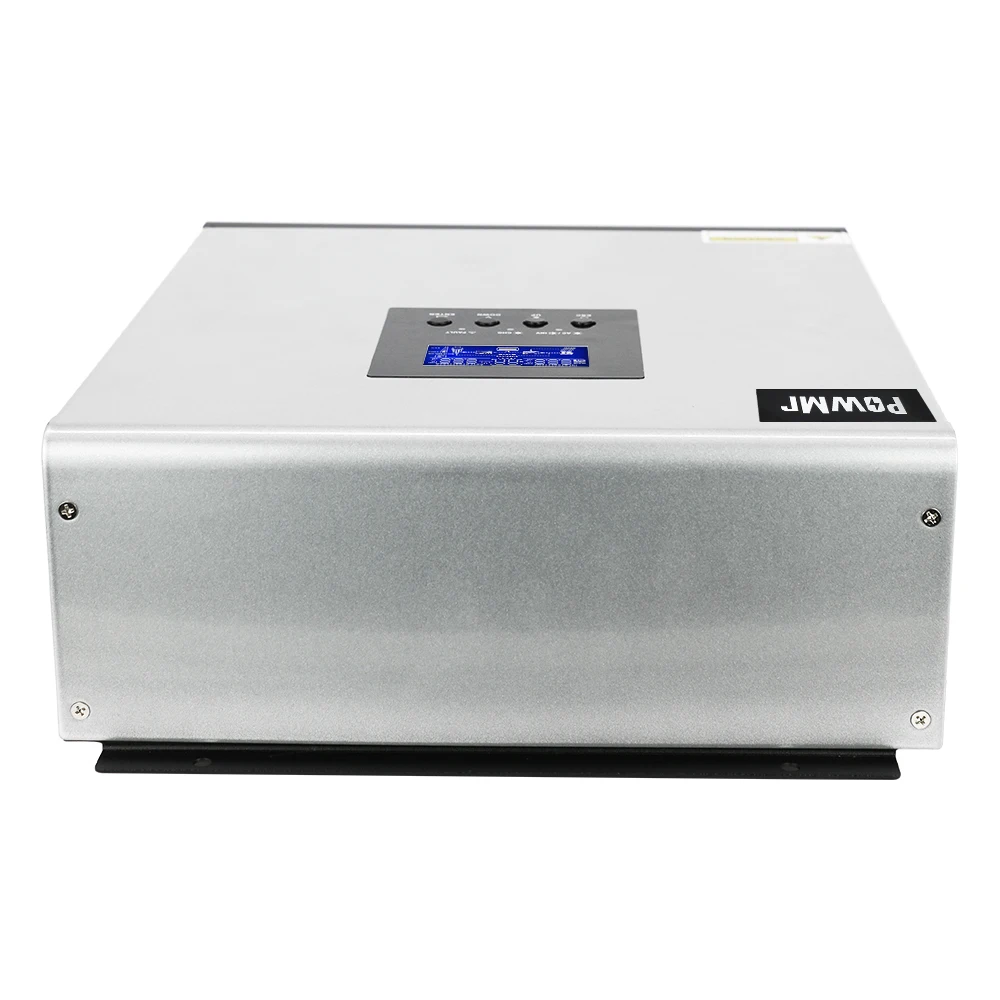

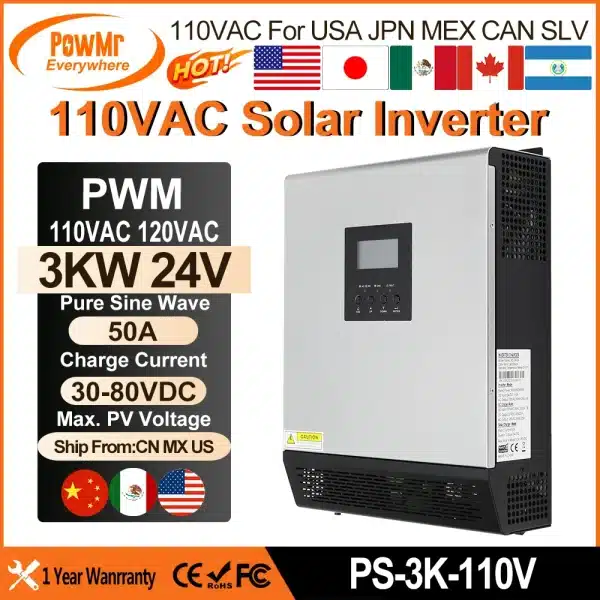

PowMr 3KVA Hybrid Solar Inverter 24VD to 110VAC Output Pure Sine Wave 50A PWM Solar Charger Controller For Solar Panel 80VDC
Overviwe:

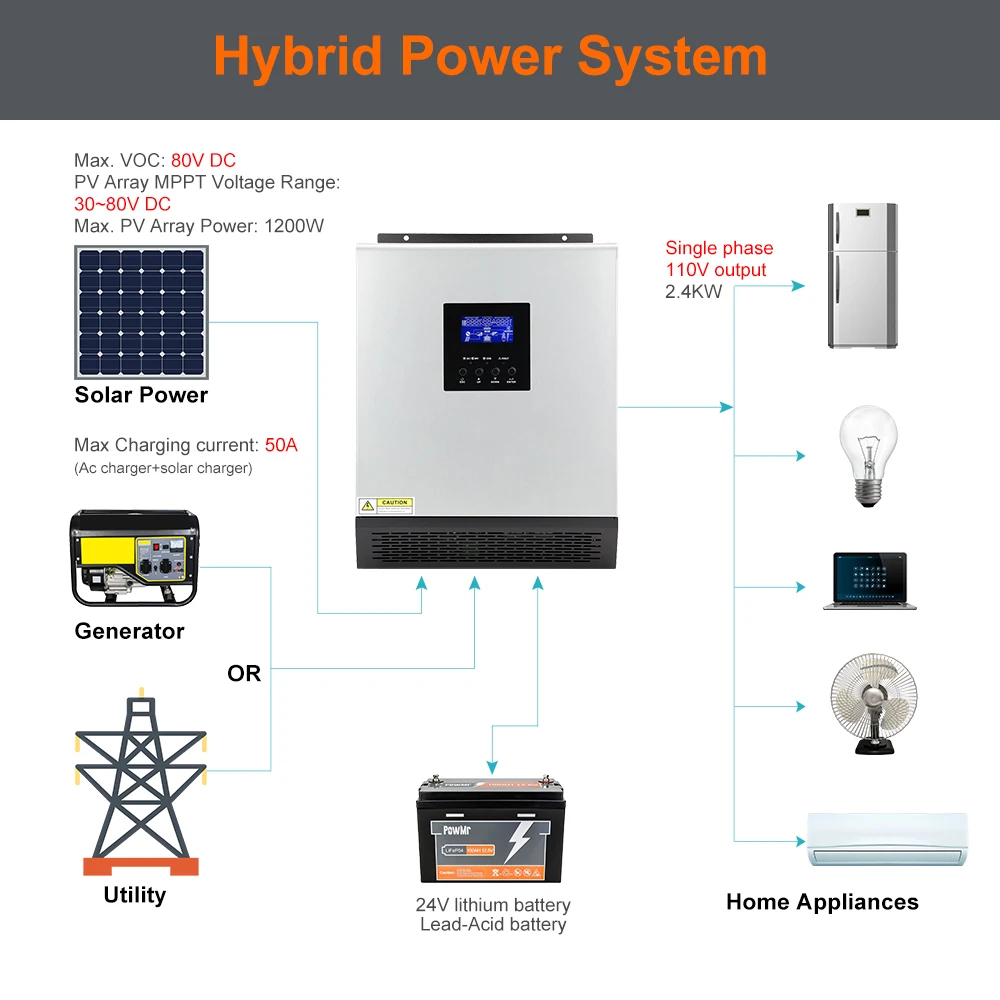

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Featurs:
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible to mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Built-in PWM solar charge controller
10.Cold start function
Product Details:
|

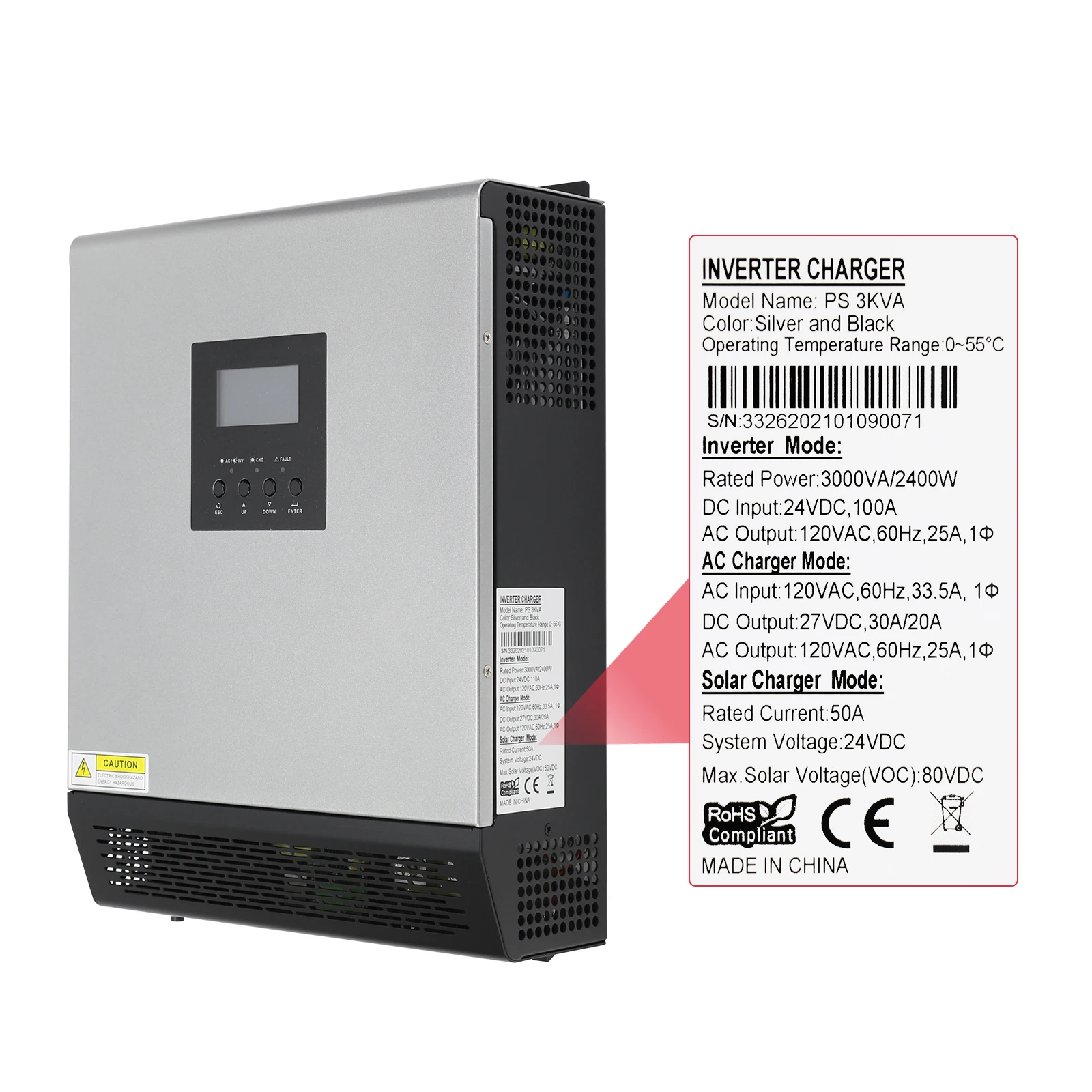

Model Name |
PS-3K-110V |
|
Input Voltage Waveform |
Sinusoidal(utility or generator) |
|
Rated Power |
3000VA/2400W |
|
Input |
|
|
Voltage |
120VAC |
|
Frequency Range |
50HZ/60HZ(Auto Sensing) |
|
Output |
|
|
AC Voltage Regulation |
120VAC |
|
Surge Power |
6000VA |
|
Wareform |
Pure Sine Wave |
|
Battery & AC Charger |
|
|
Battery Voltage |
24VDC |
|
Float Voltage |
27VDC |
|
Overcharge Protection |
30VDC |
|
AC Charging Current |
20A |
|
Solar Controller |
|
|
Charging Current(PWM) |
50A |
|
Max PV Array Open Circuit Voltage |
80V |
|
Max PV Power Input |
1200W |
|
Standby Power Consumption |
2W |

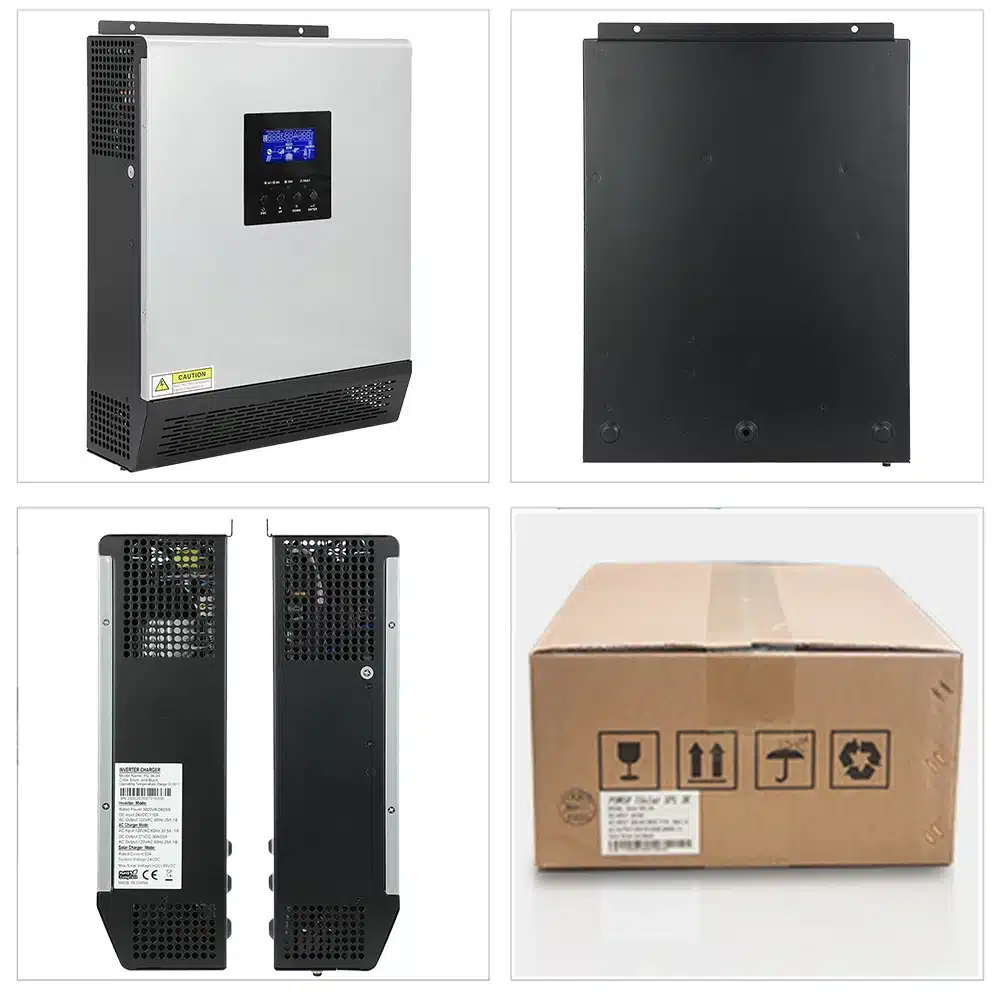

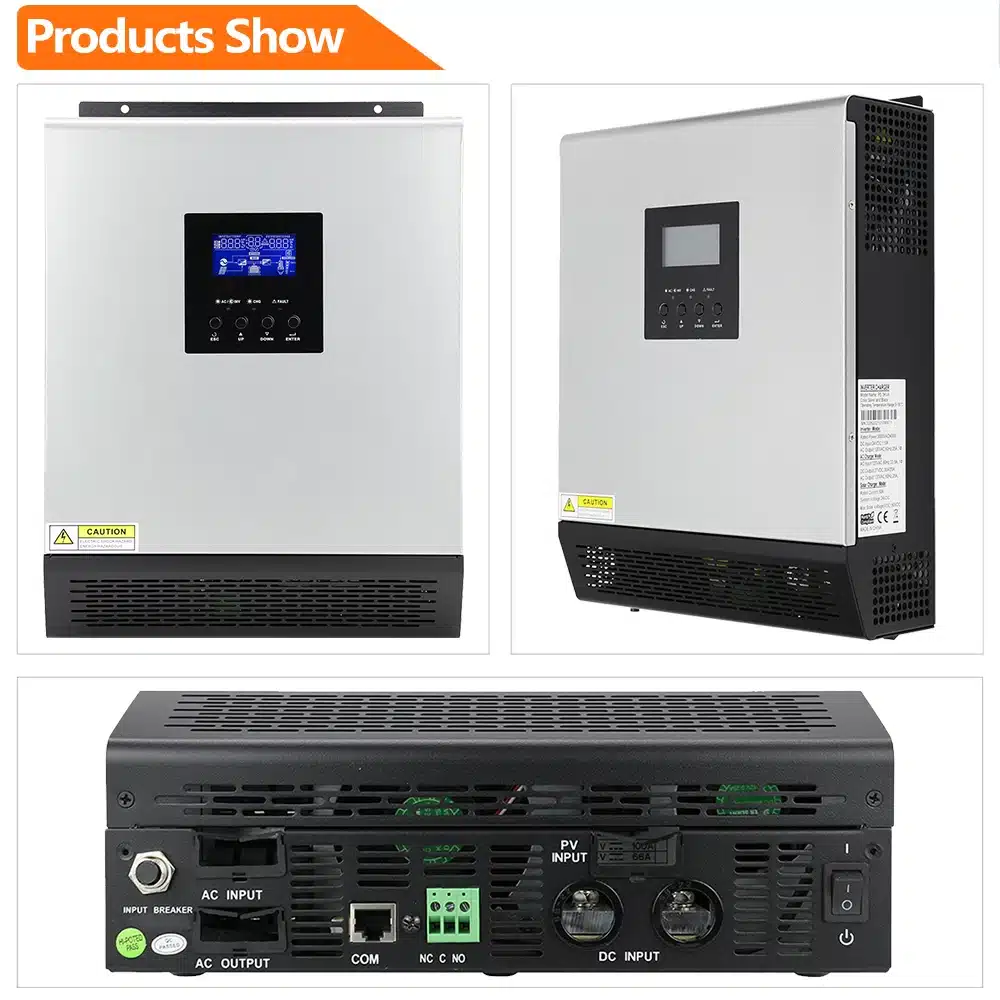

Product Overview:
