SPECIFICATIONS

Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)

Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries

Battery voltage: 24VDC

Brand Name: PowMr

Certification: CE

Charging: pure sine wave inverter

Description: photovoltaic hybrid inverter

Hign-concerned Chemical: None

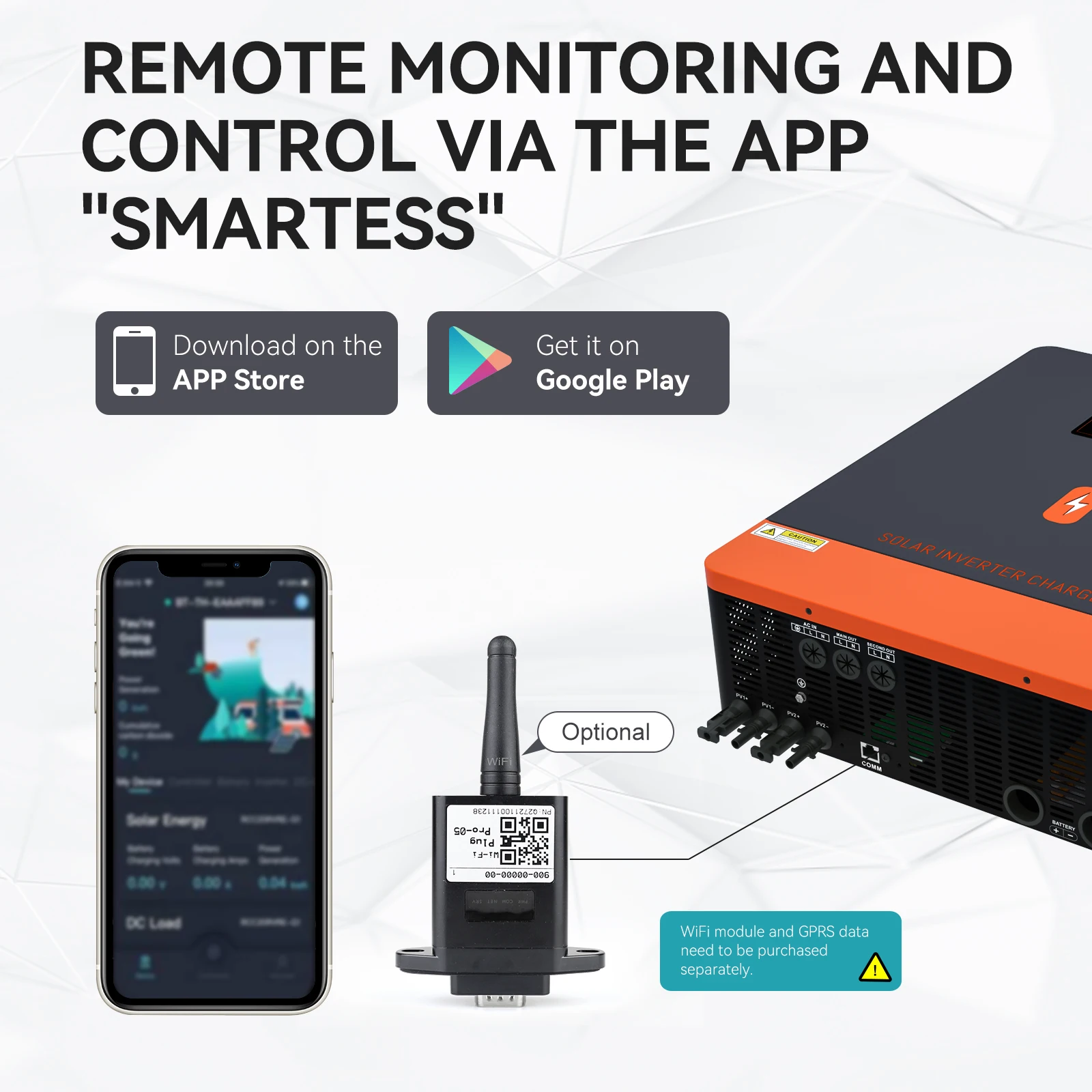

Is Smart Device: Yes

Max PV array power: 4200W

Model Number: POW-LVM3.6M-24V

Origin: Mainland China

Output Current: MPPT 120A

Output Frequency: 50HZ/60HZ

Output Power: 1 – 200KW

Output Type: SINGLE

Output voltage range: 100/108/110/115/120VAC

PV voltage range: 60-500VDC

Part of: solar system complete

Product: hybrid solar inverter

Rated output power: 3.6KW/3.6KVA

Size: 423x334x110 mm

Used for: Household appliances, farm tools, farm tools

Weight: 9KG

Work for: solar panel/photovoltaic panel,Factory equipment, commercial load, industrial machinery

is_customized: Yes

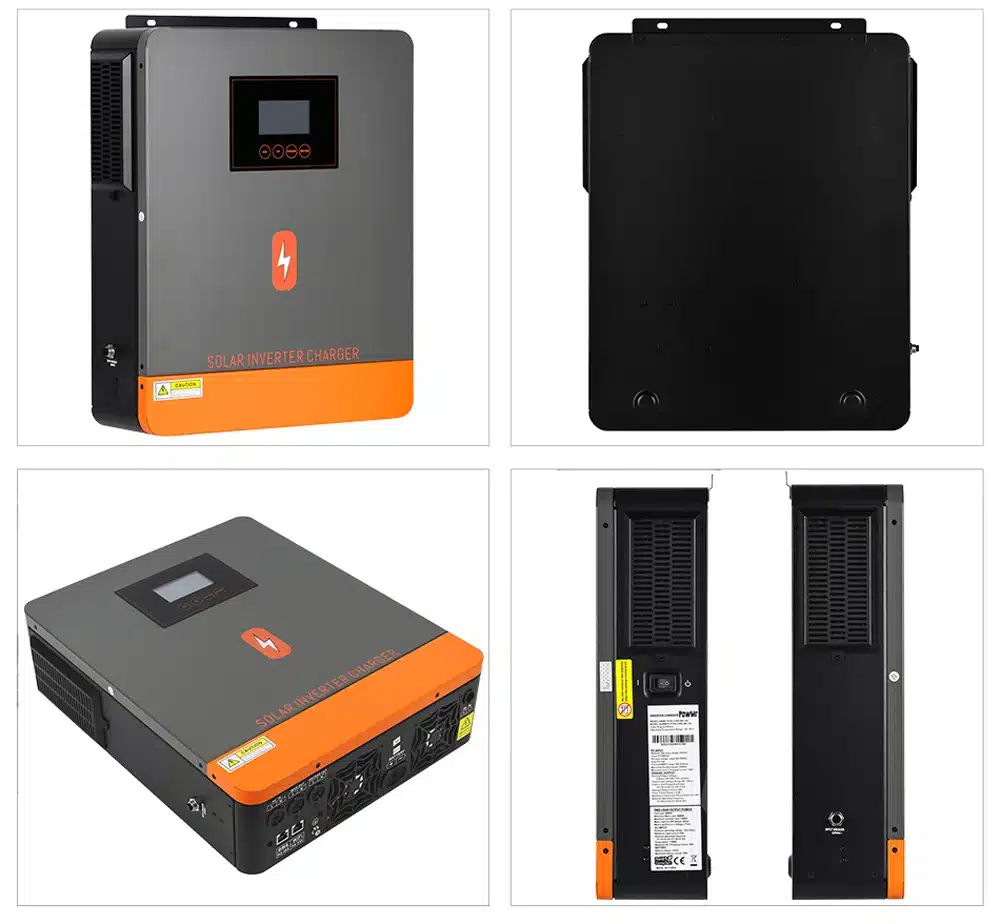

PowMr 3.6KW Hybrid Solar Inverter 24V to 110V 120V With Pure Sine Wave 120A MPPT Solar Charge Controller for 60~500V Solar Panel

Overview:

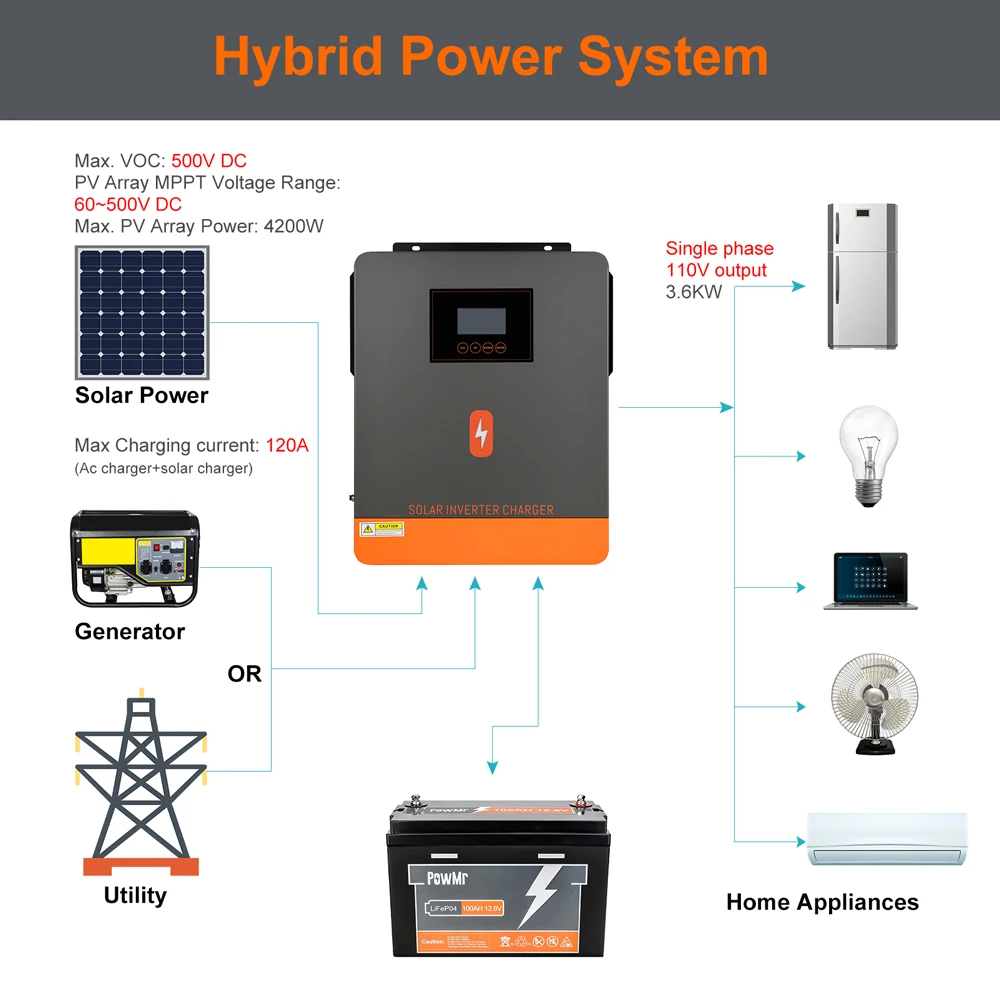

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Feature:

1.Pure sine wave inverter.

2.Configurable input voltage range for home appliances and personal computers via LCD setting.

3.Configurable battery charging current based on applications via LCD setting.

4.Configurable AC/Solar Charger priority via LCD setting.

5.Compatible with mains voltage or generator power.

6.Auto restart while AC is recovering.

7.Overload/ Over temperature/ short circuit protection.

8.Smart battery charger design for optimized battery performance.

9.Cold start function.

Specification:

MODEL	POW-LVM3.6M-24V
Rated Output Power	3.6KVA/3.6KW
Battery Voltage	24VDC

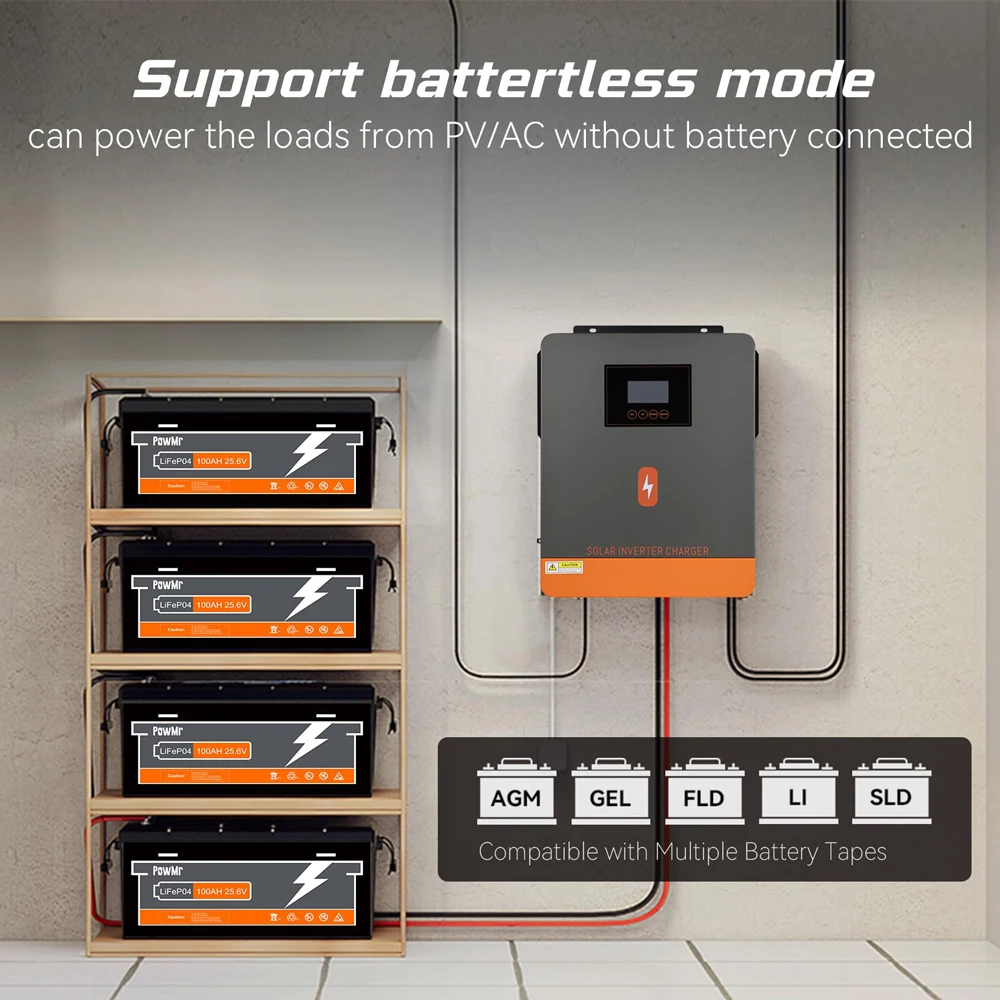

Battery Tape	Lead-acid battery and lithium battery
Nominal Input Voltage	110/105/110/115/120VAC
Nominal Input Frequency	50Hz / 60Hz (Auto detection)
Efficiency	>95% ( Rated R load, battery full charged )
Output Voltage Waveform	Pure Sine Wave
Floating Charging Voltage	27VDC
Charging Algorithm	3-Step

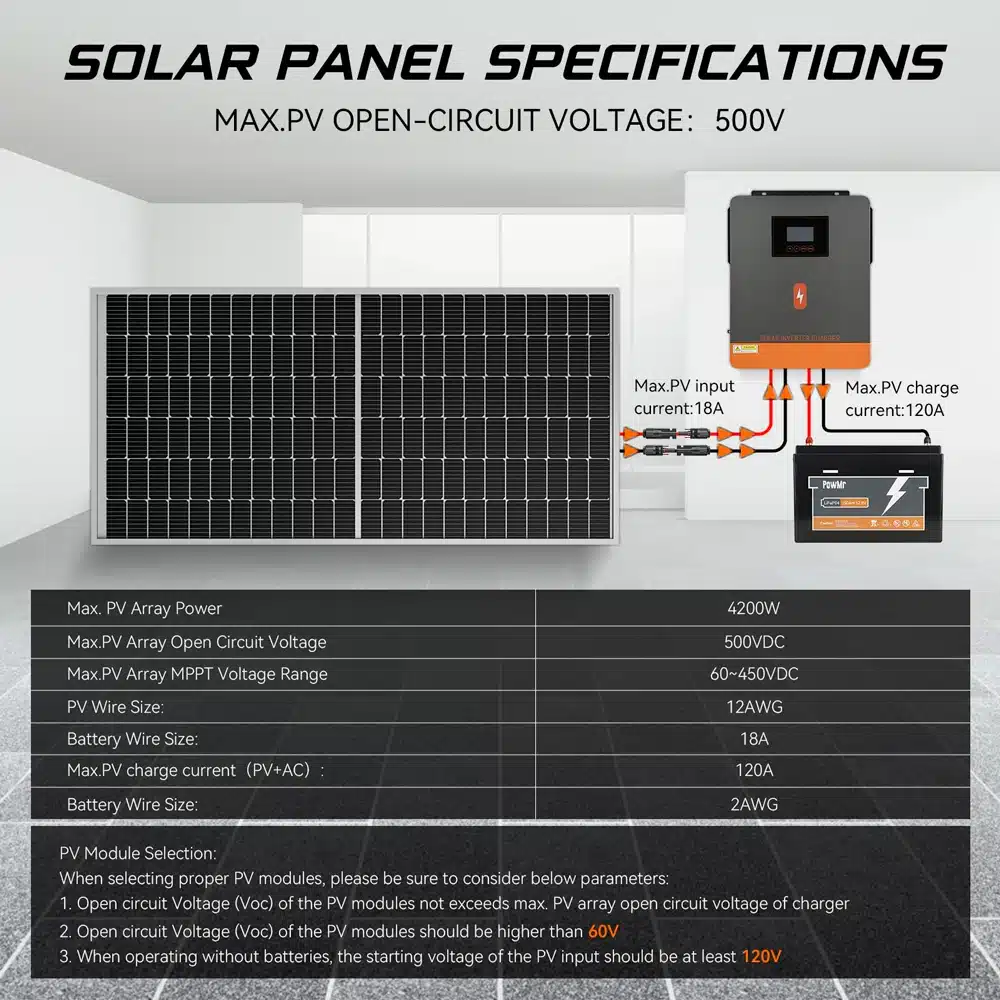

Max. PV Array Power	4200W
Max. PV Current	16A
Nominal PV Voltage	240VDC
Start-up Voltage	60VDC ± 10VDC
PV Array MPPT Voltage Range	60VDC~500VDC
Max. PV Array Open Circuit Voltage	500VDC

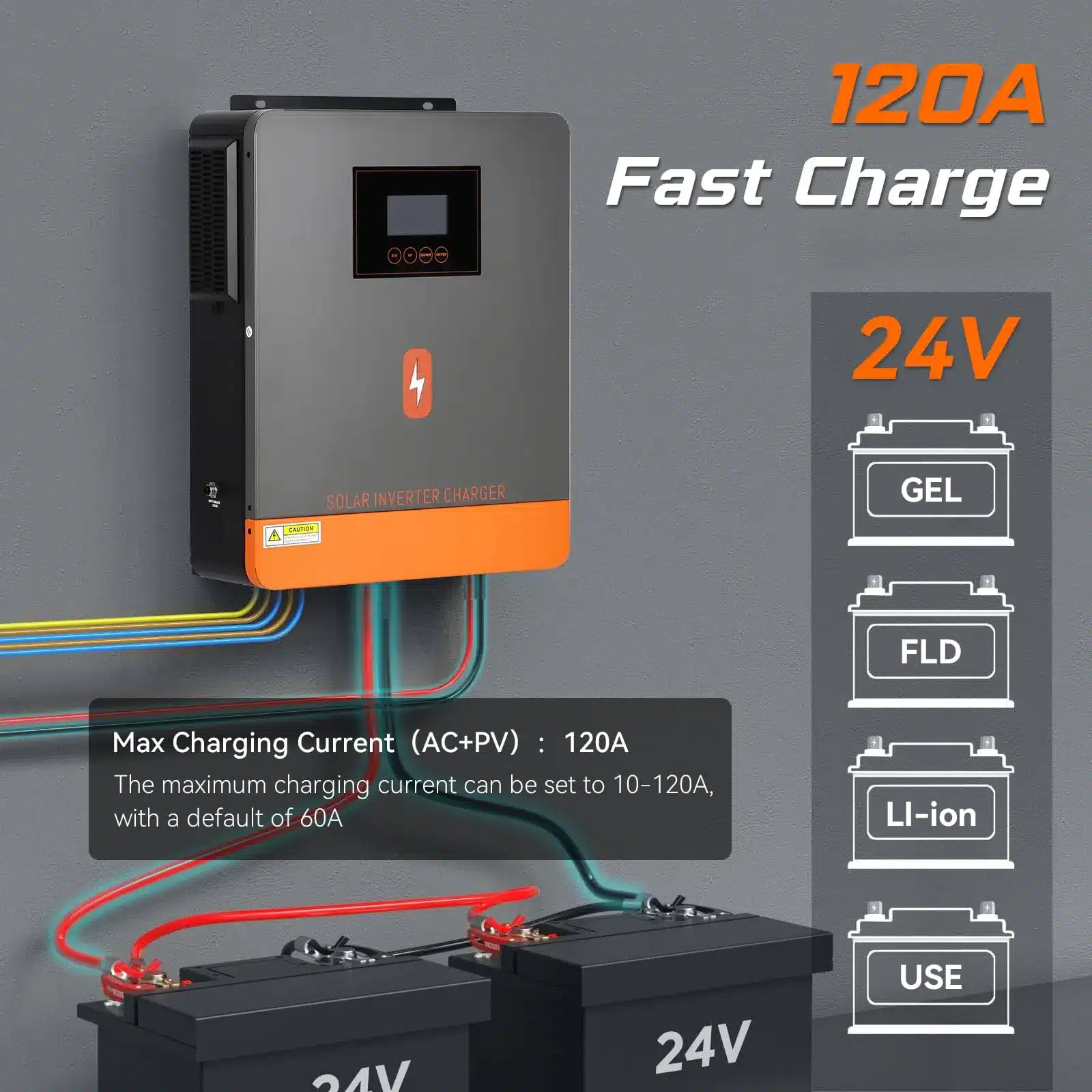

Max Charging Current	120Amp
Safety Certification	CE
Operating Temperature Range	-10℃ to 55℃
Storage temperature	-15℃~ 60℃
Humidity	5% to 95% Relative Humidity (Non-condensing)

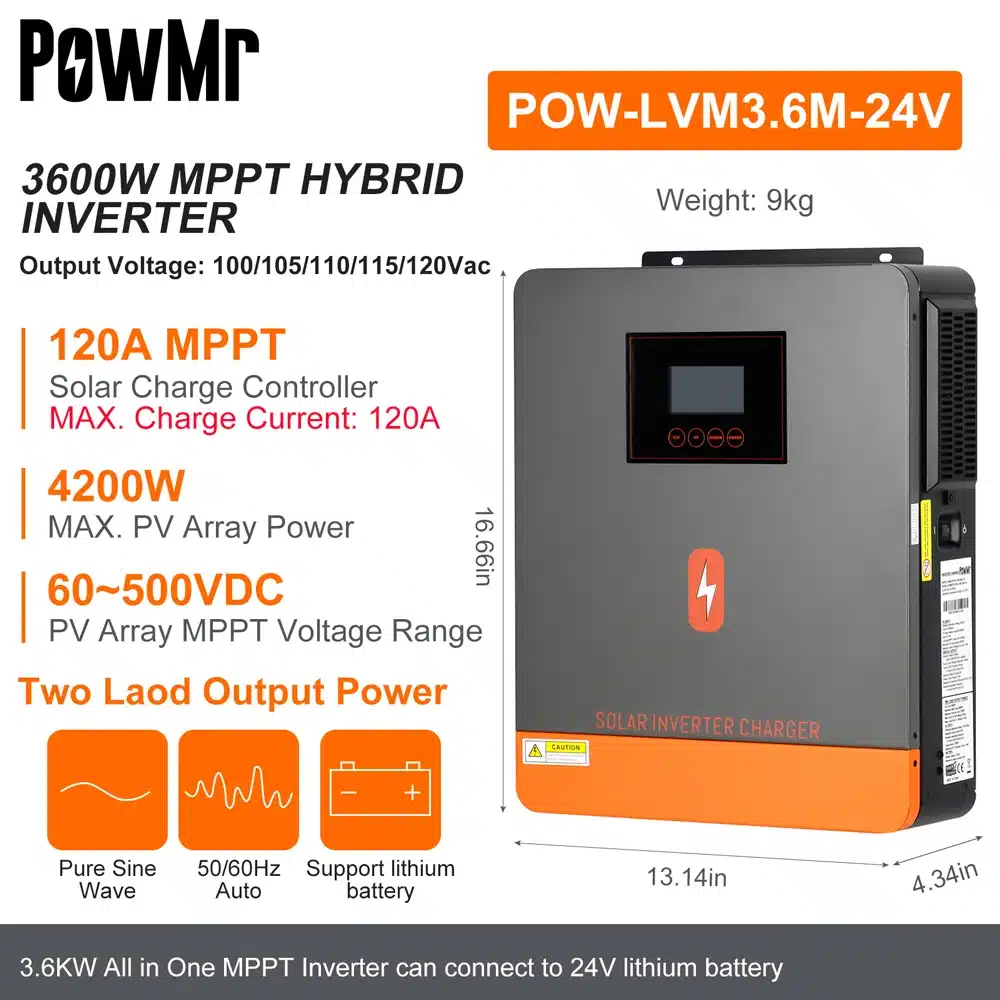

Dimension (D*W*H), mm	423x334x110
Net Weight, kg	9

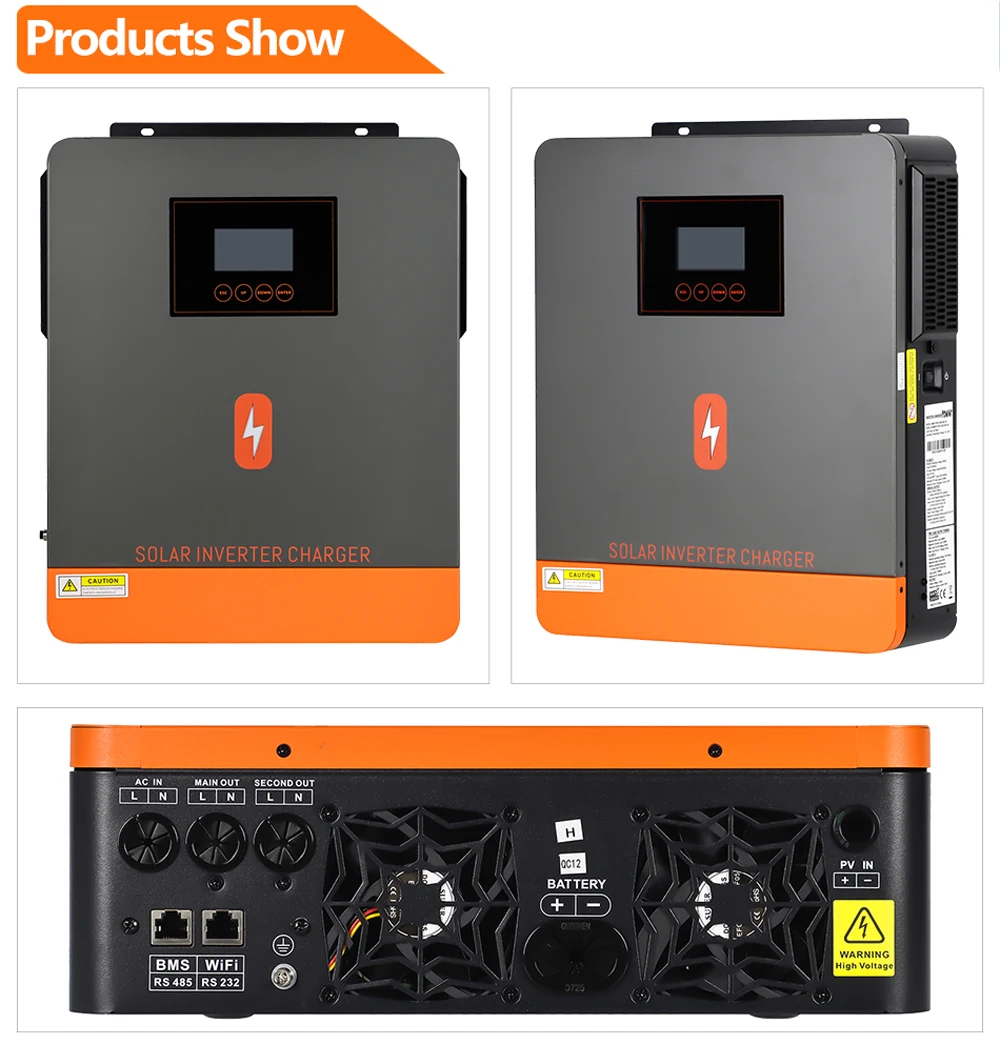

Product Overview:
