SPECIFICATIONS

Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)

Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries

Brand Name: PowMr

Certification: CE

Charging: pure sine wave inverter

Description: photovoltaic hybrid inverter

Equipment: Factory equipment, commercial load, industrial machinery

Hign-concerned Chemical: None

Is Smart Device: Yes

Item: Hybrid solar inverter

Load type: Household appliances, farm tools, farm tools

Model Number: POW-HVM Hybrid Inverter

Origin: Mainland China

Output Current: MPPT 80A

Output Frequency: 50Hz/ 60Hz (Auto-detection)

Output Power: 1 – 200KW

Output Type: SINGLE

Output voltage range: 220-240VAC

PV Array MPPT Voltage Range: 30VDC-150VDC, 30VDC-400VDC

Product: hybrid solar inverter

Size: 348X270X95mm

Weight: 5.8kg

Working efficiency: >95%

is_customized: Yes

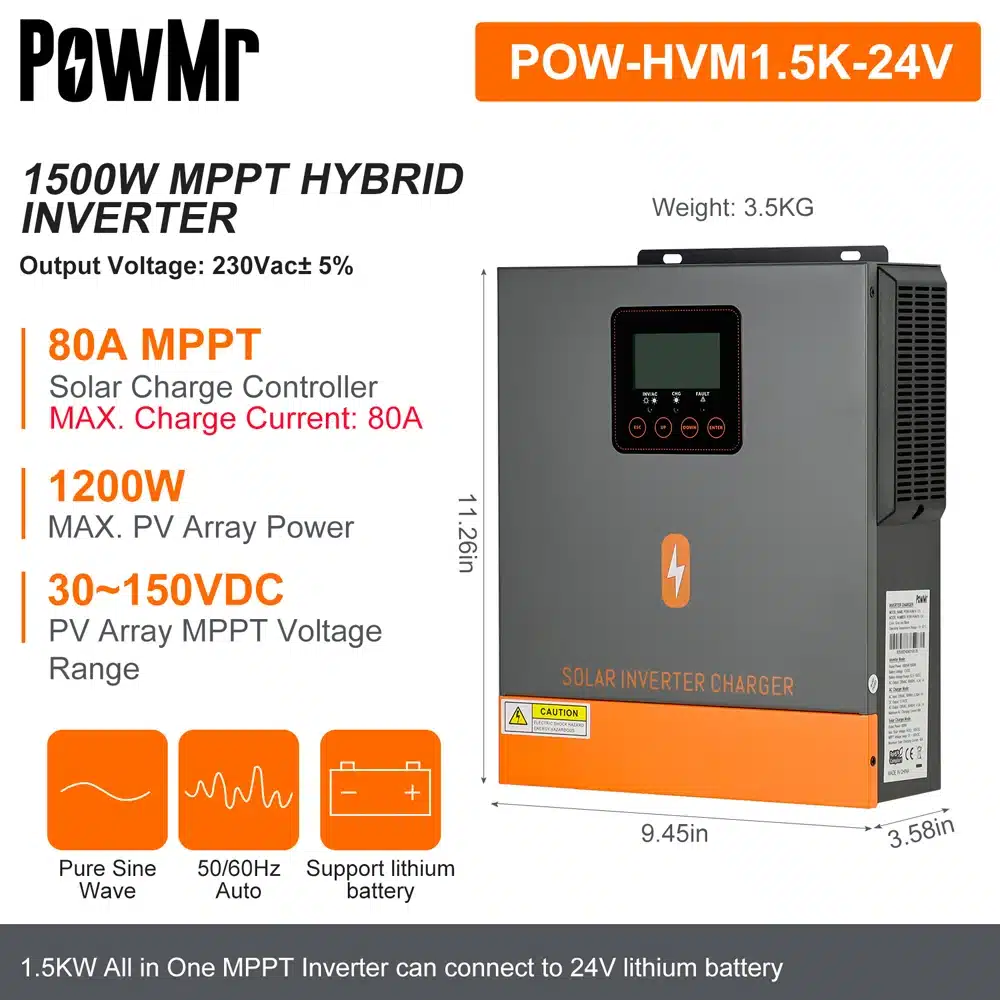

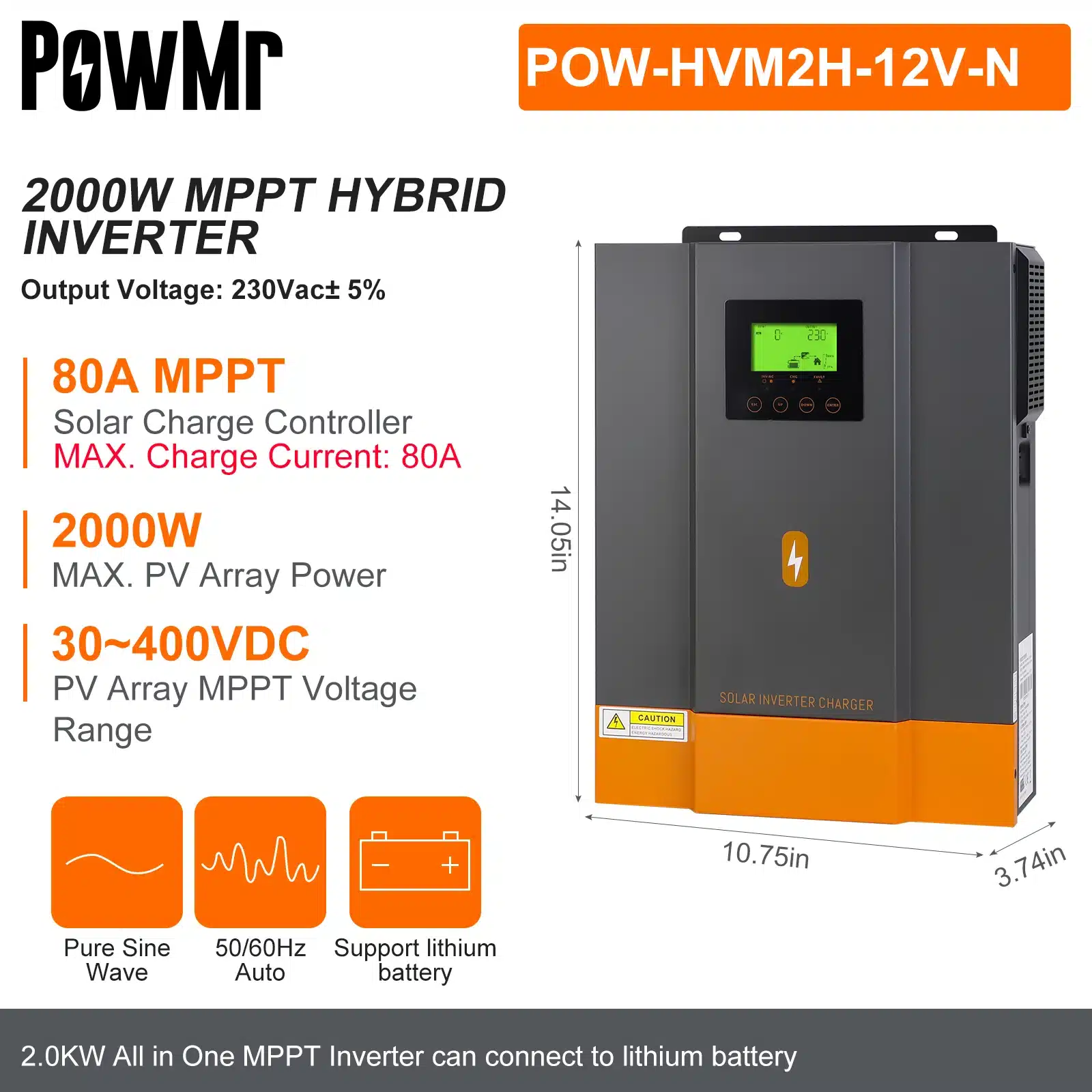

PowMr 3.2KW 2KW 1.5KW 1KW Hybrid Solar Inverter 12V 24V Battery to 230VAC Pure Sine Wave Output With MPPT 80A Solar Controller

Introduction:

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority via LCD setting
• Compatible with mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS(Option)
• Can connect to lithium battery

Specification:

INVERTER MODEL	1KW 12V	1.5KW 24V	2KW 12V	3.2KW 24V
Rated Output Power	1000VA/1000W	1500VA/1500W	2000VA/1600W	3200VA/3000W
Output Voltage Waveform	Pure Sine Wave		Pure Sine Wave
Output Voltage Regulation	230Vac士5%		230Vac士5%
Output Frequency	50Hz/ 60Hz (Auto-detection)		50Hz/ 60Hz (Auto-detection)
Peak Efficiency	94%		94%
Overload Protection	3s@>150% load;5s@ 100%~150% load		5s@ >150% Io ad; 10s@ 110% ~ 150% Io ad
Surge Capacity	2* rated power for 5 seconds		2* rated power for 5 seconds
Charging Algorithm	3-Step		3-Step
AC Charging Current (Max)	40Amp		60Amp
Max. PV Array Power	600W	1200W	2000W	3000W
PV Array MPPT Voltage Range	20~150Vdc	30~150Vdc	30~400Vdc	30~400Vdc
PV Array MPPT Voltage Range	150Vdc		400Vdc
Max(AC+Solar)Charging current	80Amp		80Amp
Safety Certification	CE		CE
Operating Temperature Range	-10°C to 50°C		-10°C to 50°C
Storage temperature	-15°C- 60°C		-15°C- 60°C
Humidity	5% to 95% Relative Humidity(Non-condensing)
Dimension	286X240X91		357x273x95
