Product selling point:

1. It is very suitable for DIY enthusiasts, and can also be used for school electronic component production training

2. DC 4.5V power supply, easy to operate

3. Product performance is stable

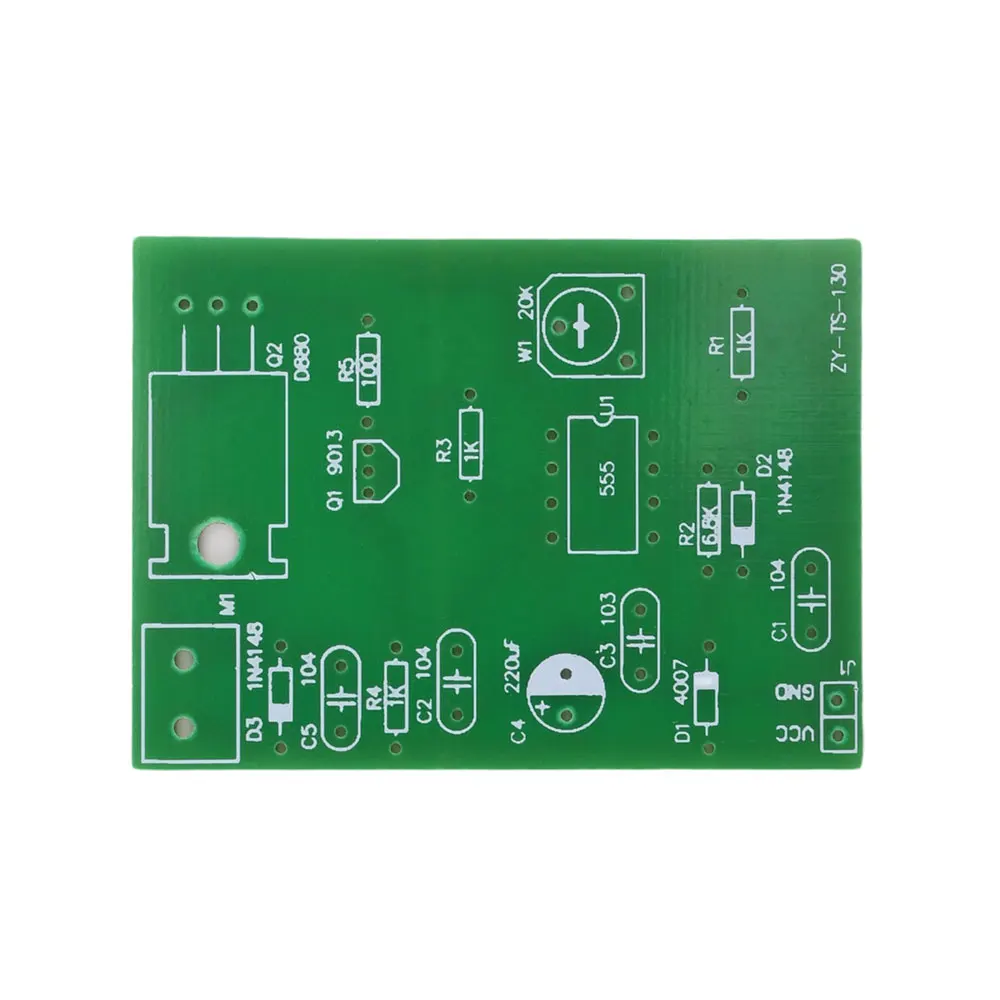

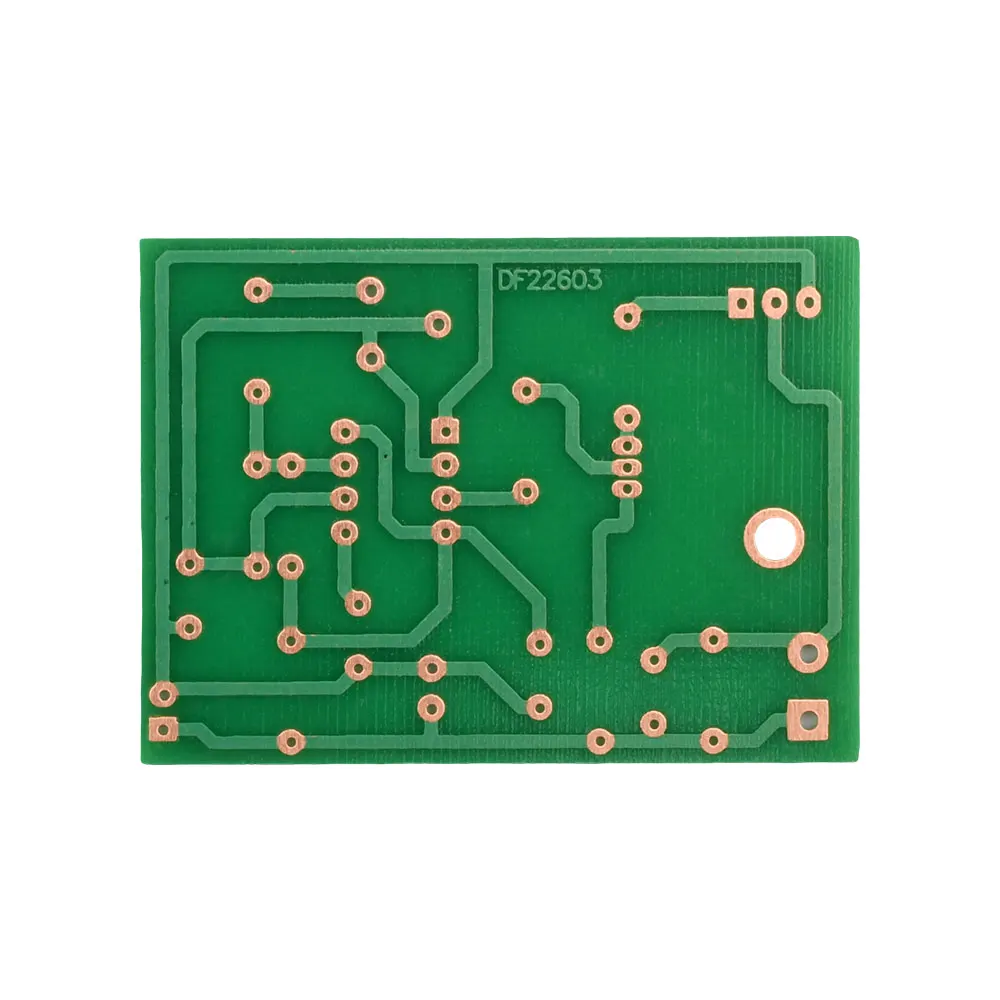

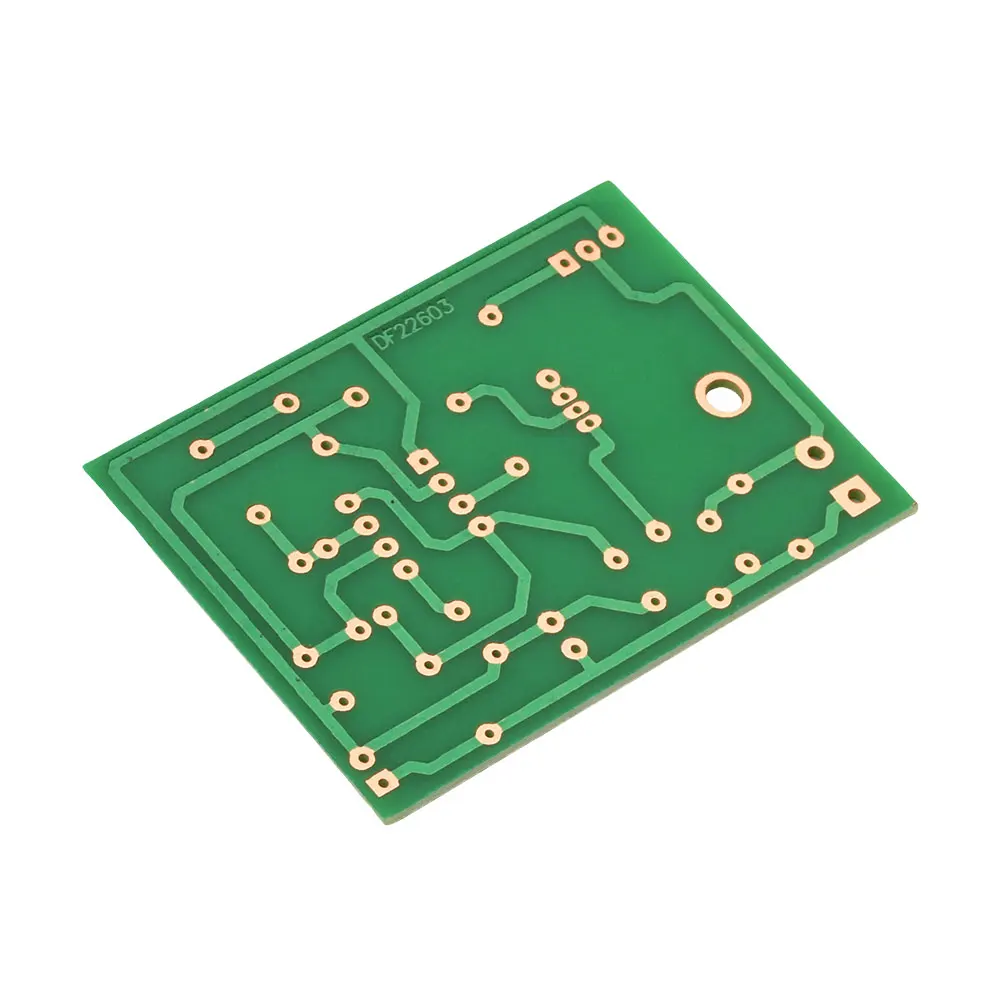

4. The product is made of high-quality PCB board, which is not easy to oxidize and bend

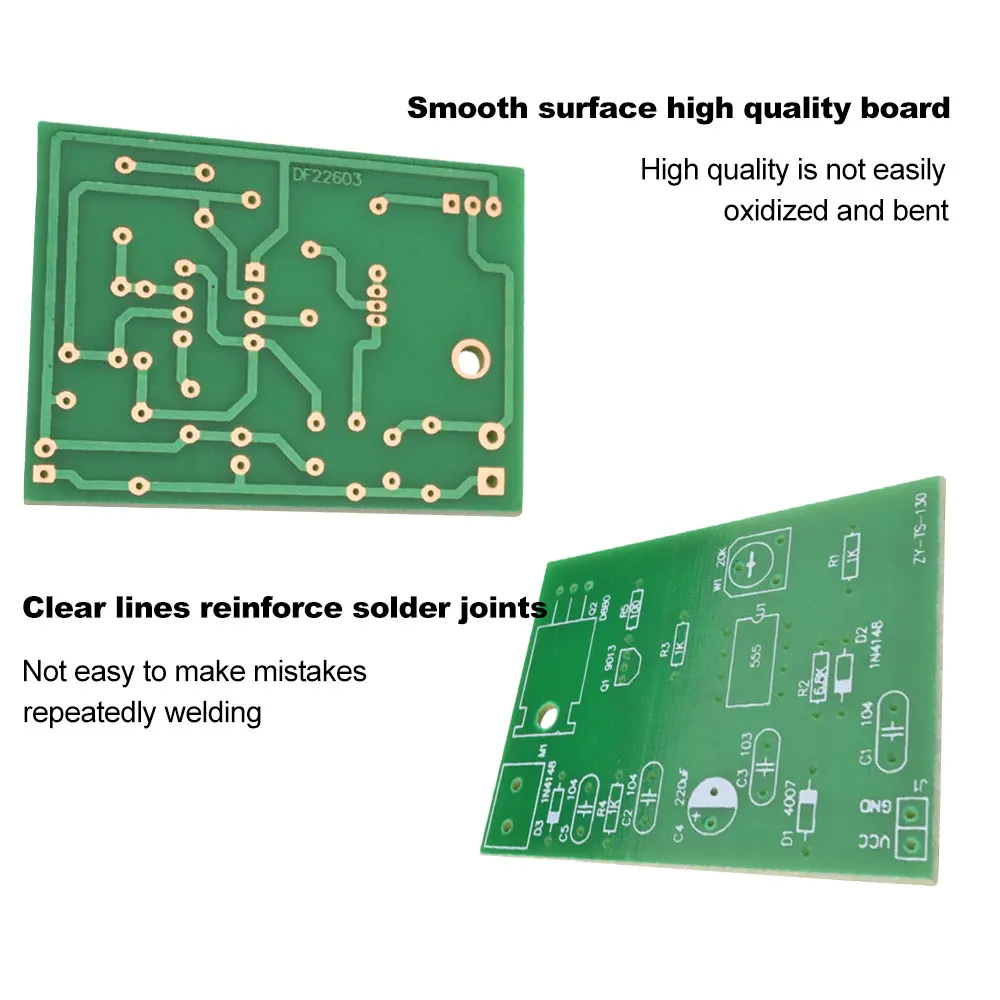

5. PCB board has clear lines, reinforced solder joints, not easy to make mistakes, and can be soldered repeatedly

Product parameters:

Power supply voltage: DC4.5V

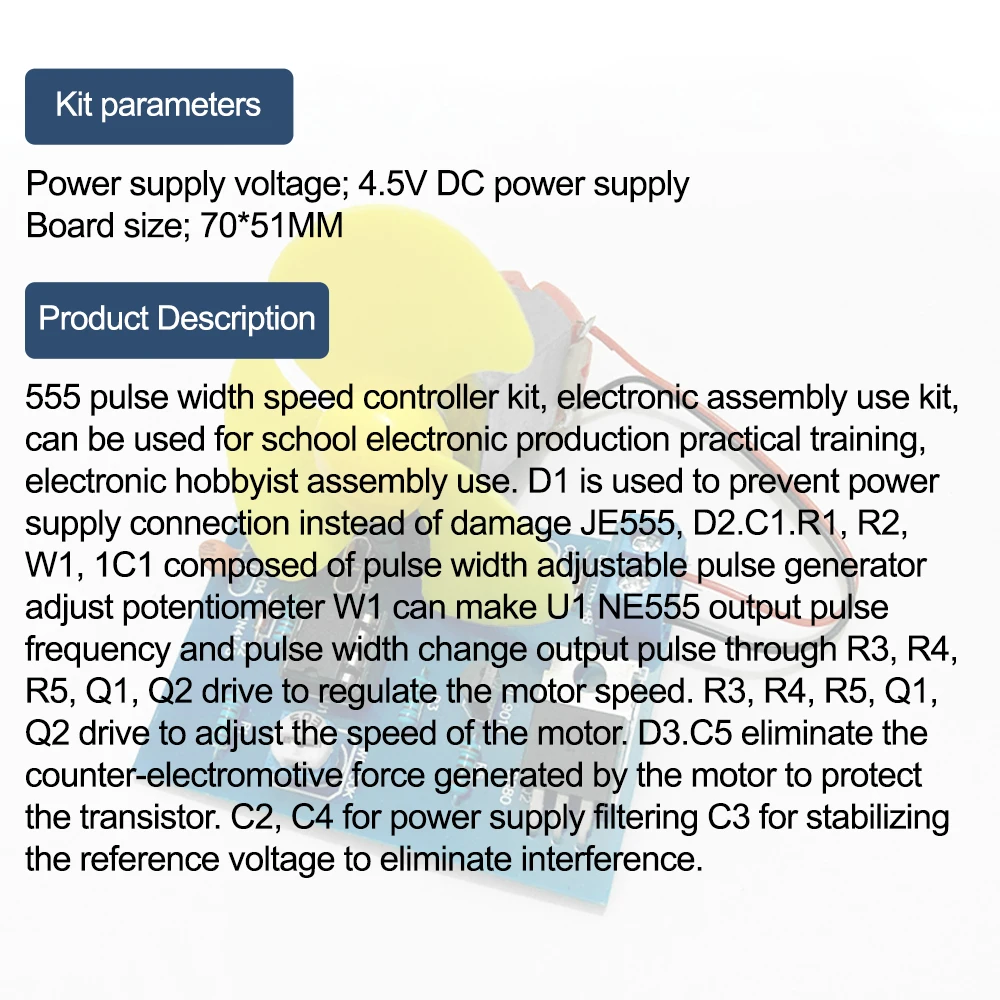

Product Description:

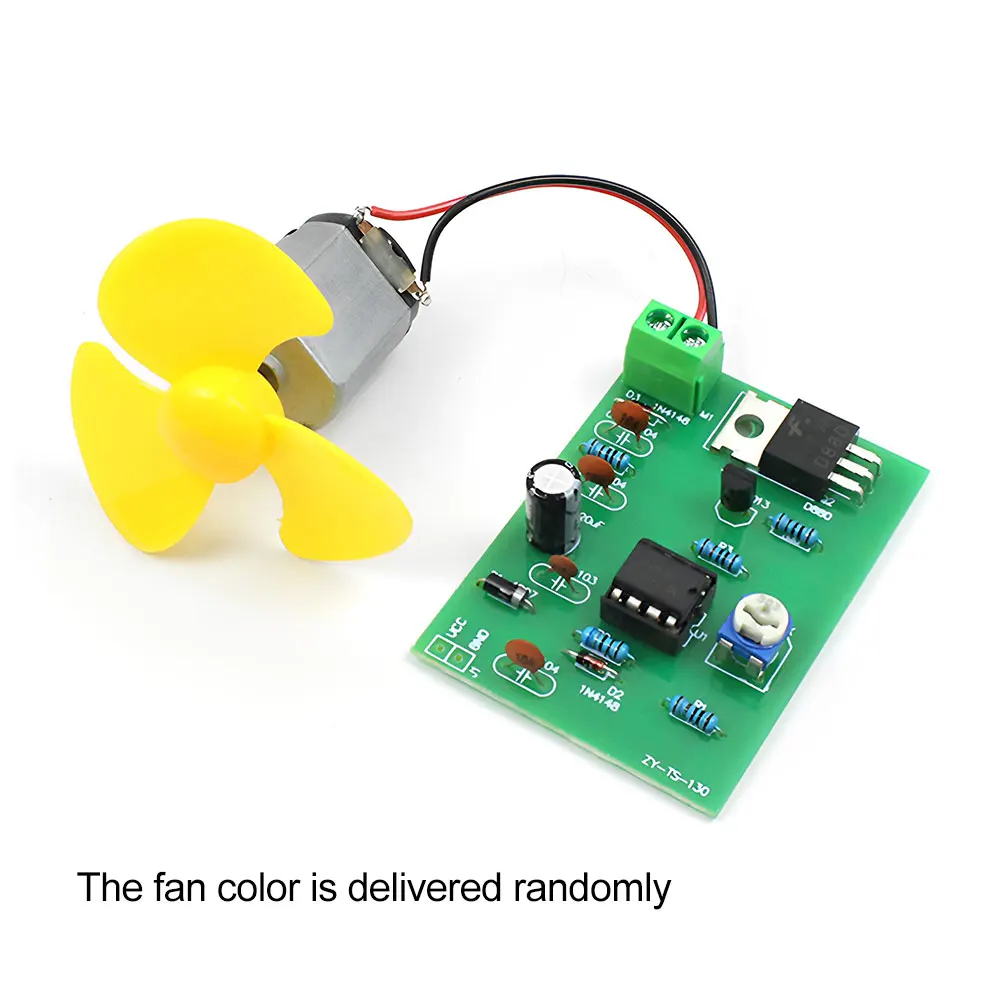

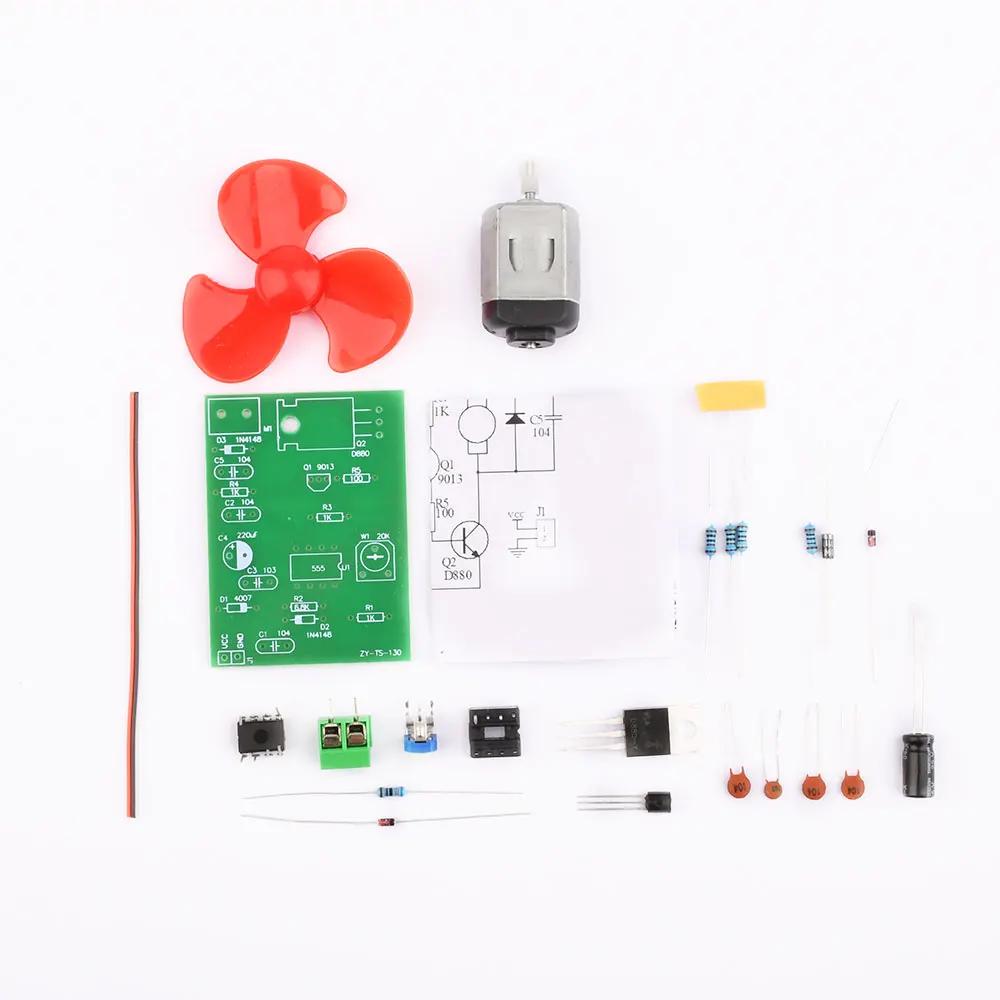

555 pulse width speed controller kit, electronic assembly and use kit, can be used for electronic production training in schools, assembly and use for electronic enthusiasts.

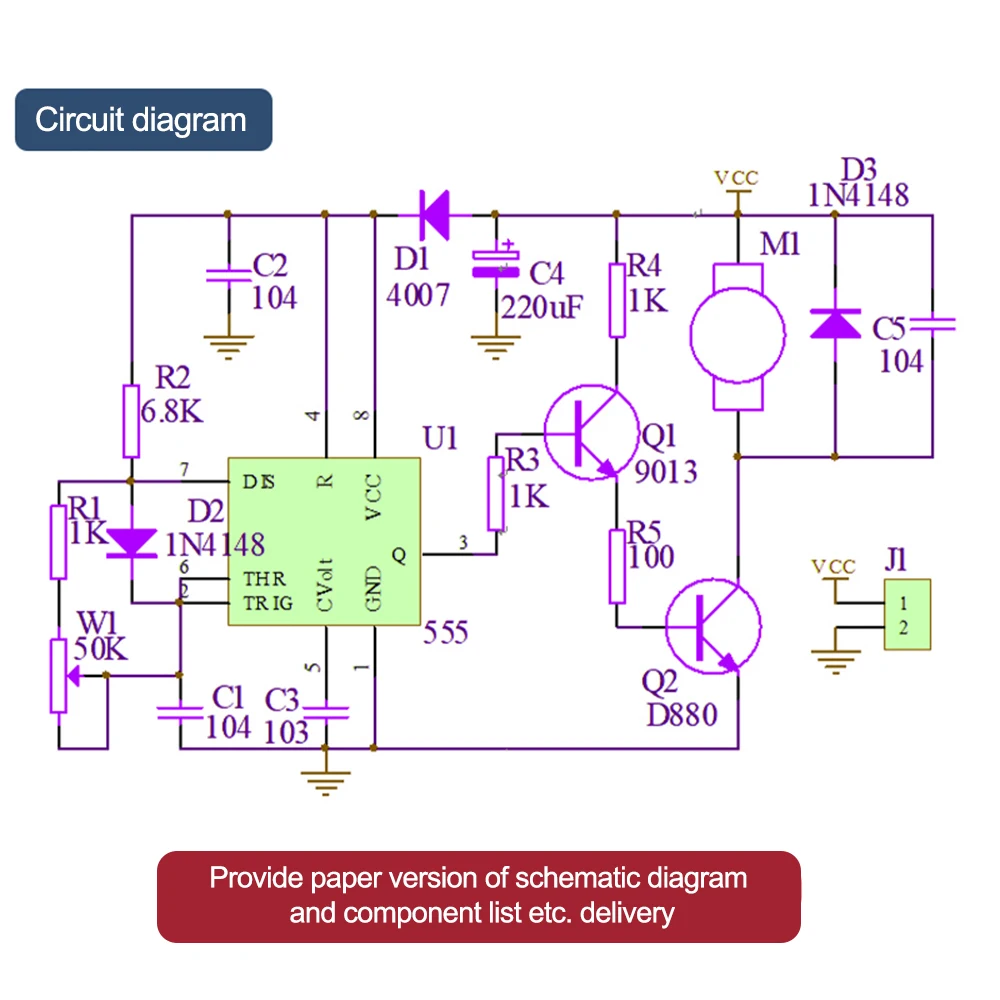

D1 is used to prevent damage to JE555, D2, C1, R1, R2, w1, and 1C1 to form a pulse generator with adjustable pulse width. Adjusting potentiometer W1 can change the pulse frequency and pulse width output by U1 NE555. The output pulse passes through R3 , R4, R5, Q1, Q2 drive to adjust the speed of the motor. D3 and C5 eliminate the counter electromotive force generated by the motor to protect the triode. C2 and C4 are used for power filtering and C3 is a stable reference voltage to eliminate interference.

Shipping list:

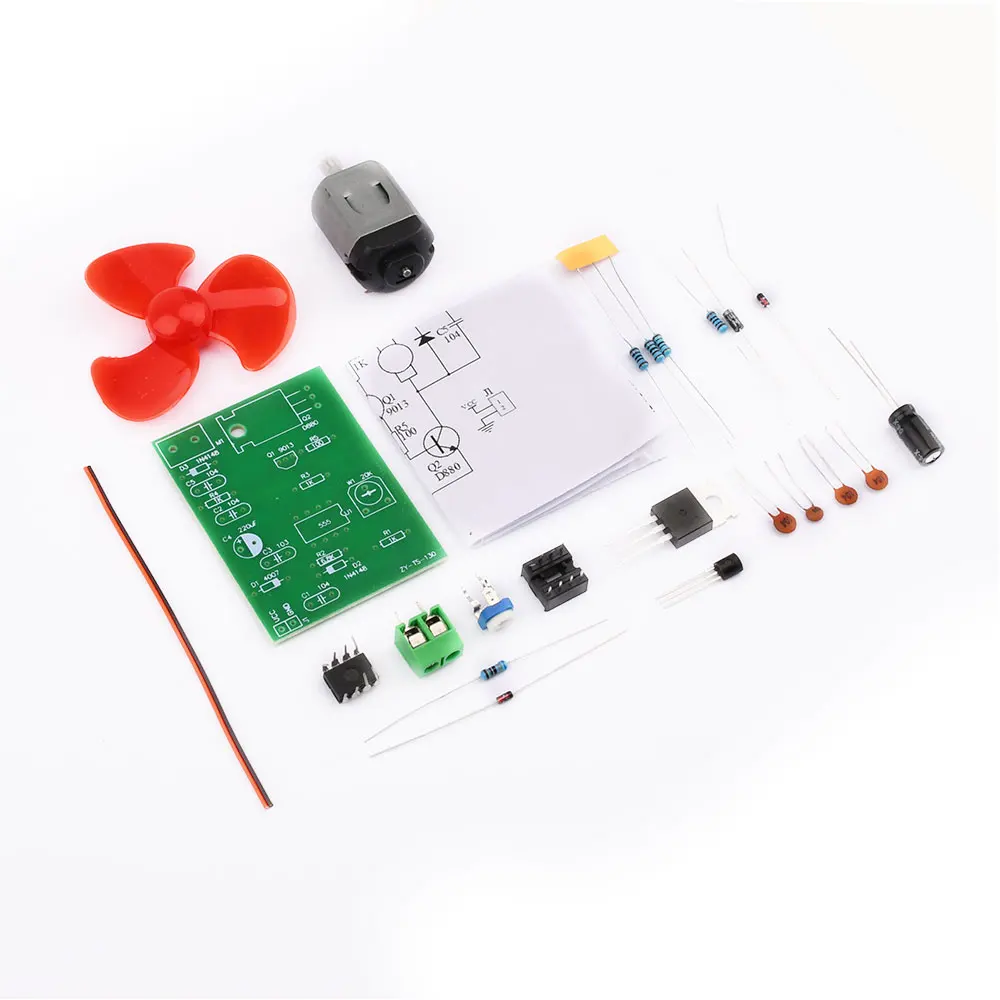

DIY Parts X1
