説明
SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: No
Barcode: No
Brand Name: Auloda
Camera Mount Type: Fixed Camera Mount,other
Certification: CE
Charging Time: 30 minutes
Charging Voltage: 14.8V
Control Channels: 8 CHANNELS
Controller Battery: No include
Controller Mode: MODE1,MODE2
Dimensions: Wheelbase: 208mm
Drone Weight: 280g
Equipped with Aerosol Spray System/Equipment Capacity: No
Features: other
Flight Time: <5
Hign-concerned Chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Carbon Fiber,Plastic,Metal
Model Number: GEPRC Racer FPV Racing Drone
Motor: Brushless Motor
Operator Skill Level: Beginner,Intermediate,expert
Origin: Mainland China
Package Includes: Original Box,Operating Instructions
Power Source: Electric
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: 1000 meters
State of Assembly: Ready-to-Go
Takeoff Weight: 100-200g
Transit Time (Days): 4 minutes
Type: HELICOPTER
Video Capture Resolution: other
Warning: Does not contain any batteries
Warranty: 1 month
Summary

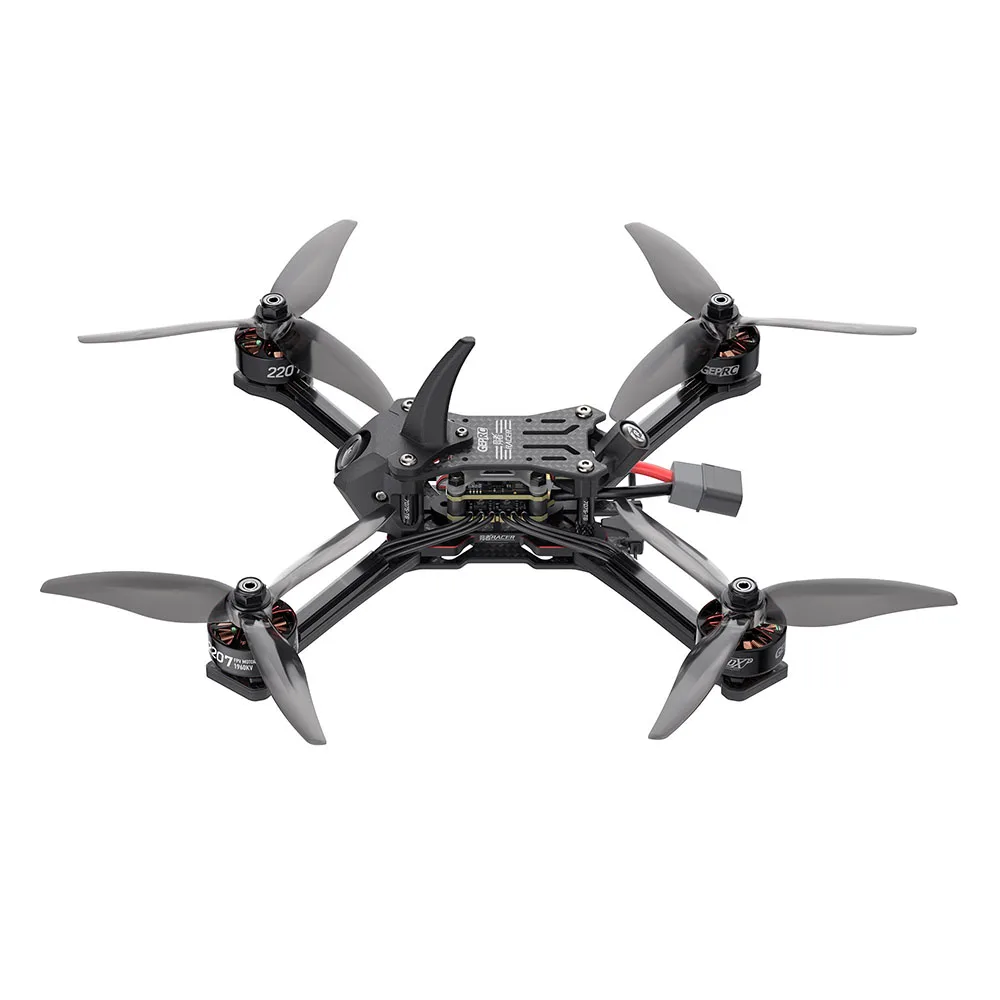

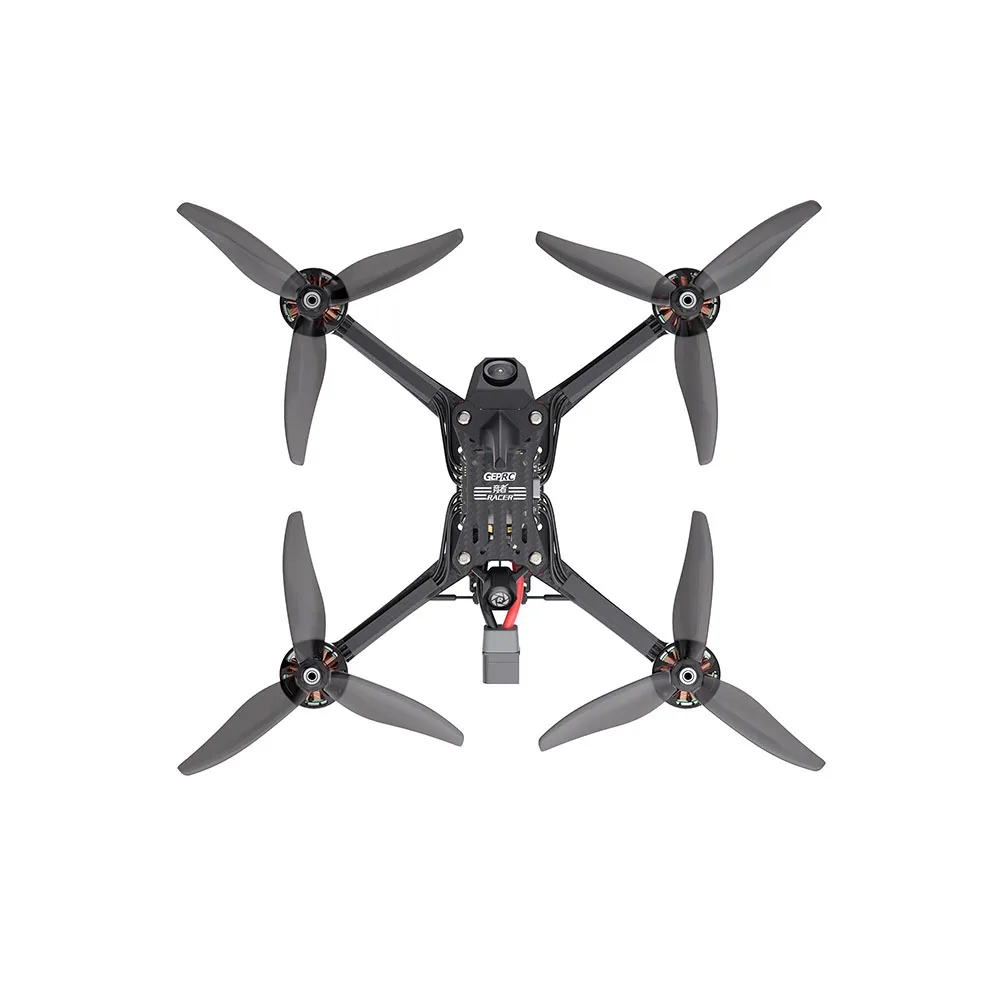

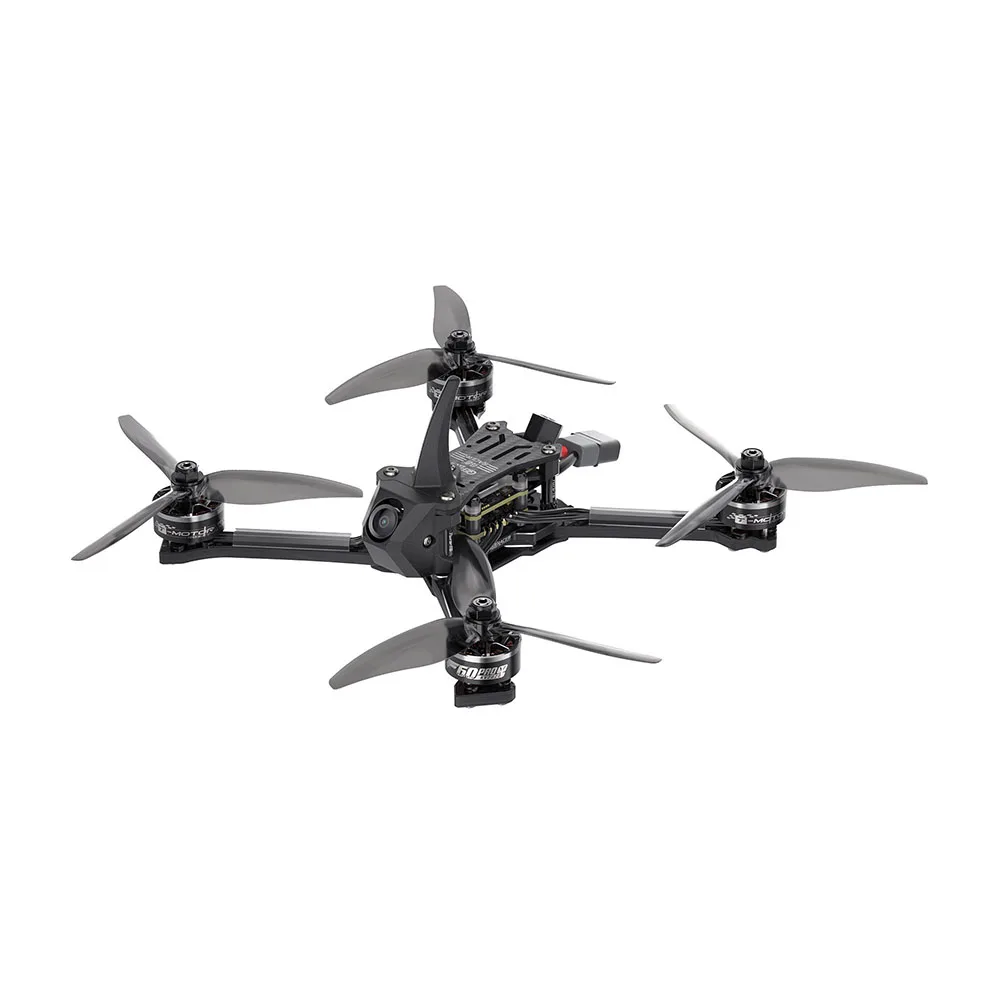

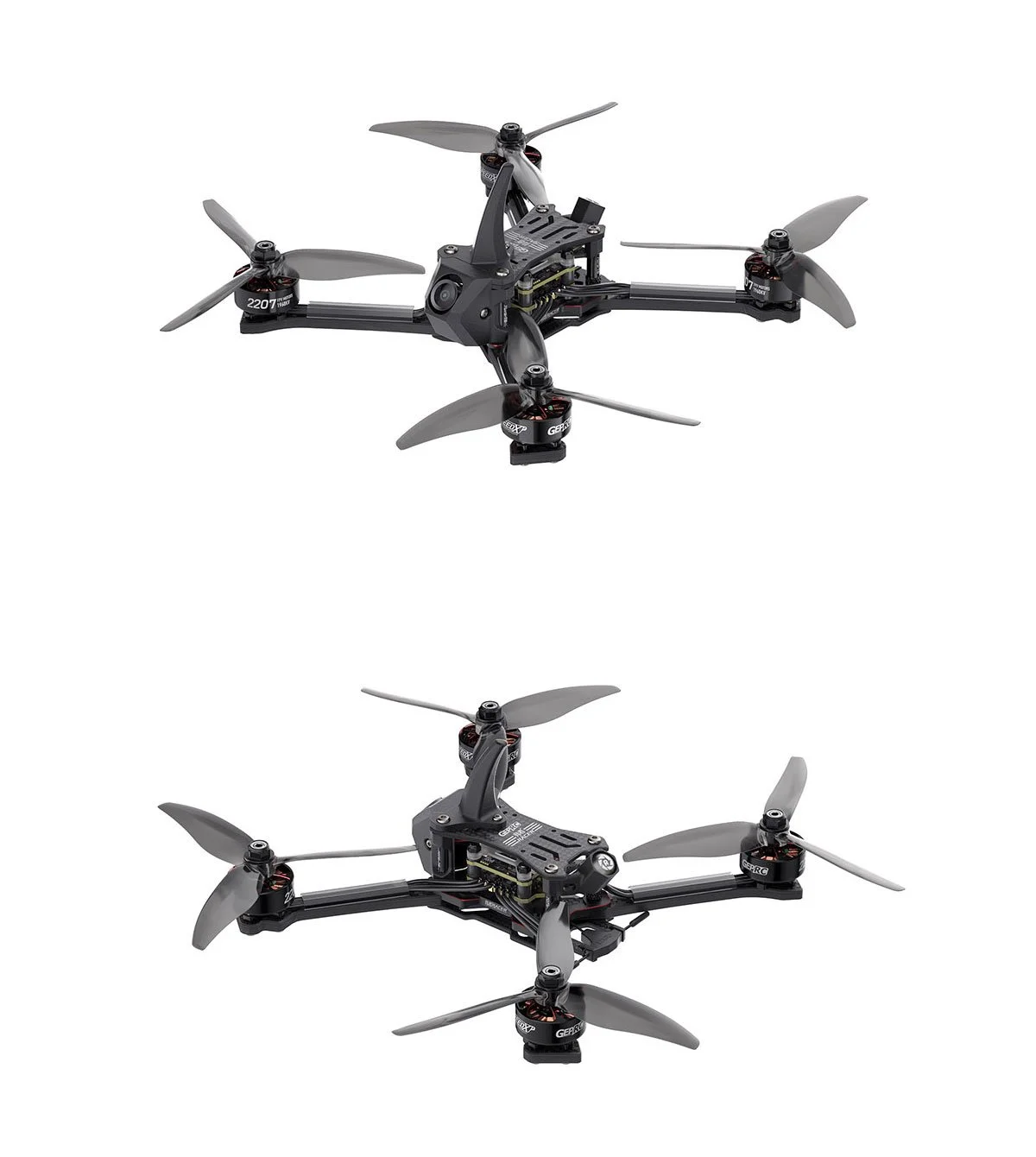

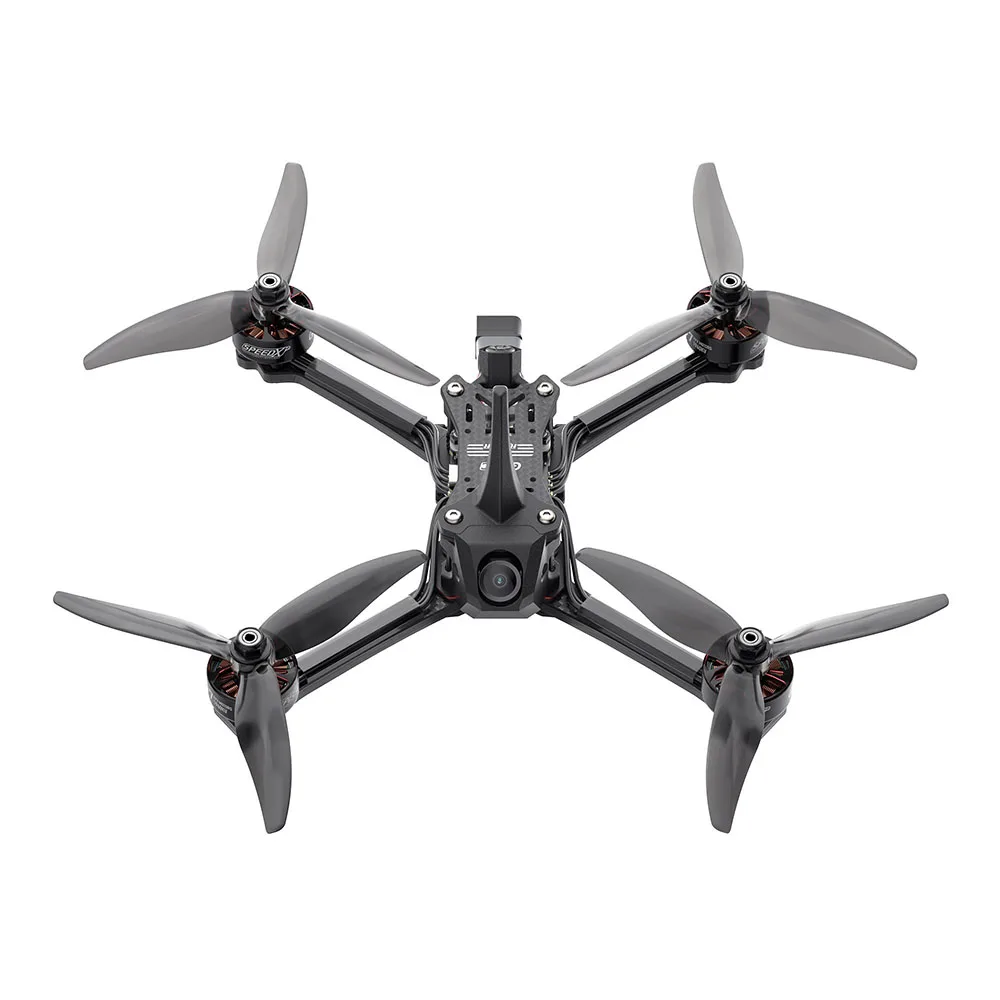

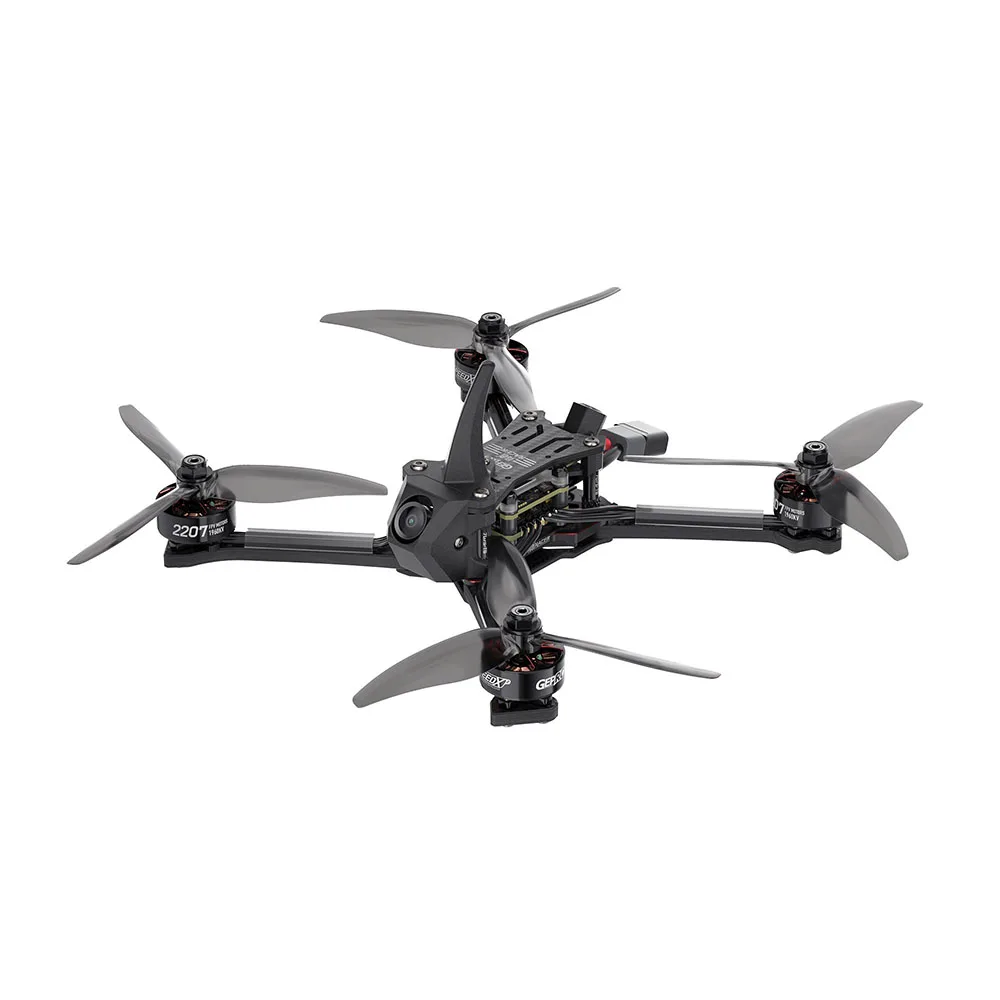

When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing FPV specially designed for the competition. The GEPRC Racer was thus born.

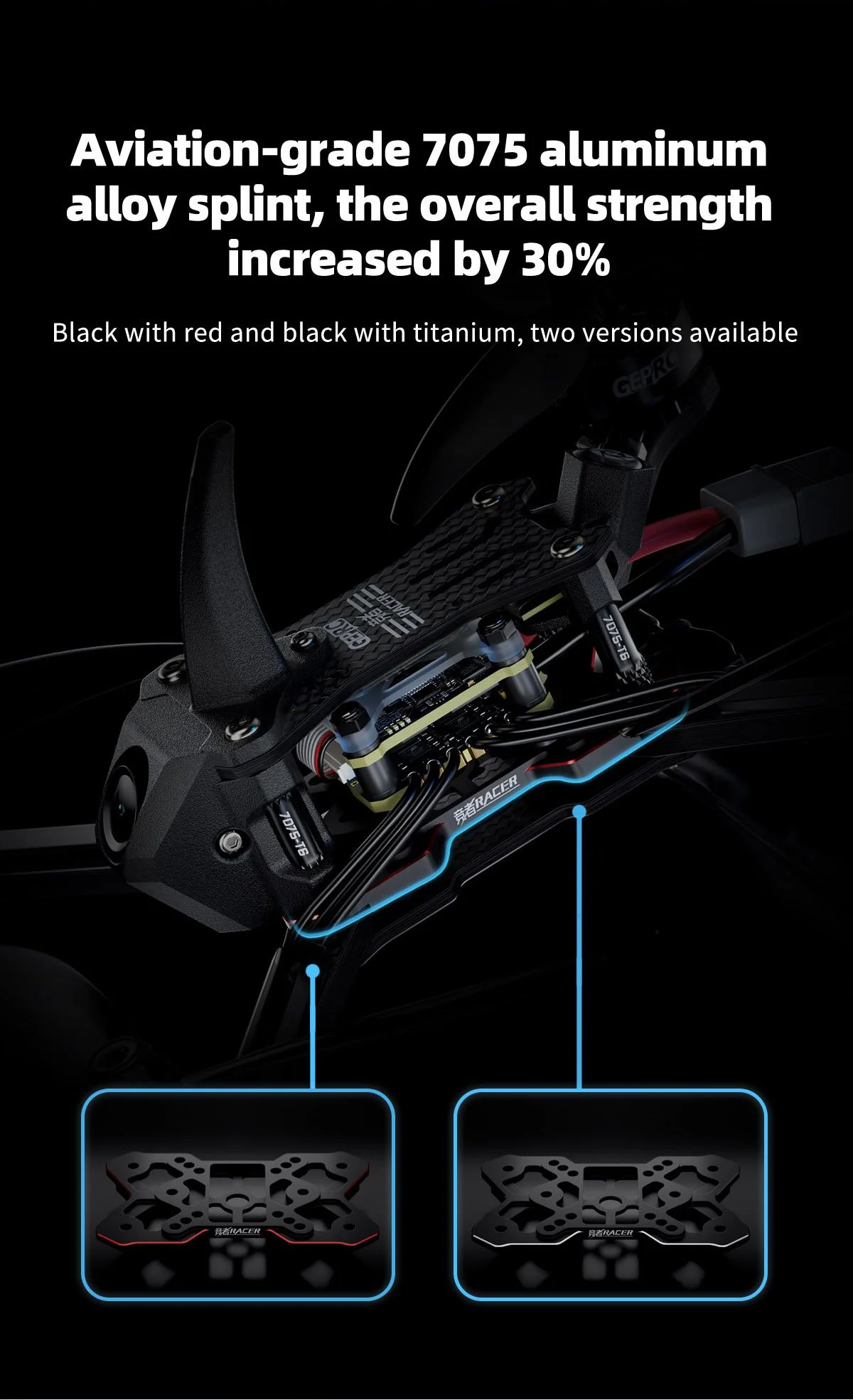

The main structure of Racer is constructed with 7075-T6 aviation aluminum alloy splint combined with high-grade T700 carbon plate, the overall structure is light and stable. The flight system uses GEPRC’s new TAKER F722 E55A stack with two motor versions: GEPRC SPEEDX2 2207 2050KV and TMOTOR F60PROV 2020KV professional racing motor. The overall performance has strong explosive power.
The Racer has been carefully designed by the GEPRC team, and the flying feel and response speed have reached the best state.

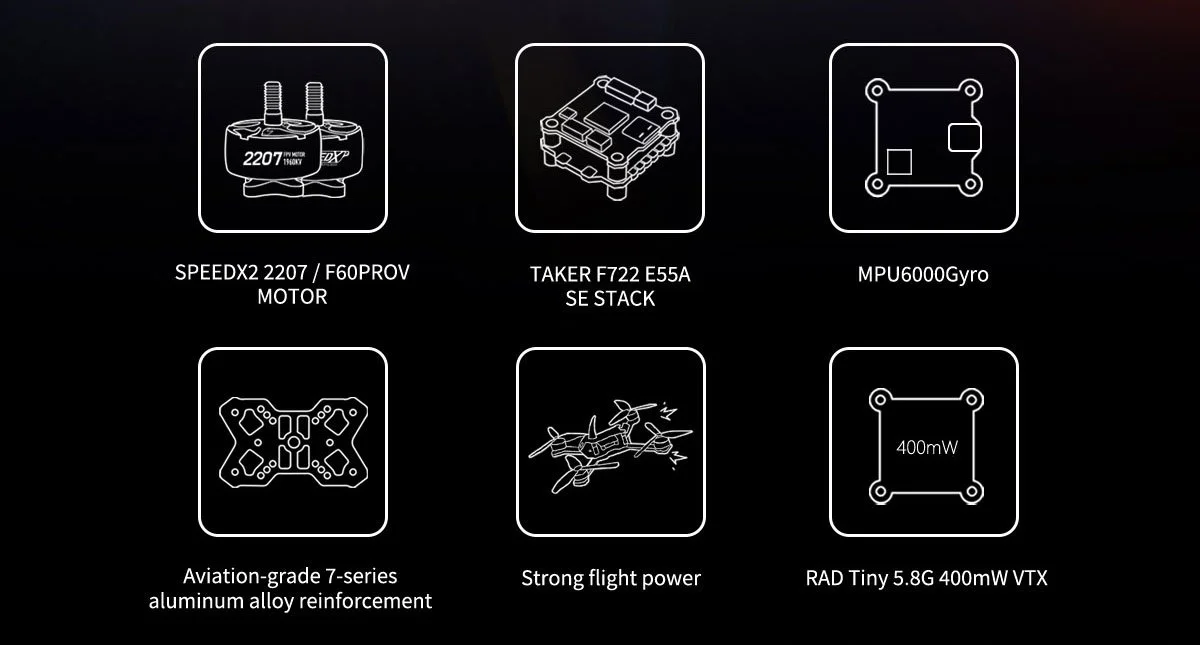

Feature

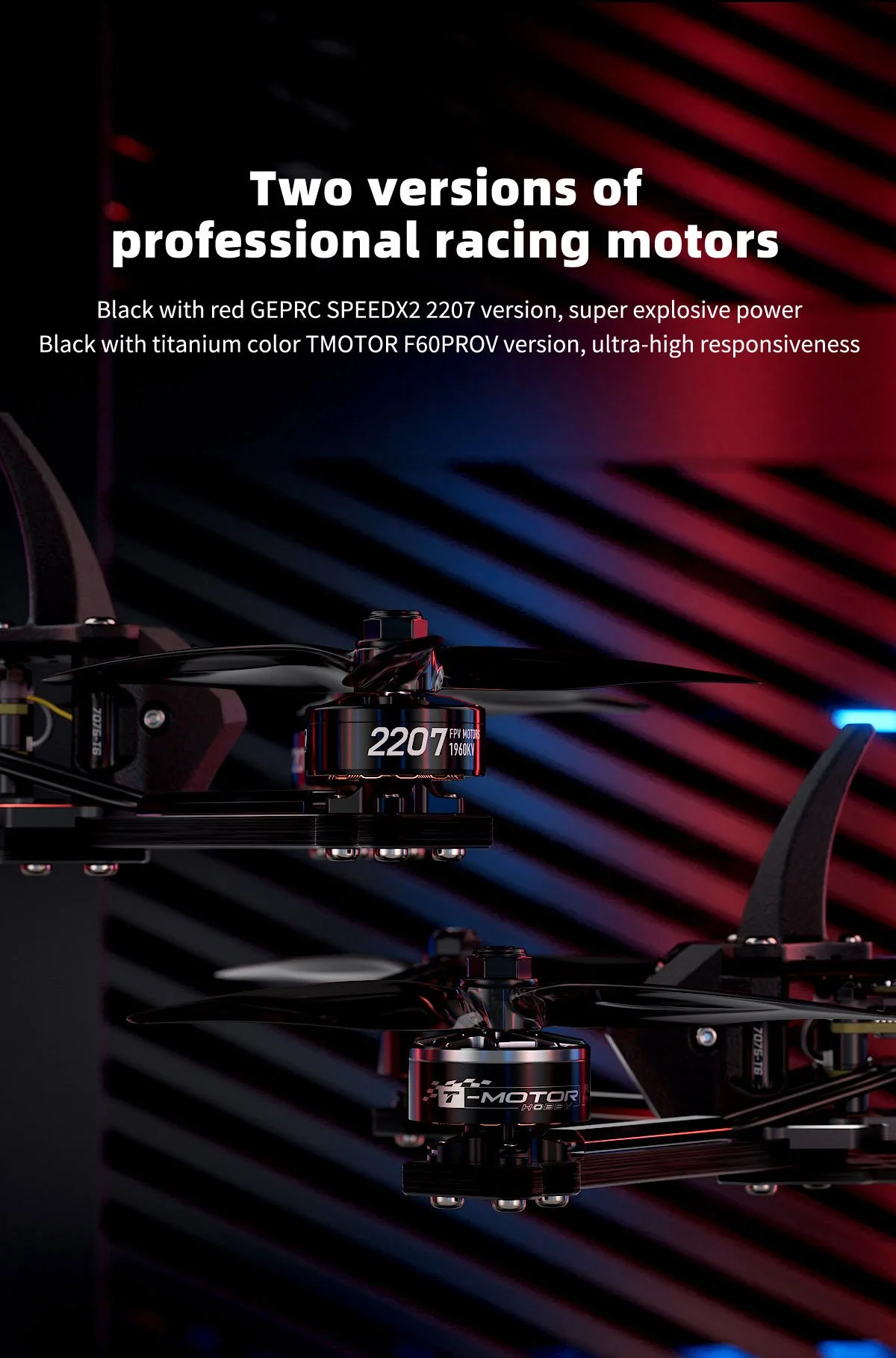

1. GEPRC SPEEDX2 2207 2050KV/TMOTOR F60PROV 2020KV two professional racing motor versions are optional.
2. The flight performance responds quickly, and the hand feels light and fast.
3. Made of high hardness T700 carbon fiber board material.
4. Design the anti-turtle shark fin support.

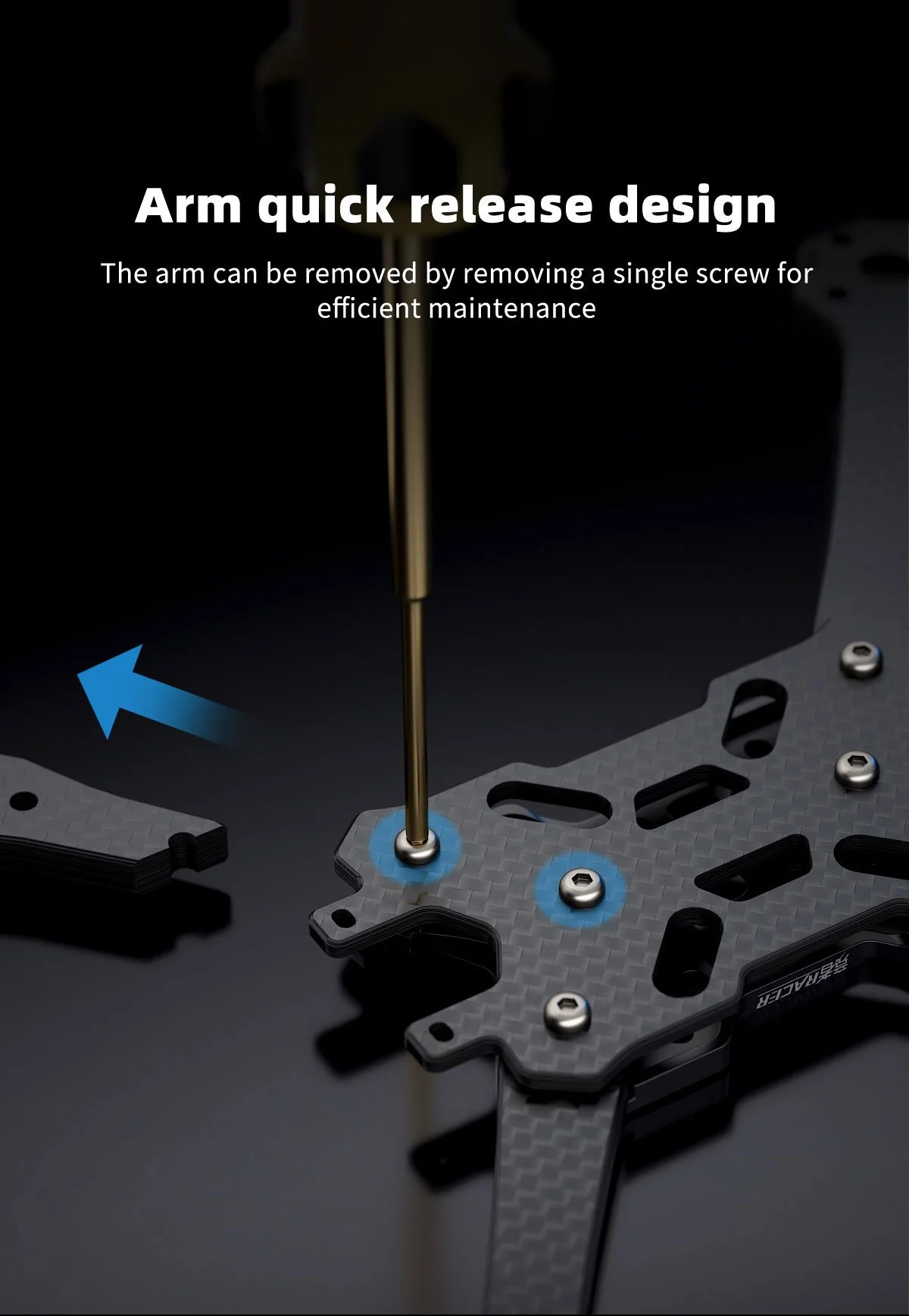

5. The quick-release design of the machine arm is convenient for the maintenance of the fryer.

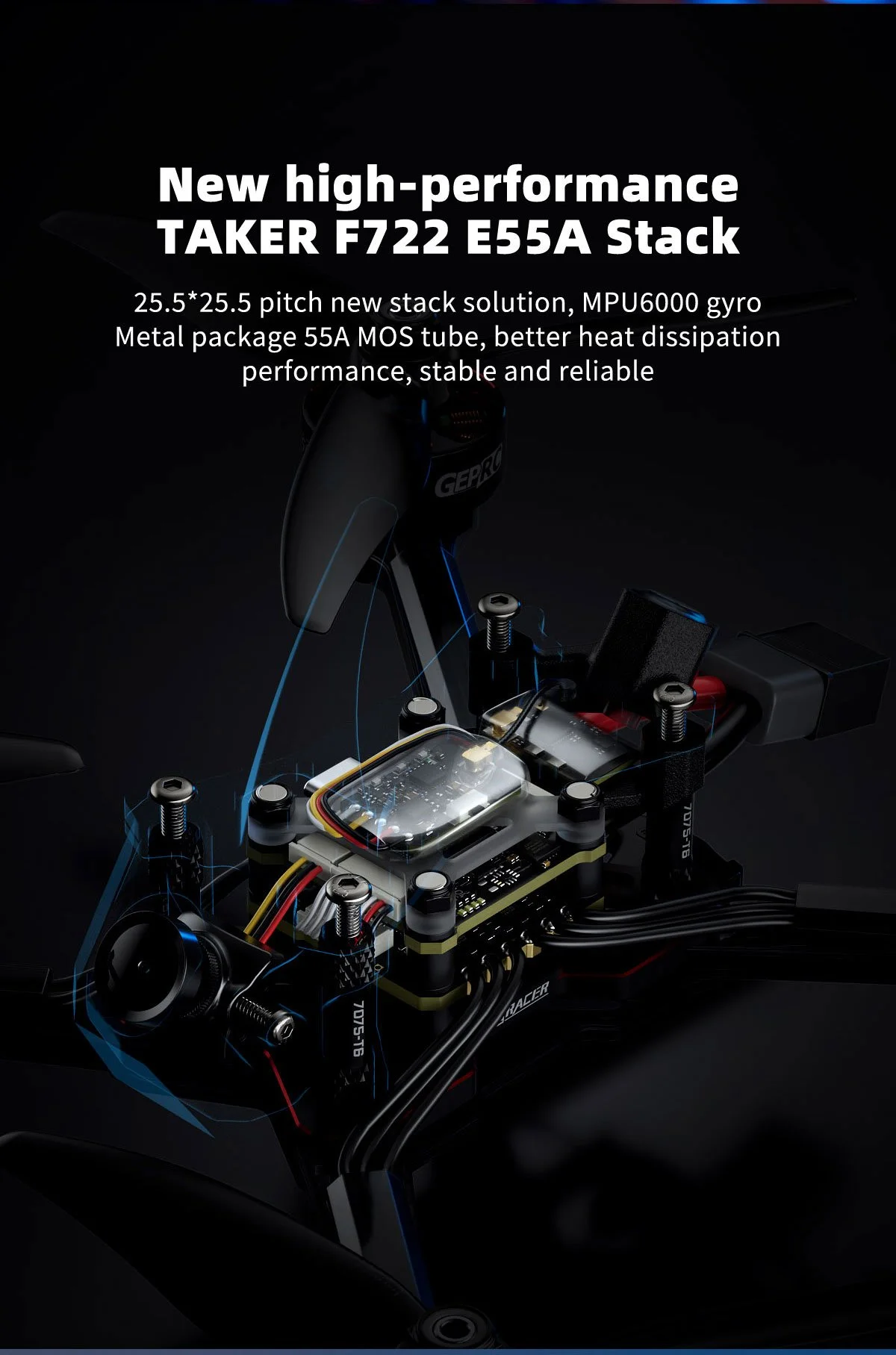

6. Use GEPRC’s new TAKER F722 E55A high-performance stack.
7. Choose MPU6000 gyro.

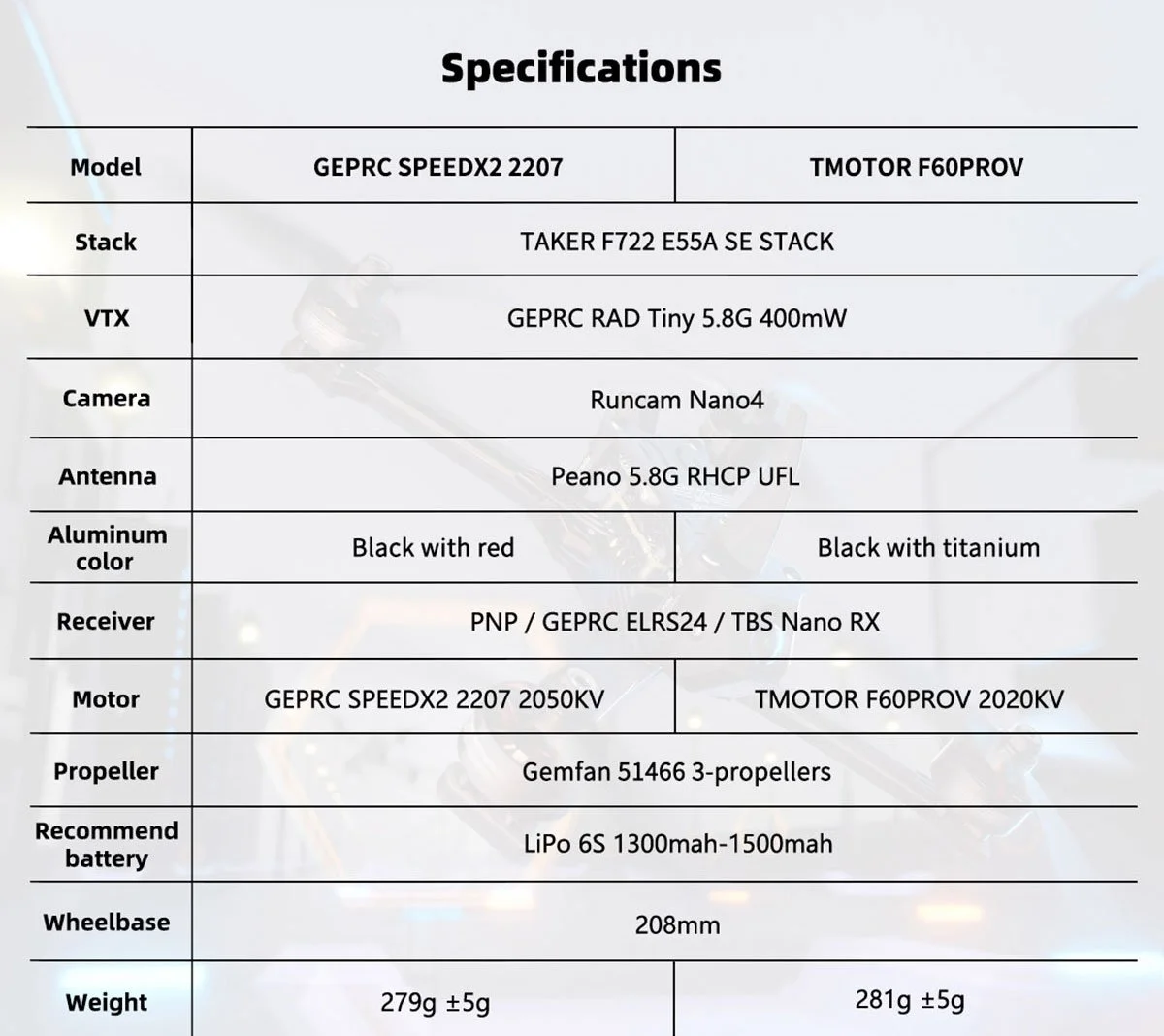

Specifications
GEPRC SPEEDX2 2207 motor version
Model: Racer FPV

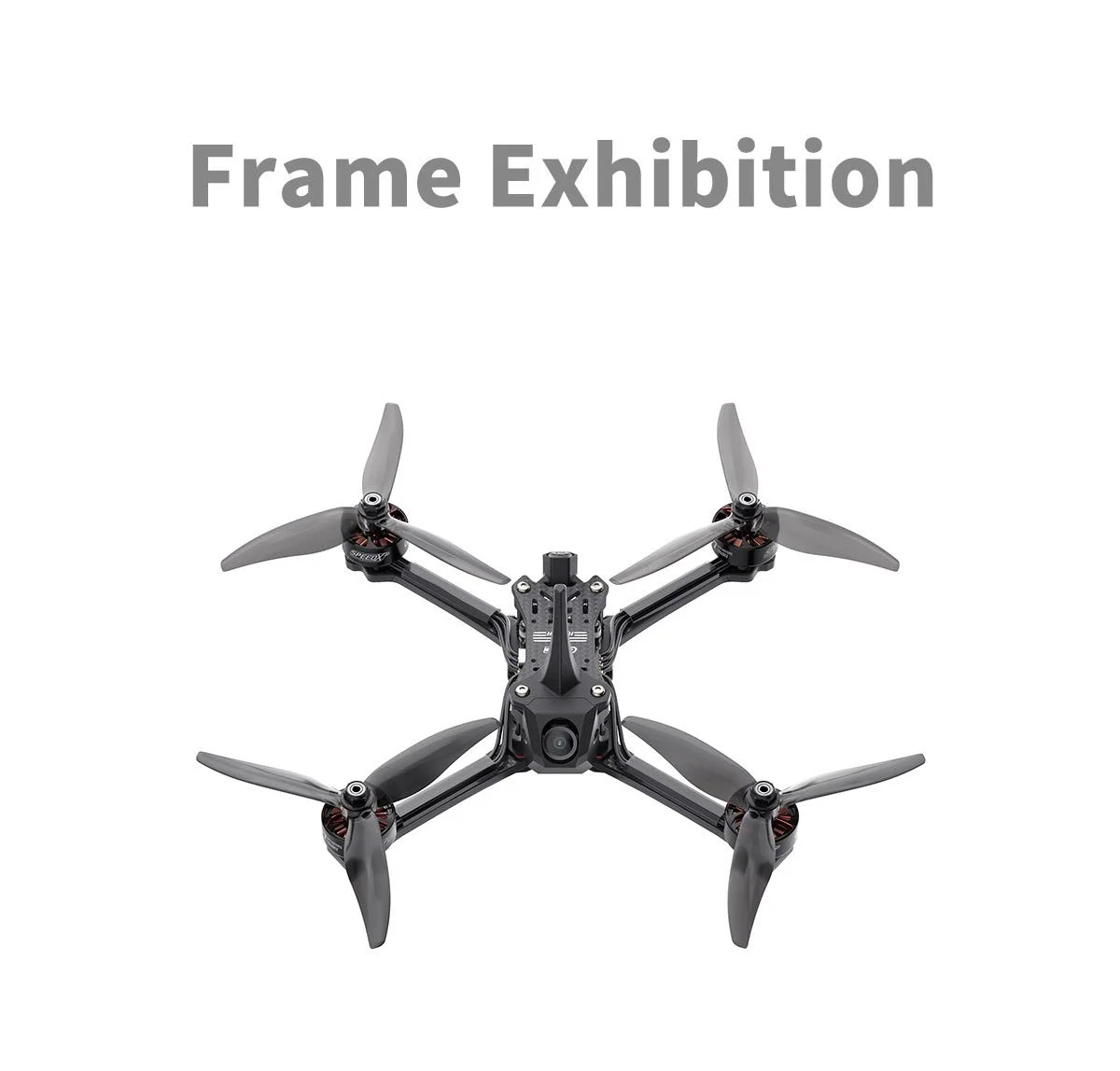

Frame: GEP-Racer Frame
Wheelbase: 208mm
Top plate: 2mm
Bottom plate: 2mm
Arm plate: 5mm
Aluminum splint plate color: black with red
FC: TAKER F722 SE
ESC: TAKER E55A 32Bit 4IN1
MCU: STM32F722RET6
Gyro: MPU6000
OSD: AT7456E
VTX: GEPRC RAD Tiny 5.8G 400mW
Camera: Runcam Nano4
Antenna: Peano 5.8G RHCP UFL
Motor: SPEEDX2 2207 2050KV
Propeller: Gemfan 51466 x3
Weight: 279g ± 5g
Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
Recommended battery: Lipo 6S 1300-1500mah
TMOTOR F60PROV motor version
Model: Racer FPV
Frame: GEP-Racer Frame
Wheelbase: 208mm
Top plate: 2mm
Bottom plate: 2mm
Arm plate: 5mm
Aluminum splint plate color: Black with Titanium
FC: TAKER F722 SE
ESC: TAKER E55A 32Bit 4IN1
MCU: STM32F722RET6
Gyro: MPU6000
OSD: AT7456E
VTX: GEPRC RAD Tiny 5.8G 400mW
Camera: Runcam Nano4
Antenna: Peano 5.8G RHCP UFL
Motor: F60PROV 2020KV
Propeller: Gemfan 51466 x3
Weight: 281g ± 5g
Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
Recommended battery: Lipo 6S 1300-1500mah

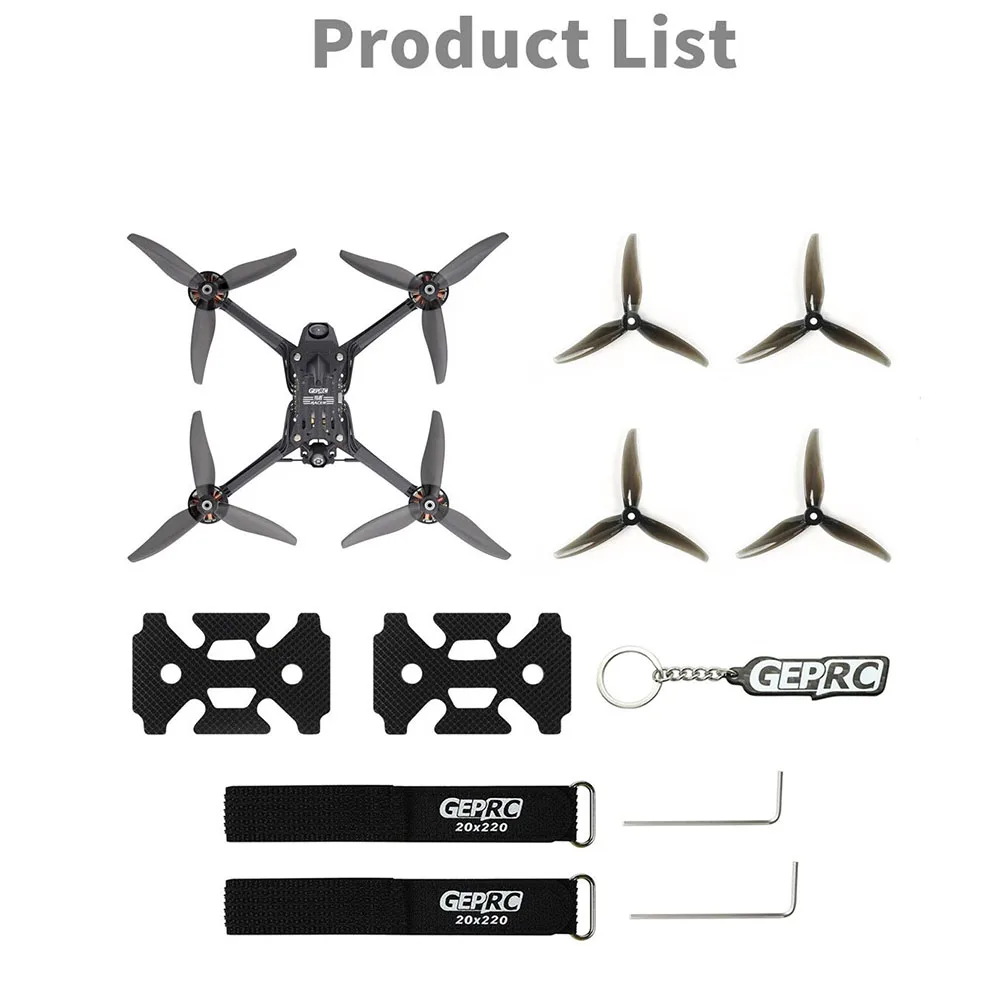

Includes
1 x RACER FPV
2 x Gemfan 51466 propellers（pair）
2 x M20*250mm battery tie
2 x Battery anti-skid pads
1 x Spare screw bag
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x M8 wrench
