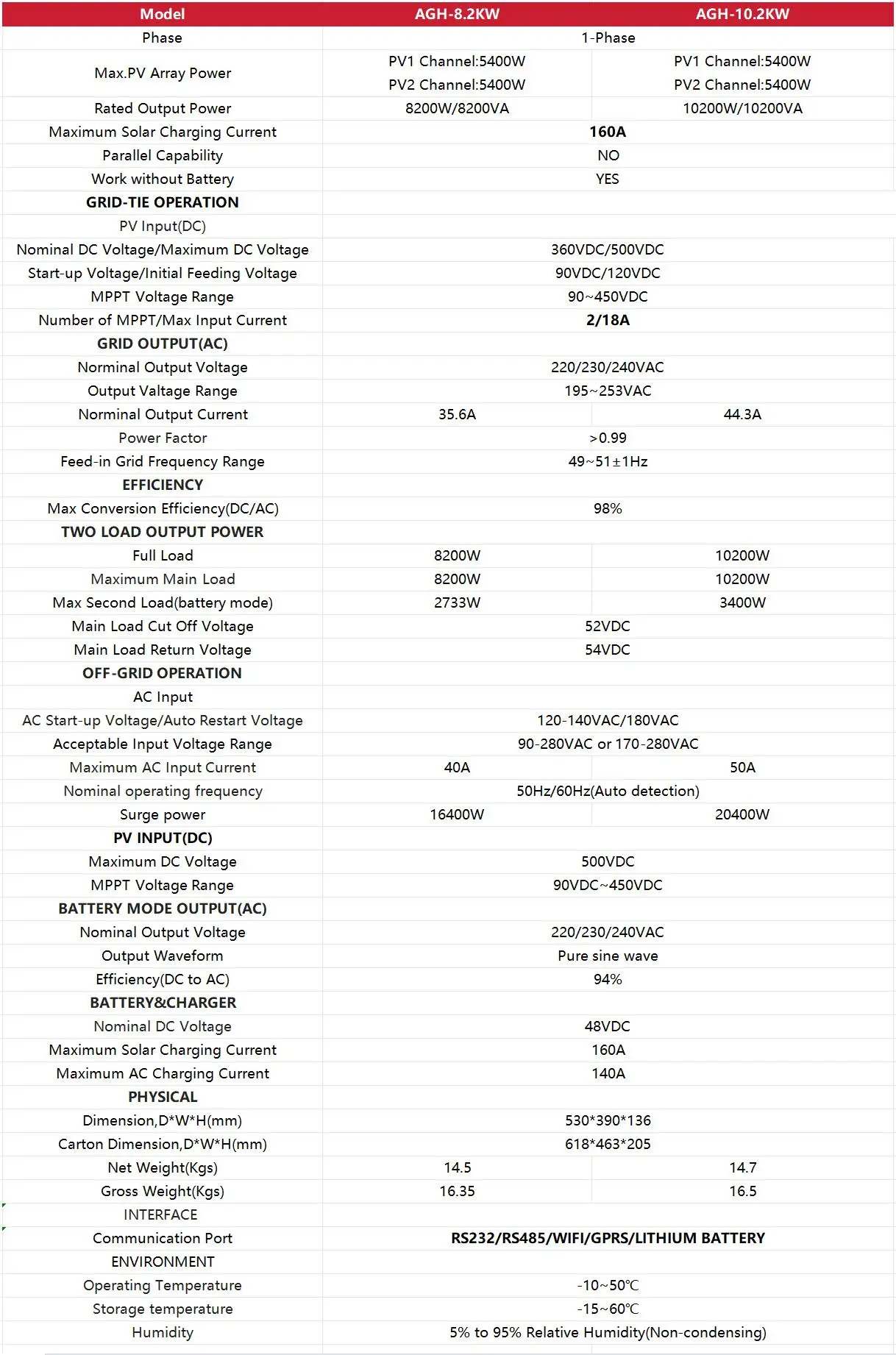

SPECIFICATIONS
Brand Name: daxtromn
Certification: CE
Hign-concerned Chemical: None
Is Smart Device: No
Max Conversion Efficiency(DC/AC): 98%
Maximum AC Input Current: 50A
Maximum PV Input Power: 10200W
Maximum Solar Charging Current: 160A
Model Number: AGH-10.2KW-PLUS
Nominal DC Voltage/Maximum DC Voltage: 360VDC/500VDC
Nominal operating frequency: 50/60Hz
Norminal Output Current: 44.3A
Number of MPPT/Max Input Current: 1/18A and 2/18A
Origin: Mainland China
Output Current: 160A
Output Frequency: 50/60 HZ Auto sensor
Output Power: 1 – 200KW
Output Type: DUAL
Phase: 1-Phase
Rated Output Power: 10200W/10200VA

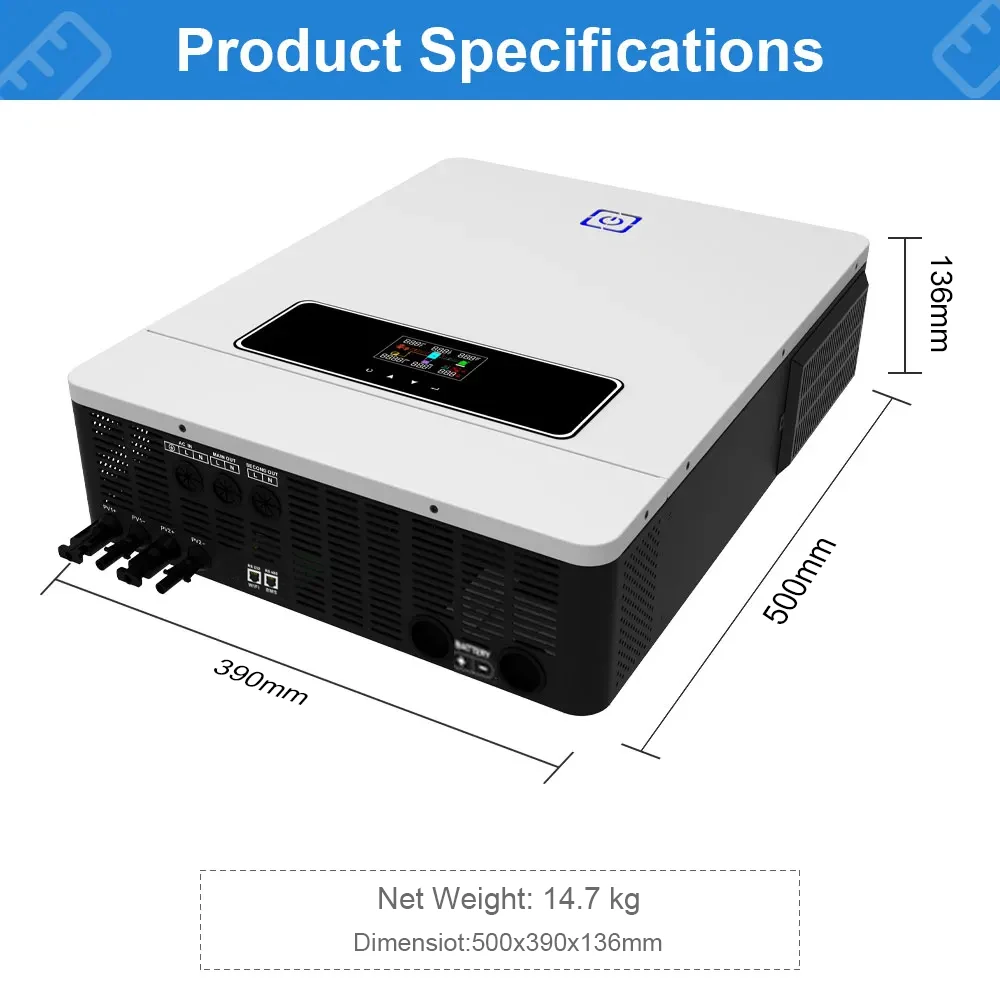

Size: 625*470*205mm
Start-up Voltage/Initial Feeding Voltage: 90VDC/120VDC
Weight: 16.5

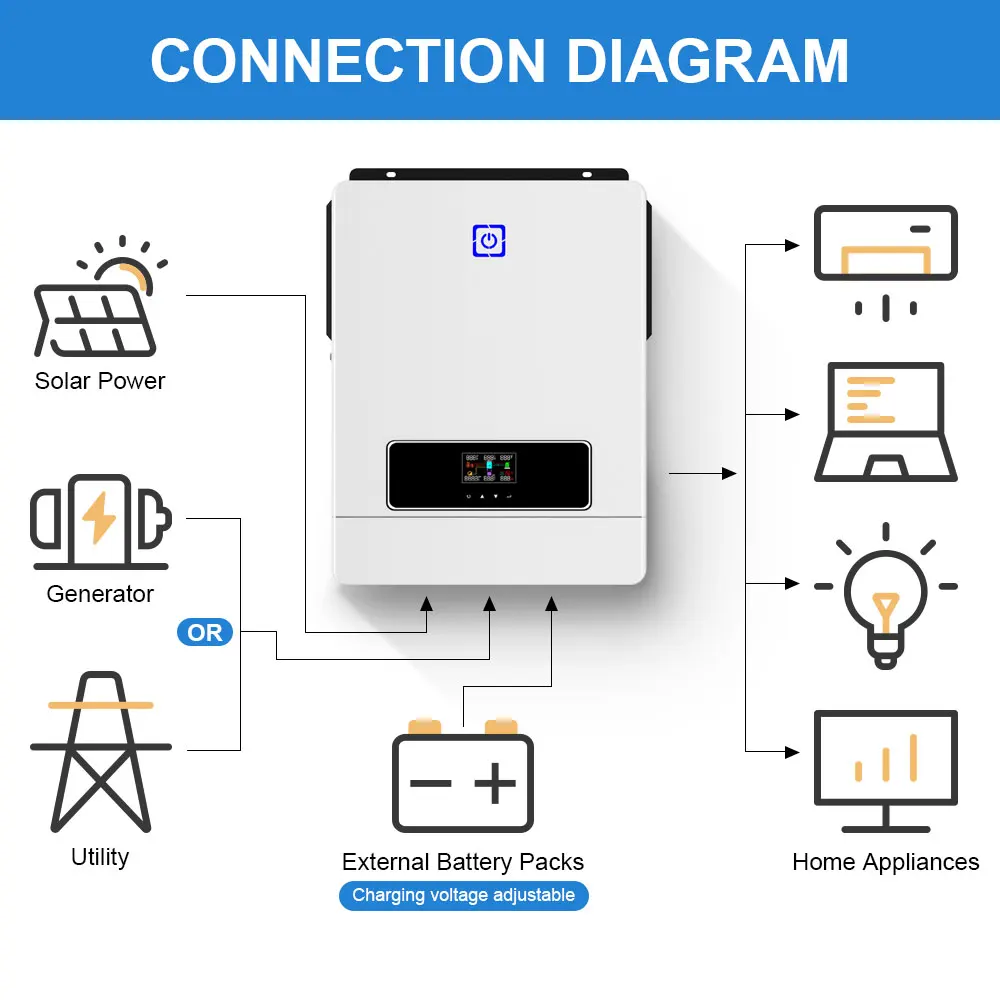

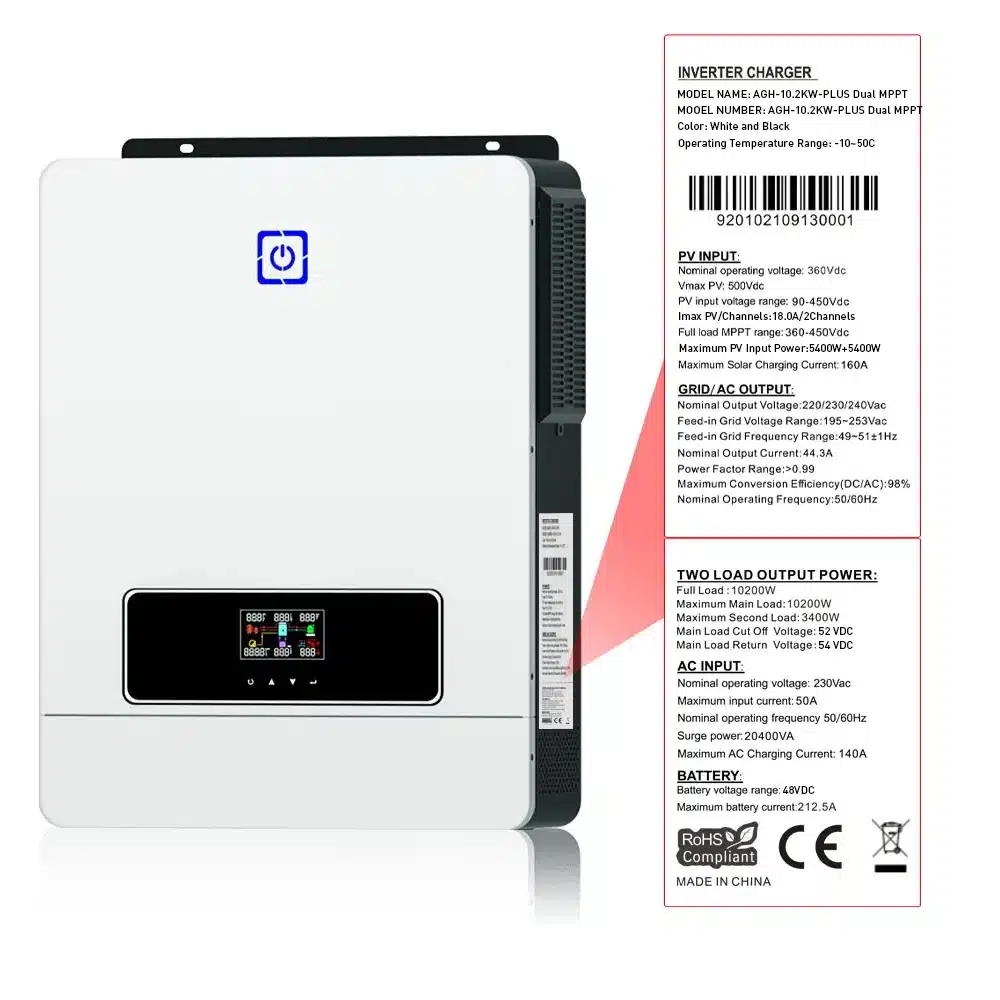

Daxtromn 10kw 10.2KW On/Off grid Solar Hybrid Inverter DC48V to AC 230V Output Built-in 160A Charge Controller 2 PV Dua AC out
Features
1.Pure sine wave solar inverter(on/off Grid)
2.Output power factor 1.0
3.WIFI available for lOS and Android
4.Inverter running without battery
5.One-key restoration to factory Settings
6.Built-in Lithium battery automatic activation
7.Built-in 160A MPPT solar charger
8.High PV input voltage range(90~450VDC)
9.Built-in anti-dusk kit for harsh environment
10.Smart battery charge design to optimize battery life

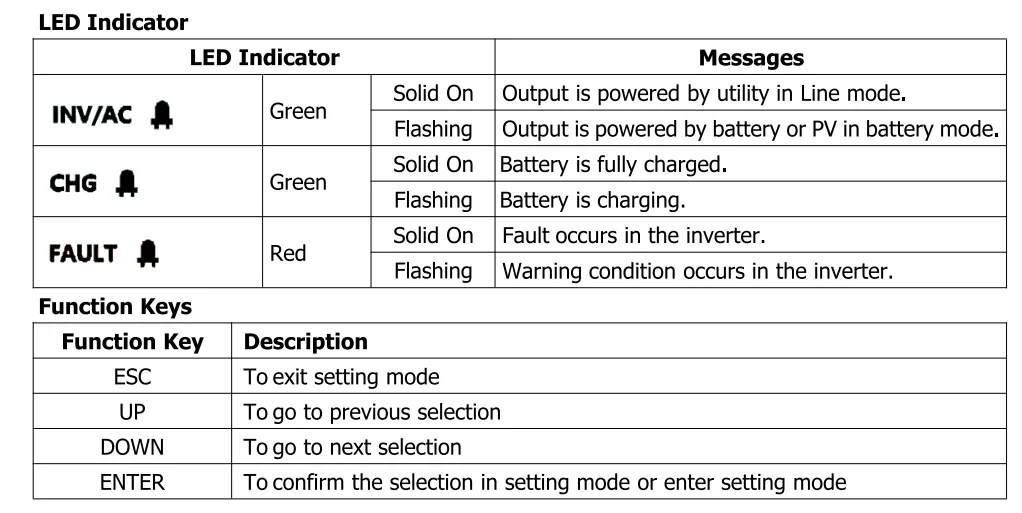

11.Touch button
12.Dual output 2 AC Output function
What is 2AC out function?
when there is no Main/AC IN/GRID INPUT ,and the battery lower than the setted voltage .
the main AC out will cut off automatically, the battery or pv only offer power for the second AC out
What is the BMS model?
Difference between BMS and without BMS:
If the battery has BMS, after plugging in the BMS, the inverter and the battery will communicate and automatically adjust the charging voltage cut-off voltage and other parameters, and various parameters will be adjusted at any time according to the condition of the battery, which will be a higher level for the life of the battery and the safety of use.
The inverter and battery need to have BMS functions at the same time to communicate with each other.
Question & Answer
Q:Whats the Rated output power ?
A:Its 10200W
Q:Whats the max charge currency for battery ?
A:Its 160A
Q:Whats the MAX DC PV Input?
A:Its 500VDC

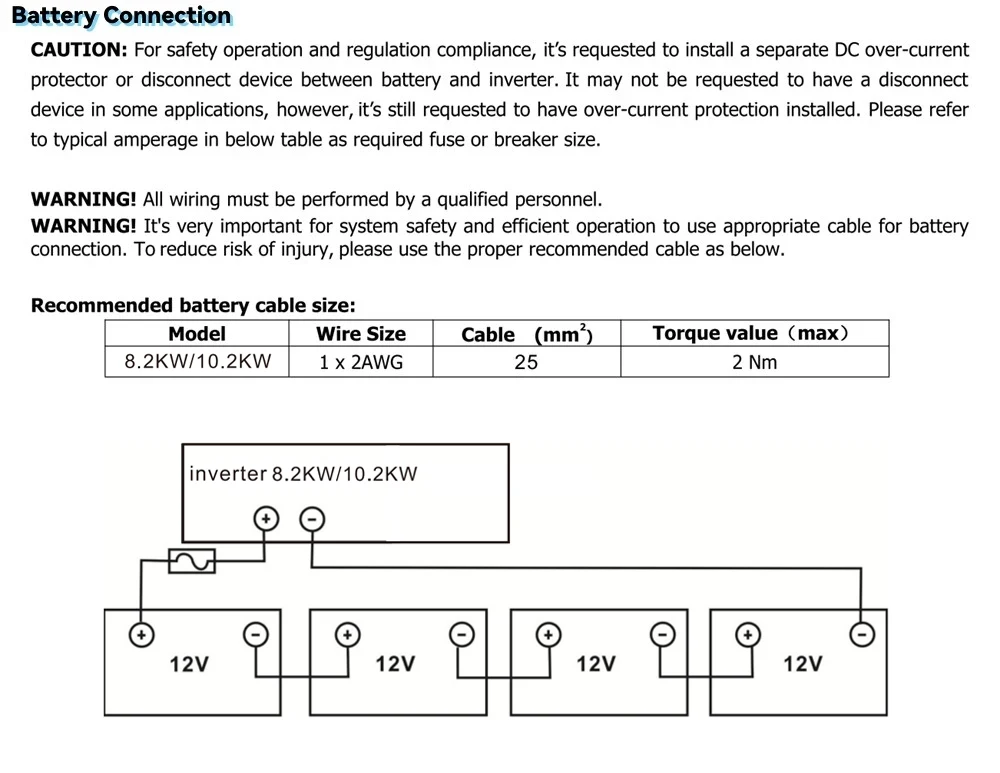

Q:How many volts of external battery use ?
A:48V
Q:Can I connect two strings of solar panels of different specifications?
A:Yes
Q:Can it support parallel or series connection?
A:No it can not support
Q:What BMS protocols are supported?
A:PACE and PYLON
Q:Whats the warranty?
A:1 Year
Q:If it has Wifi Model ?
A:Yes
Q:Do it feed the power to grid?
A:Yes,it is on/off grid solar inverter ,Real Hybrid Inverter
Q:I am a distributor, can we have long-term cooperation?
A:Yes, large projects and wholesale needs can enjoy personalized pricing.
Q:Why can't I buy inverters from your store?
A:Normally, we cannot provide accurate logistics prices for your country. If you have any needs, please feel free to contact us.

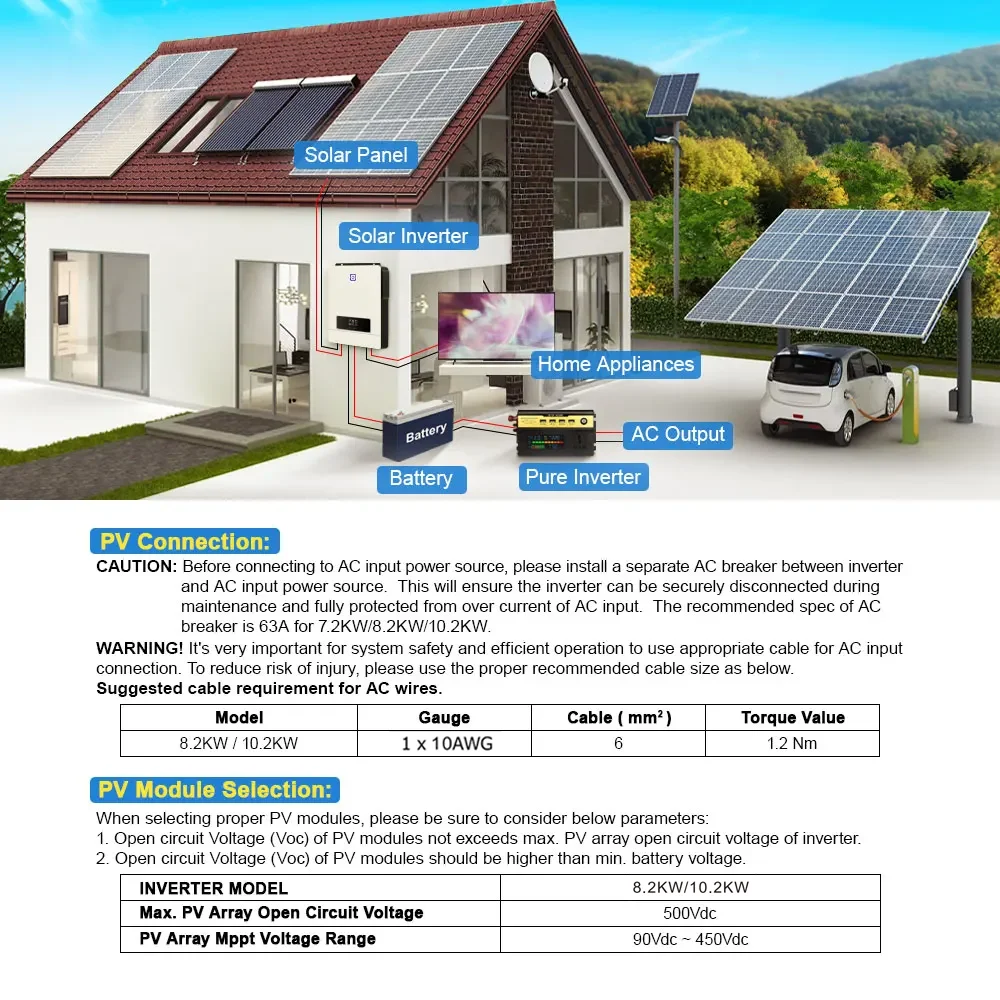

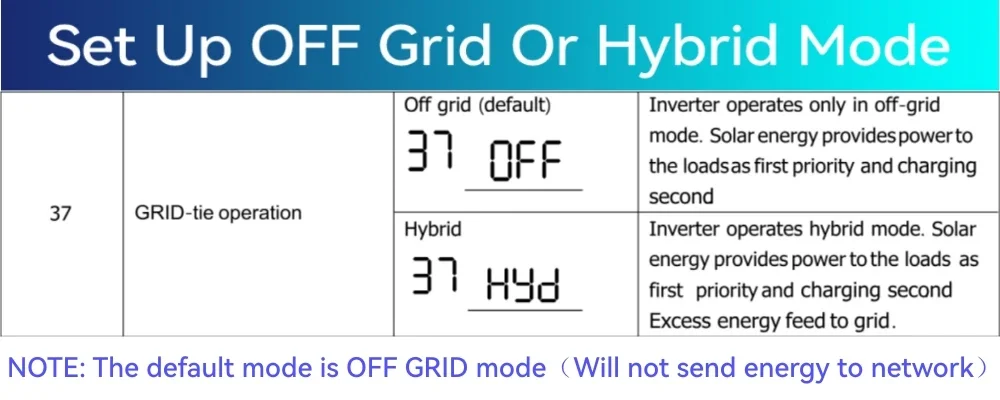

NoteThis is a wide voltage Hybrid Solar inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 120V for the inverter to work normally, if with external battery 90V is working.
