SPECIFICATIONS

AI Functions: other

Alarm Type: Local Alarm

App name: other

Audio Output: None

Brand Name: SUSIKUM

Certification: CE

Color: WHITE

Color Night Vision: No

Connectivity: Closed System/CCTV Wired

DC Cable: 80CM

Dimensions (L x W x D)(mm): None

High Definition: 5.0 Megapixels

Hign-concerned Chemical: None

IP Rating: other

IR Distance(m): 20 Meters

Installation: Ceiling,Normal,Pendant Mount

Internal Storage: None

Leds: 6 Pieces Array Leds

Lens: 1.7mm Lens

Lens (mm): 1.7mm

Lens Quantity: Single Lens

Material: Metal

Megapixels: 5MP

Minimum Illumination(Lux): 0.01Lux

Model Number: HD AHD Camera

Movement Range(Pan): other

Movement Range(Tilt): other

OSD Menu: Yes

Operating Temperature: -10°-60°

Optical Zoom: None

Origin: Mainland China

Power Consumption(W): 6W

Power Mode: Mains Electricity

Power Supply: Normal,DC12V 2A(Not Include)

Power Supply(V): DC 12V

Rechargeable Battery: None

Rechargeable Battery Capability: other

Resolution: 5MP; 2MP

SUSIKUM Model: SC-FAHD180D02IR

Scene: Indoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: other

Special Features: Vandal-proof

Style: Dome Camera

Supported Operating Systems: No

TF Card: None

Type: HD AHD Camera

Video Compression Format: H.264

Viewing Angle : 180°

Waterproof: Not; Indoor Use

Zoom: None

Zoom type: None

is_customized: Yes

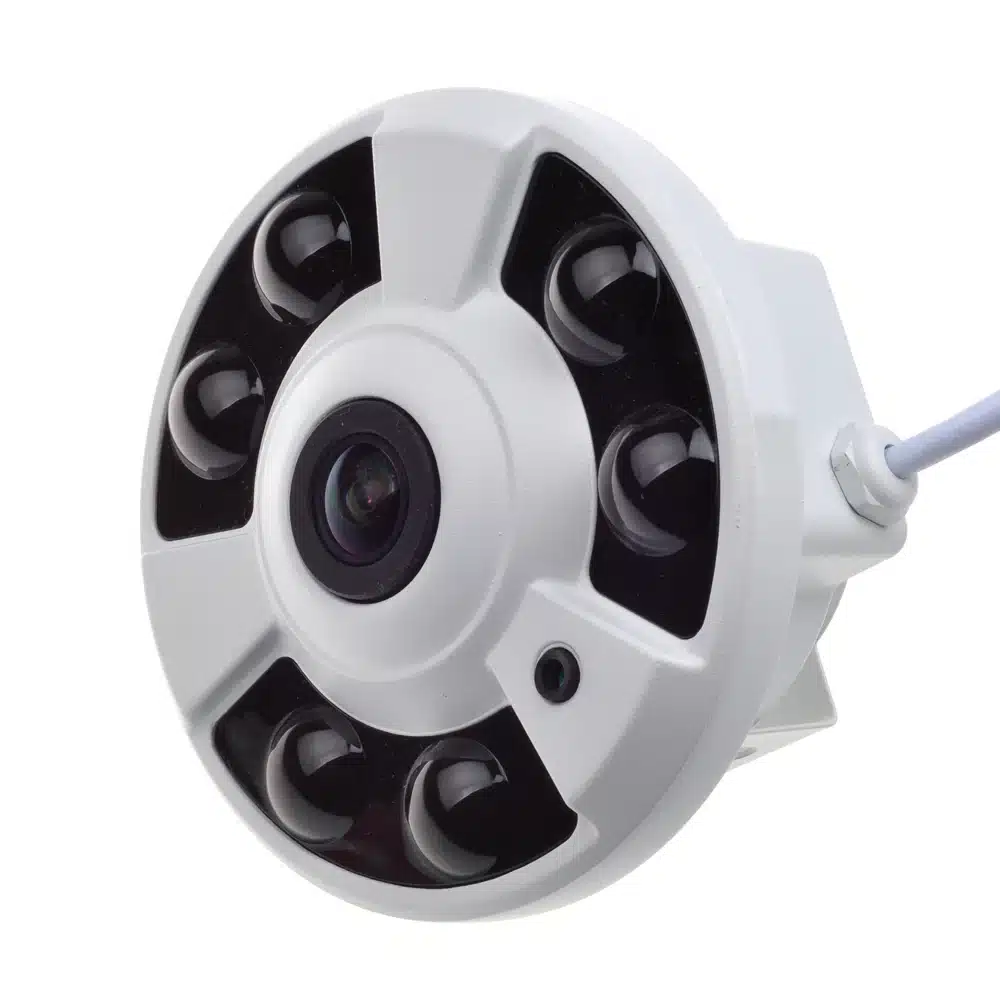

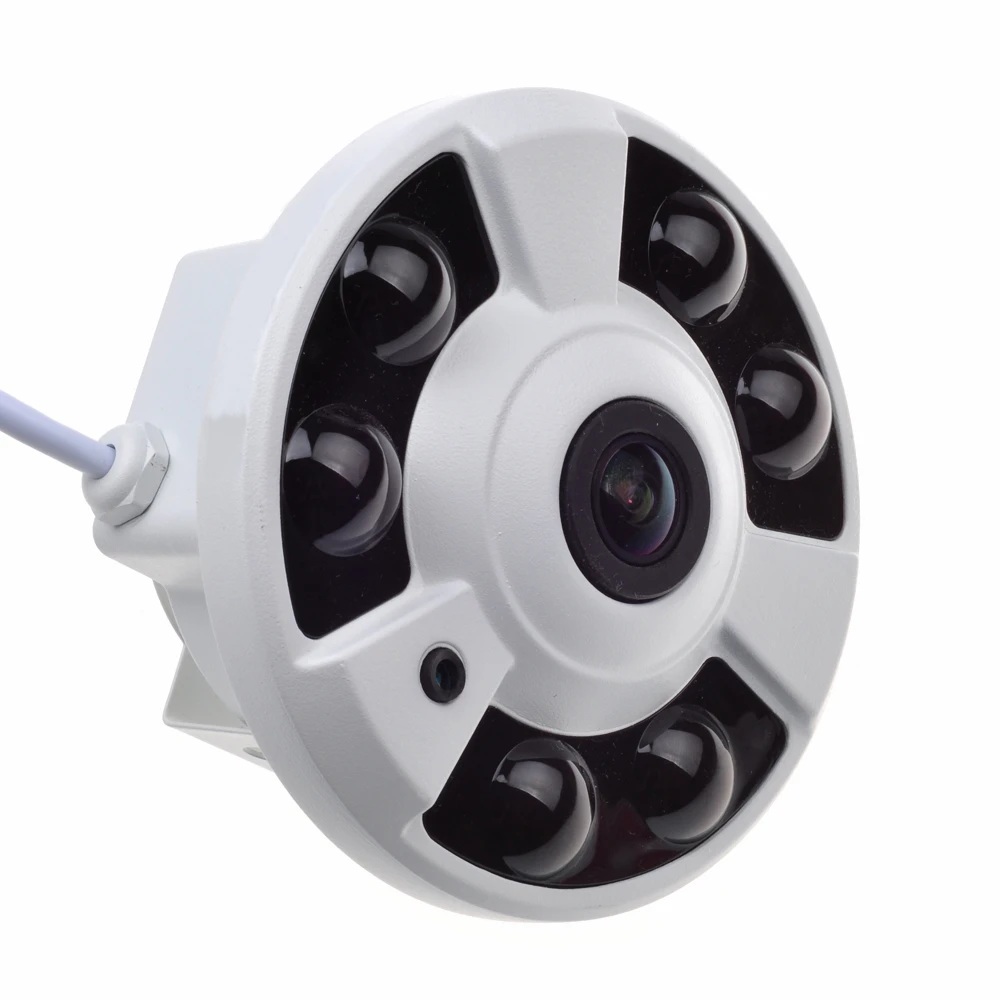

5MP HD AHD Camera 1080P Fisheye Lens 180 Degree Panoramic Camera IR Night vision Home Surveillance Camera Support AHD DVR

Features:

2MP/5MP Resolution;

1.7mm Lens 180 Degree;

6Pcs Array Leds IR Distance 20M;

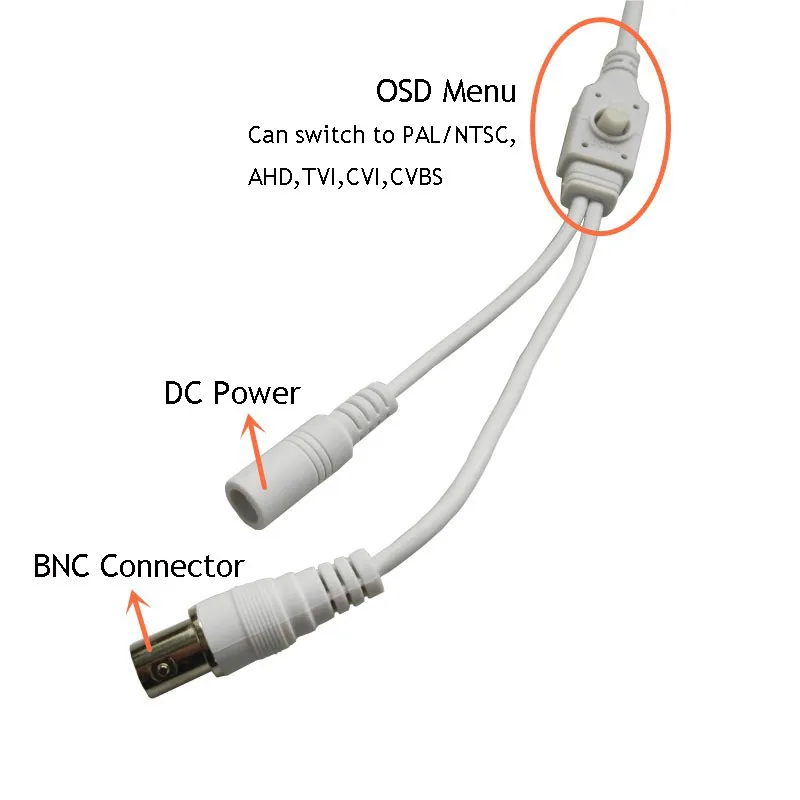

With OSD Menu Convenient to set camera;

Metal Material And Vandalproof;

SONY326 CMOS Sensor;

Not Waterproof Indoor Use;

Indoor Camera 5MP;

4 IN1 CCTV Camera,Can setting AHD/CVI/TVI/CVBS;

HD AHD Camera;

Noticed:It is 5MP AHD Camera,Must be connect 5MP AHD DVR.

Specification:

Product Name	5MP HD AHD Camera 1080P Fisheye Lens 180 Degree Panoramic Camera IR Night vision Home Surveillance Camera Support AHD DVR
Model No.	HD AHD Camera
System	High performance Nextchip2475H processor
Sensor	1/3'' CMOS,5.0Megapixel Low Lux, 2475+SONY326
Output resolution	2560(H)×2048(V)
D/N Mode	Auto/External/Color/B&W
Minimum Illumination	0.01LUX/F1.2(Led on)
Effective Pixel	PAL : 2560*2048@15fps
	NTSC :2560*2048@15fps
Signal System	PAL/NTSC
Video Standard	AHD and CVBS Standard
Video Output	1CH AHD HD/CVBS Standard Singal Output(Switchable)
Max Transmission Distance	Common 75-5 cables can be up to 500m
Lens	1.7mm Lens HD 5.0 megapixel lens
IR distance	20M (6pcs Array LEDs)
Shutter Speed	1/25s-1/50,000s
Backlight model	Backlight compensation/HLC
White Balance	Auto/manual/switch/indoor/outdoor
Digital WDR	support
Defog	support
Operation Temperature	-10°C~55°C
Power Supply	DC12V

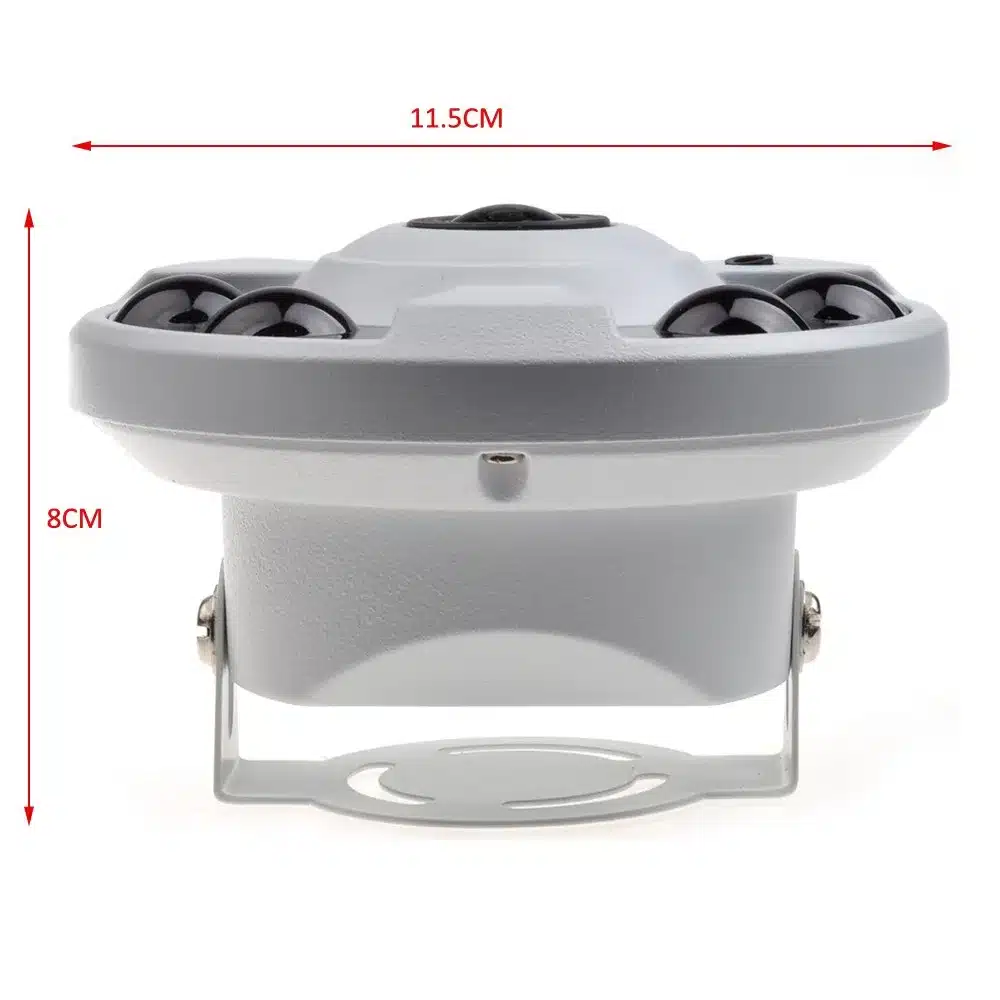

Dimension	130*65mm
Weight	500g

5MP HD AHD Camera 1080P Fisheye Lens 180 Degree Panoramic Camera IR Night vision Home Surveillance Camera Support AHD DVR

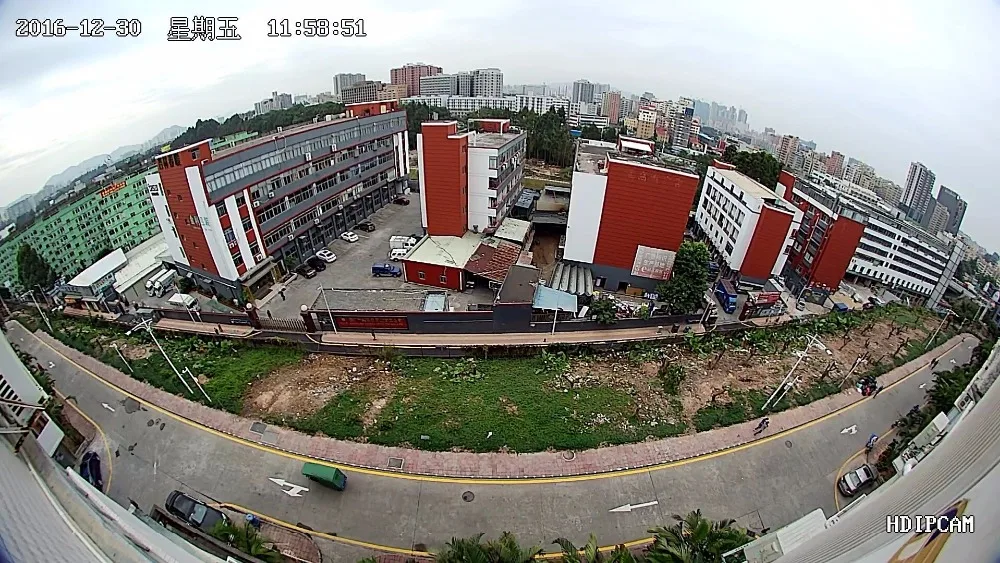

Day Vision:

Night Vision:
