SPECIFICATIONS

AI Functions: Human Detection

Audio Output: Two Way Audio

Brand Name: Ziksecu

Certification: CE

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

Feature 1: security protection mini camera

Feature 2: smart home camera video surveillance

Feature 3: webcam camera de seguranca

Feature 4: cctv camera telecamera sorveglianza

Feature 5: camara de seguridad outdoor

Feature 6: night vision home appliance

High Definition: 4.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP66

IR Distance(m): 20-30m

Installation: Ceiling

Internal Storage: None

Lens (mm): 4mm

Lens Quantity: Dual Lens

Megapixels: 4MP

Minimum Illumination(Lux): 0Lux IR on

Model Number: PG2046IRCS-P/PG2346IRCS-P/PG2086IRCS-P/PG2386IRCS-P

Operating Temperature: -10°-60°

Origin: Mainland China

Power Consumption(W): 5W

Power Source: With Poe

Power Supply: With Poe

Power Supply(V): 12 VDC POE

Scene: Indoor and outdoor

Sensor: CMOS

Smart home platform: other

Style: Bullet Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows XP,Windows 7,Windows 8,Windows 2008,Windows 10,Windows 2003,Windows 2000,Windows Vista,Windows 98

TF Card: None

Video Compression Format: H.264,H.265,MJPEG

Viewing Angle : 100°

Zoom: None

Zoom type: None

is_customized: Yes

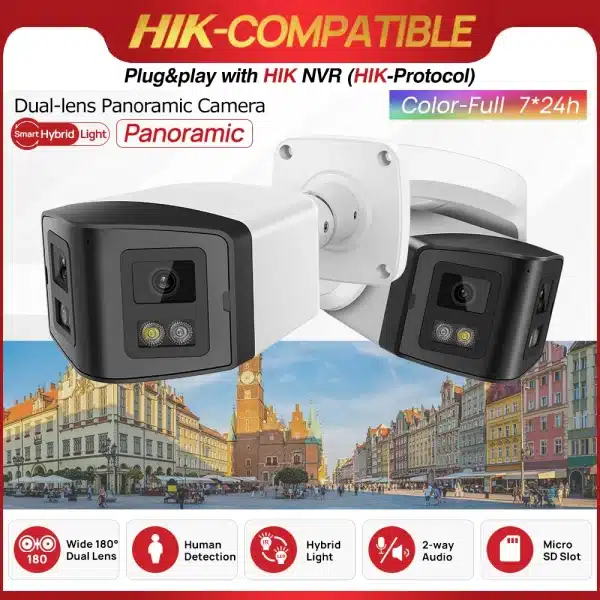

Hikvision Compatible 4MP 8MP Panoramic Colorvu IP Camera Built in Mic Speaker Human Detection CCTV Surveillance Network Cameras

>APP
：VIDEOLINK（IOS,Android）, support download by QR code（
If the camera needs to be added to the NVR
, use the NVR APP management）

>Search Tool
：SADP /AjDevTools（modify the default ip address and password）

>Retset Tool：
Videolink/ Internet Explorer

>Default IP
：192.168.1.110

>Username
：admin

>Password
：123456

>>> Notice  ： This camera is NOT HIKVISION ORIGINAL , is Hikvision Compatible , it can plug & play with Hikvision NVR, support most of the other brands NVR that support On-Vif protocol，and the camera can be worked with most of security monitor software, like Blue Iris, iSpy, VLC , and so on

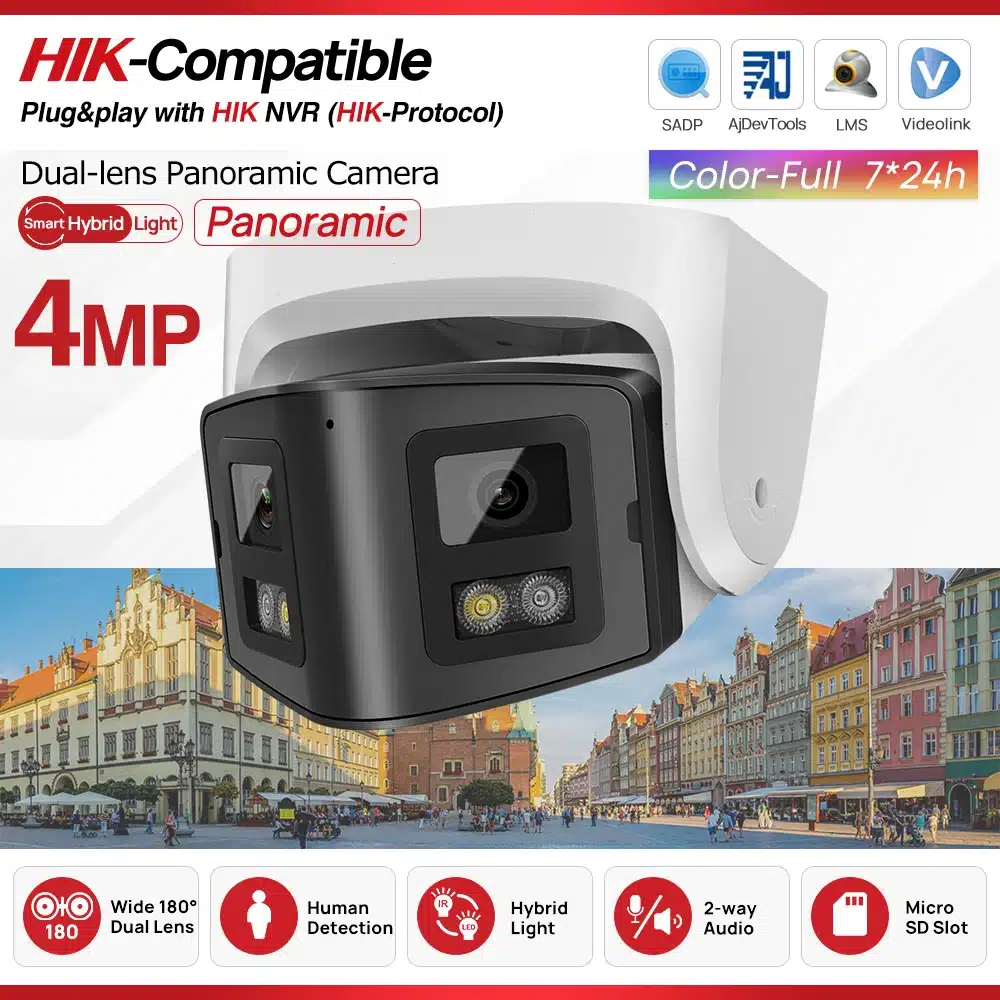

4/8MP Dual illumination Panoramic Network Camera

>High quality imaging with 4/8 MP resolution

>4MP (3840*1080 170°&40°)；8MP(4096*1944 160°&70°)
>One image that presents all the scenes covered by the camera
>24/7 colorful imaging
>Efficient H.265+ compression technology
>Clear imaging against strong back light due to 120 dB WDR technology
>Motion Detection
>Smart Dual Light, with 3 light mode
>Water and dust resistant



1.Camera

Image Sensor : 4MP:1/2.9" GC2063 CMOS; 8MP:1/2.7" GC5623  CMOS

Min. Illumination : Color: 0.05lux @(F1.6), 0 lux with IR light

Shutter Speed  : 1/10 s to 1/10,000 s

Slow Shutter : Yes

Day & Night : IR CUT Filter

Digital Noise Reduction : 3D DNR 2D DNR

WDR : 120dB

Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

2.Lens

Focal Length : Fixed focal lens,dual lens, 4MP(4mm*2),8MP(2.8mm*2)

Aperture : F1.6

Focus : Fixed

Focus Length & FOV : 4MP(horizontal FOV: 170°, vertical FOV: 40°); 8MP(horizontal FOV: 160°, vertical FOV: 70°)

Lens Mount : M12

3.Illuminator :

White Light & IR Range : Up to 30 m

Smart Supplement Light : Yes

4.Compression Standard :

Main stream: H.265+/H.265/H.264

Video Compression : Sub-stream: H.265+/H.265/H.264

H.264 Type : High Profile/Main Profile/Base Profile

H.265 Type : High Profile/Main Profile/Base Profile

H.265+ : High Profile/Main Profile/Base Profile

5.Smart Feature-set :

Smart Event : 4MP(Human detection),Vehice detection; 8MP(Human detection,Vehice detection)

Basic Event : Motion detection

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email

Linkage Method : Trigger notification: HTTP, Email

6.Image :

Max. Resolution : 4MP(3840 × 1080); 8MP(4096 × 1944)

Main Stream : 4MP(3840 × 1080 20fps); 8MP(4096 × 1944 20fps)

Sub-Stream : 4MP(1280 x 360 20fps); 8MP(20 fps 1280 x 360 ；20 fps 768 x 360)

Image Enhancement : WDR/HDR/3D DNR/2D DNR/HLC/BLC

Image Setting : Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

SVC : H.264 and H.265 encoding support

Day/Night Switch : Day/Night/Auto/Schedule

7.Network

Network Storage : Support local storage and NAS (NFS, SMB/CIFS)

Protocols : HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P,SMTP,RTMP

Client : AJ_Client,AVideolink,LMS

8.Interface :

Communication Interface : 1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone : Yes

Built-in Speaker : Power: 3W.MAX. Sound pressure lever:10cm: 100dB.

Reset Key : Yes

On-Board Storage : Built-in memory card slot, support microSD card,up to 512GB

9.General

Operating Conditions : -30 °C to +85 °C, humidity 95% or less (non-condensing)

Web Client Language : 14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese,Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi

Power Consumption and Current : DC 12V, 1 A, max. 10 W Φ 5.5X2.1 mm coaxial plug power

PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W

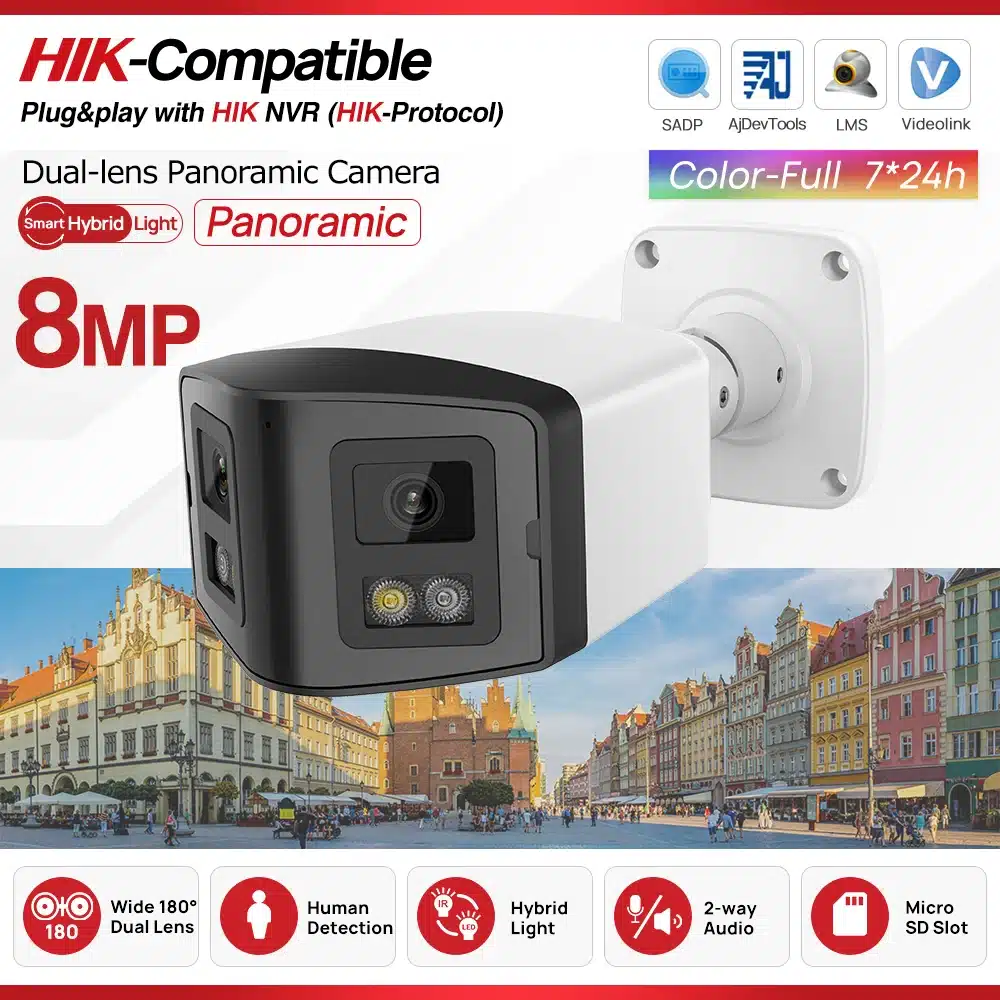

*Bullet :

Protection Level : IP67-Each Camera has been tested waterproof

Material : Front cover:metal,body:metal,bracket:metal

Camera: 236.1 × 110 x 74mm (9.29" × 4.33 x 2.91")

Dimensions : Package: 325 × 125 × 120 mm (12.8" × 4.92" × 4.7" )

Weight : Apporx.650g(1.43 lb)

With Package Weight : Apporx.800g(1.76 lb)

*Turret :

Protection Level : IP66-Each Camera has been tested waterproof

Material : Front cover:metal,body:plastic,bracket:plastic

Dimensions : Camera:  137.5 × 100mm   (5.41" × 3.94")

Package: 173 × 173 × 120 mm (6.81" × 6.81" × 4.7" )

Weight : Apporx.460g(1.01 lb)

With Package Weight : Apporx.600g(1.32 lb)

SMART H.264/H.265
