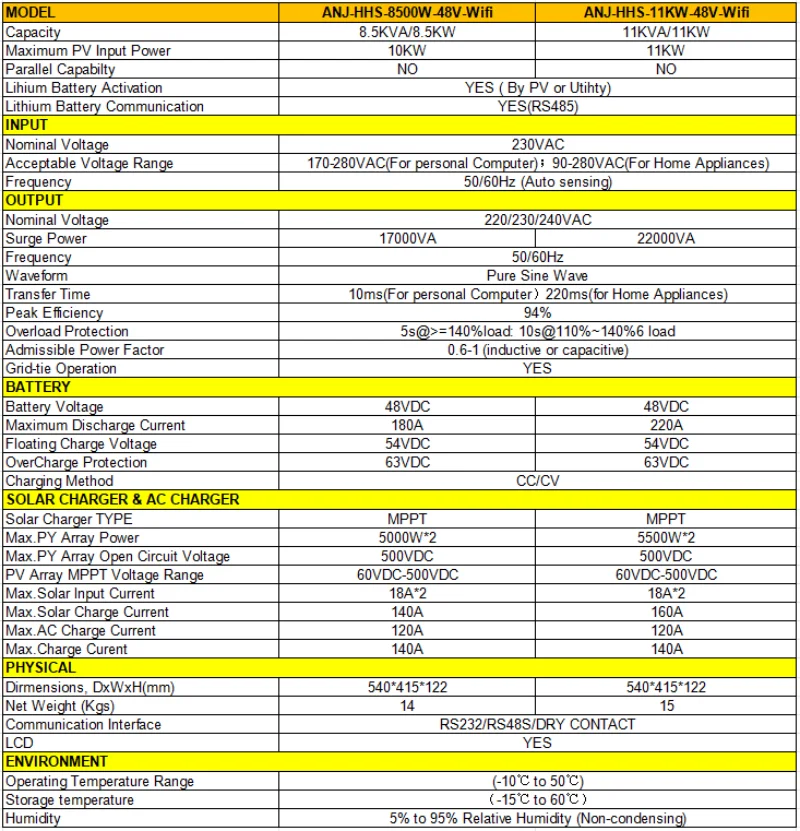

SPECIFICATIONS
Acceptable Voltage Range: 170-280VAC(For personal Computer);90-280VAC(For Home Appliances),90-280VAC(for home Appliances)
Battery Voltage: 48V
Brand Name: ANENJI
Certification: CE
Communication interface: RS232(Standard)GPRS/WIFI Optional
Floating Charge Voltage: 44V
Hign-concerned Chemical: None
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Input Voltage: 230VAC,230VAC
Is Smart Device: Yes
MPPT Range operation Voltage: 90V-500VDC
Maximum Efficiency: 98%
Maximum PV Array Open Circuit Voltage: 500VDC
Maximum PV Array Power: 11000W
Maximum Solar Charge Current: 180A
Maximum charge current: 140A
Model Number: ANJ-11KW-48V-Wifi
Nominal Capacity: 11KW
Operation Temperature: -10℃-55℃
Origin: Mainland China
Output AC Voltage Regulation(Batt.Model): 195.5-253VAC
Output Current: 160A
Output Frequency: 50/60HZ Auto sensing
Output Type: SINGLE,DUAL
Overcharge Protection: 52V
Rated Power: 11000W/11000VA
Size: 42x31x11CM
Solar Charge type: MPPT
Storage Temprature: -15℃-60℃
Transfer Time: 10ms (For Personal Computers),20ms(For Home Appliances)
Wave Form: Pure sine wave
Weight: 16.5kg
Tips:
Description:
Mainly Advantage：Two PV Input，Superb Performance Meet Your Multiple Requirements.
1.Pure Sine Wave Max 8500W/11000W Output
2.Max 140/160A MPPT Solar Charger
3.Max 500VDC PV Input
4.High PV input voltage range(60~500VDC)
5.Output power factor 1.0
6.Real Hybrid Grid Solar inverter for 48V system
7.Wifi Module for easily connection
8.Efficiency work with or without battery
9.Bundled monitoring& setting software
10.Supports 50hz or 60hz (program adjustable)

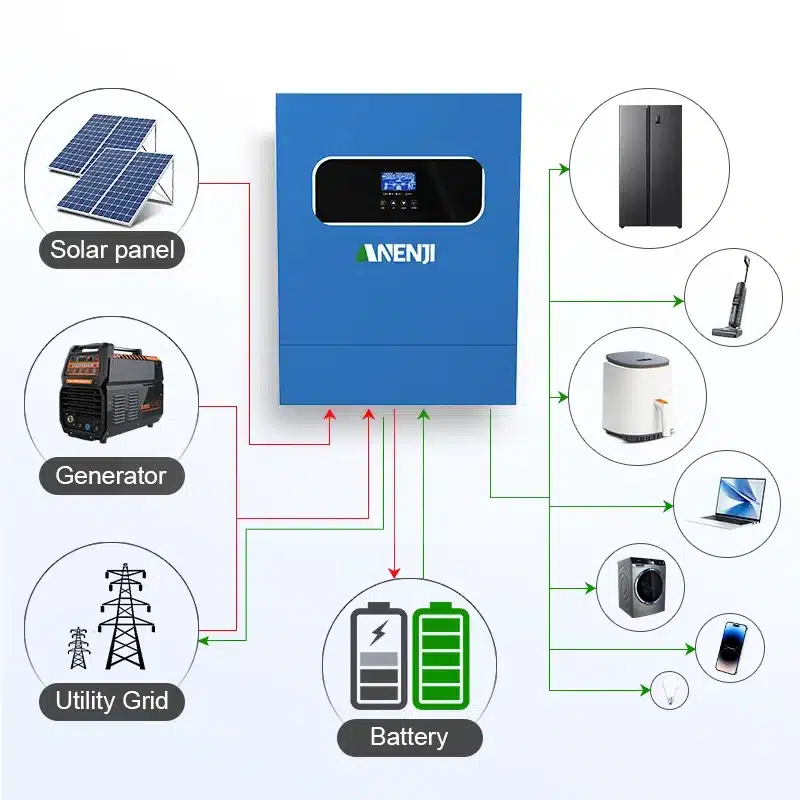

11.Able to use ac grid or generator power
12.Timer setting for AC charging & output now available
13.Built-in anti-dusk kit for harsh environment
14.Optional DC output for DC fan, router and so on
15.Dual Load Output（V2.0）
16.Two PV Input. (If need two side in Parallel, please make sure same number solar Panels in Series each side)
17.2 MPPT
NOTE: 1.Support works without battery
2.Support Grid Feedback on grid+off grid (need work grout battery)
3.with Dual MPPT Solar Charge Controller
This is a wide voltage Hybrid inverter, If Solar Inverter without external battery ,The voltage which starts to connect to the solar panel must be above 150V for the inverter to work normally, if with external battery 120V is working
Package include:
The unit x 1
User manual x 1
WIFI X1
The gold coin credit can be used and is even more favourable when used

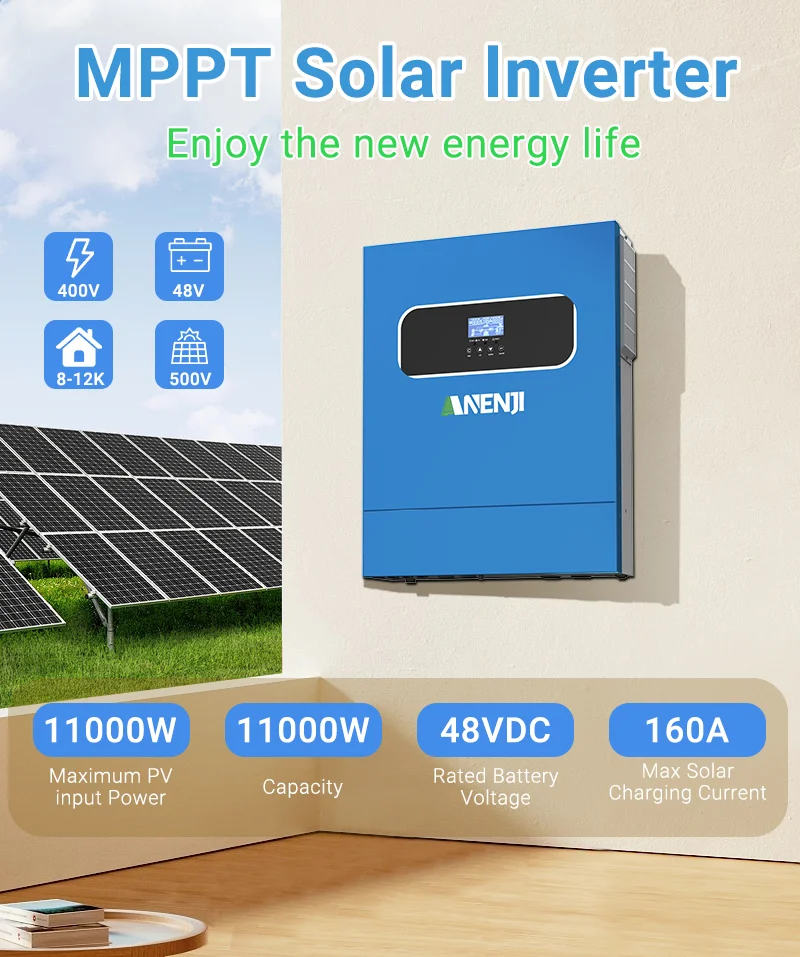

MPPT Solar Inverter
MULTI FUNCTION
1.Built-in 2MPPT
2.Lithium battery activationfunction by PV or Utility
3.Compatible work with LiFePO4 battery viaRS485
4.Pure Sine Wave
5.Powerfactor 1.0
6.PVInput 500Vdc Max
7.Built-in MPPT 140A/160A

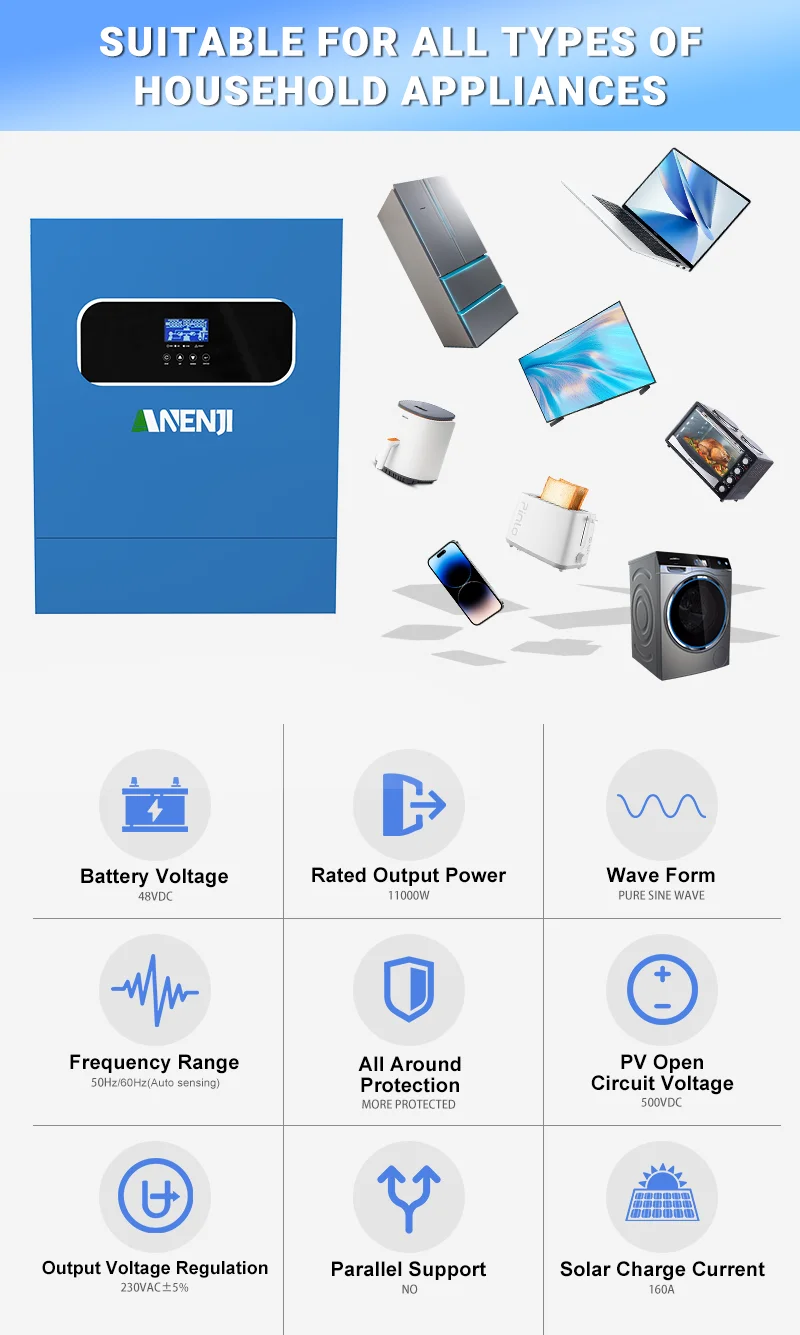

SUITABLE FOR ALL TYPES OF
HOUSEHOLD APPLIANCES

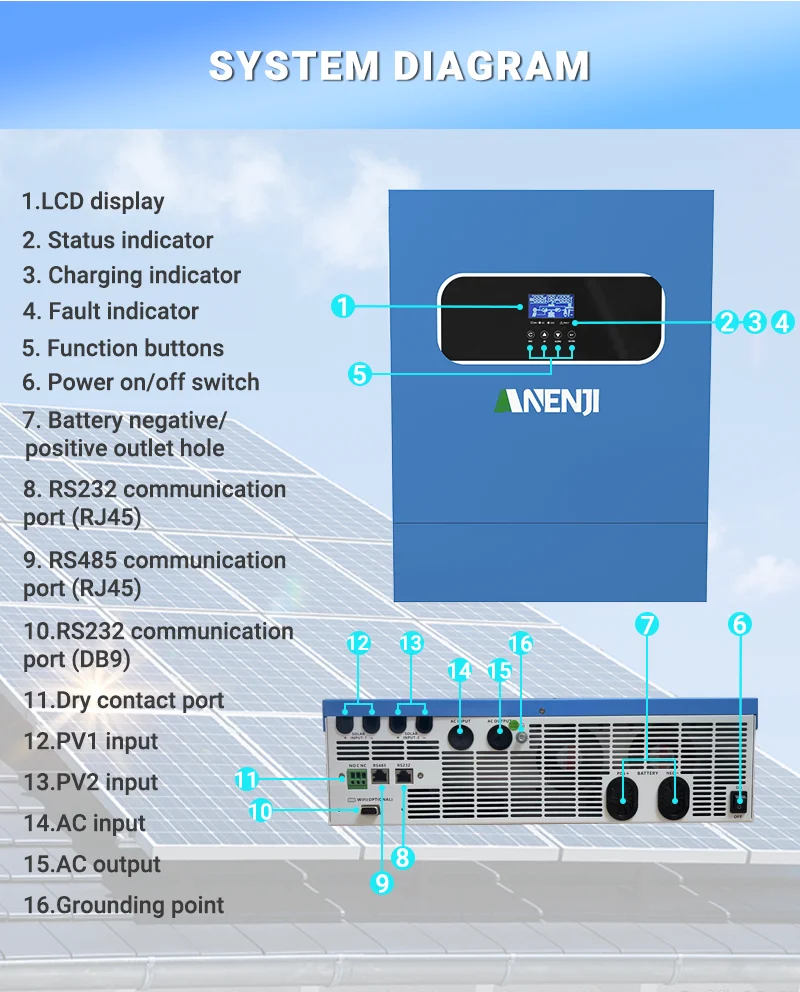

SYSTEM DIAGRAM

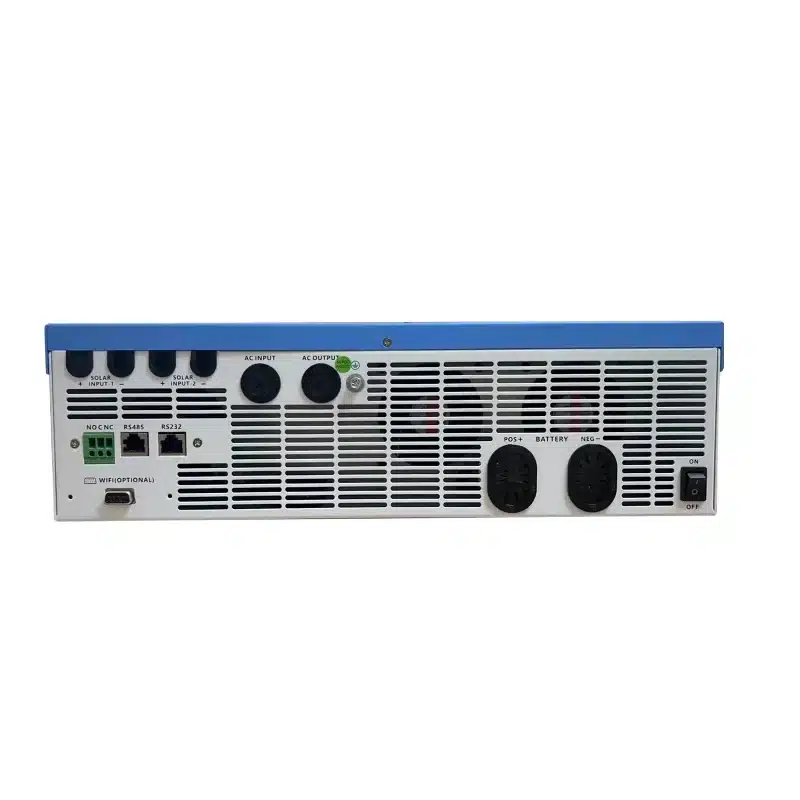

1.LCD display
2. Status indicator
3.Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. Battery negative/
positive outlet hole
