SPECIFICATIONS

Brand Name: ANENJI

Certification: CE,FCC

Communication interface: RS232/WIFI/RS485

Feature: Supports works without batteries

Hign-concerned Chemical: None

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Is Smart Device: YES,Yes

MPPT Range operation Voltage: 60-500VDC

Maximum Efficiency: 98%

Maximum PV Array Open Circuit Voltage: 500VDC

Maximum Solar Charge Current: 4kw for 100A / 6.2kw for 120A

Origin: Mainland China

Output Current: 4kw for 100A / 6.2kw for 120A

Output Power: 1 – 200KW

Transfer Time Transfer Time,: 20ms(For Home Appliances)

Wave Form: Pure sine wave

is_customized: Yes

ANENJI 6.2KW 4.2KW Solar Inverter Hybrid 48V 24V Pure Sine Wave On Grid Off Grid MPPT 120A 100A PV 500VDC Solar Charge Controller

Tips

For EU country customers,you can place order from china，we will ship to you from our german warehouse,Finally checkout price will save 20% more,delivery time for 4-9 worksday.

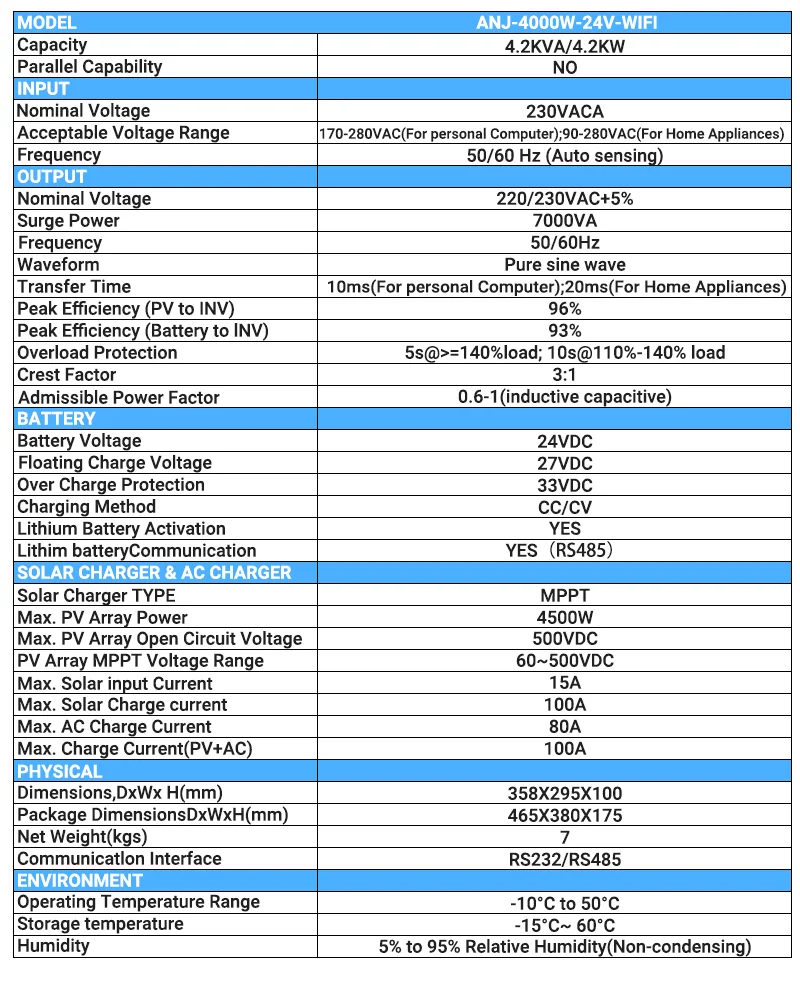

ANJ-4000W-24V-WIFI:

Attention: 4200W is currently the version with built-in WiFi

Key Features:

1. Pure Sine Wave Output: Delivers stable power, making it suitable for all sensitive devices. Your electronics will run smoothly and safely.

2. Power Factor 1.0: Maximizes energy utilization and power transmission efficiency, saving you money in the long run.

3. Wide PV Input Voltage Range: Supports 60Vdc – 500Vdc, allowing for flexible solar panel connections.

4. 100A MPPT Controller: Integrates advanced Maximum Power Point Tracking technology to extract maximum power from solar panels.

5. Lithium Battery Activation: Can be activated by mains or PV, ensuring the efficient operation and maintenance of lithium batteries.

6. LiFePO4 Battery Compatibility: Connects to LiFePO4 batteries via RS485 interface for longer lifespan and higher safety.

7. Battery – free Operation: Works normally even without a battery, ensuring continuous power supply.

8. Detachable Dust Cover: Ideal for harsh environments, protecting the inverter from dust and debris.

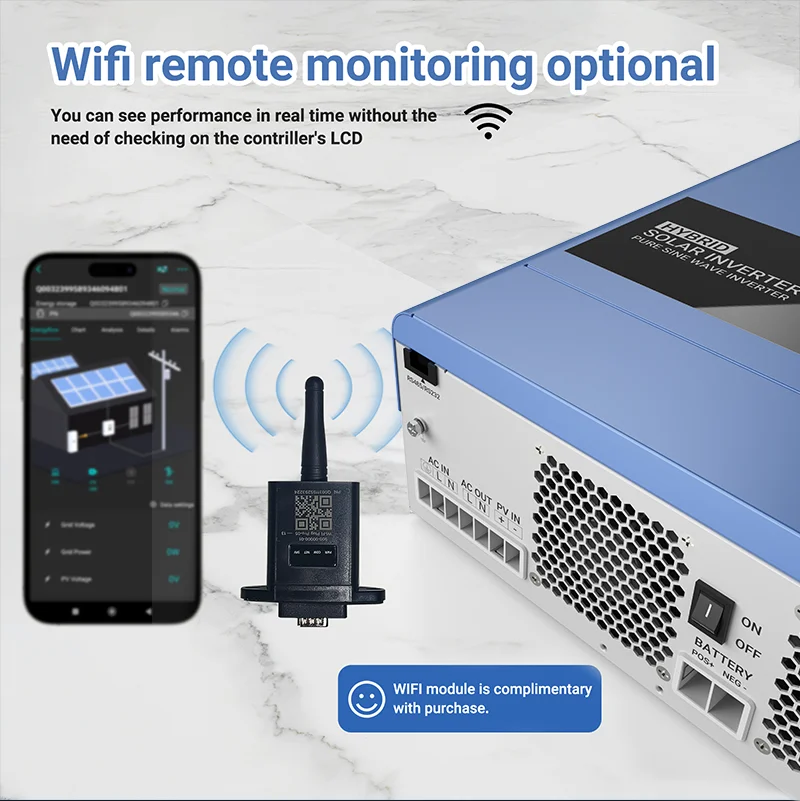

9. WiFi Remote Monitoring: Keep track of your system's status and control it remotely for added convenience.

10. Multiple Output Priority Support: Configure output priority (UTL, SOL, SBU, SUB) for flexible power management.

11. Battery Optimization Function (EQ): Improves battery performance and extends its lifecycle.

Packing List:

1X inverter

1X Instructions

Offline enquiry for greater discounts

WhatsApp：+86 18373137352

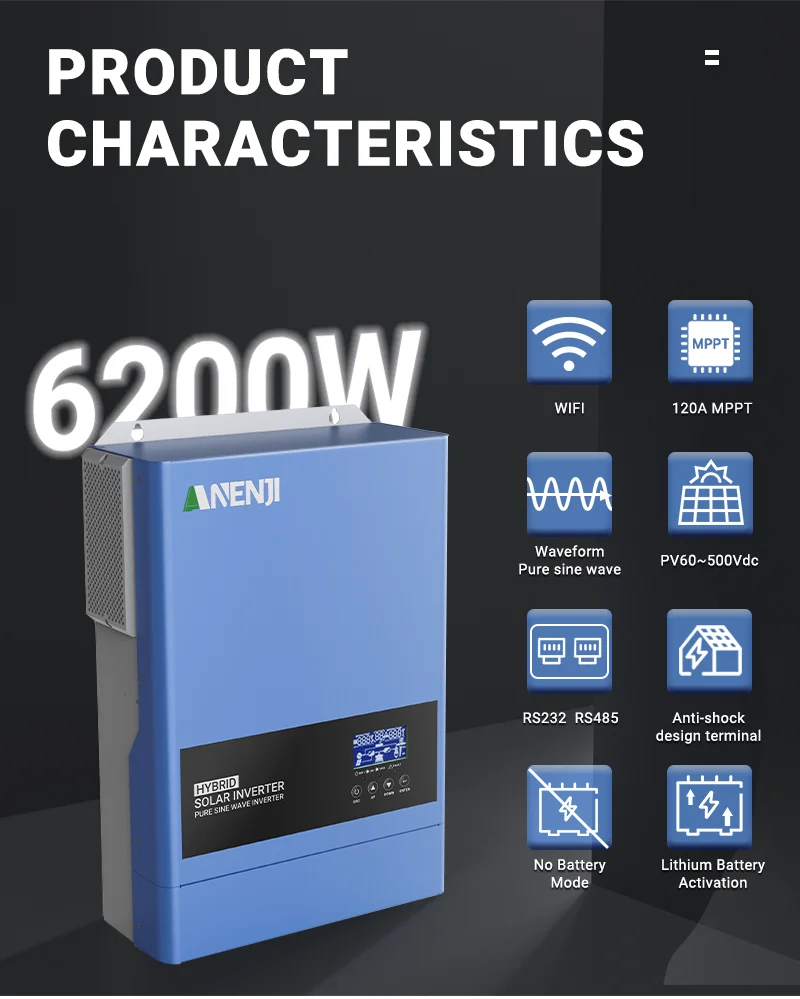

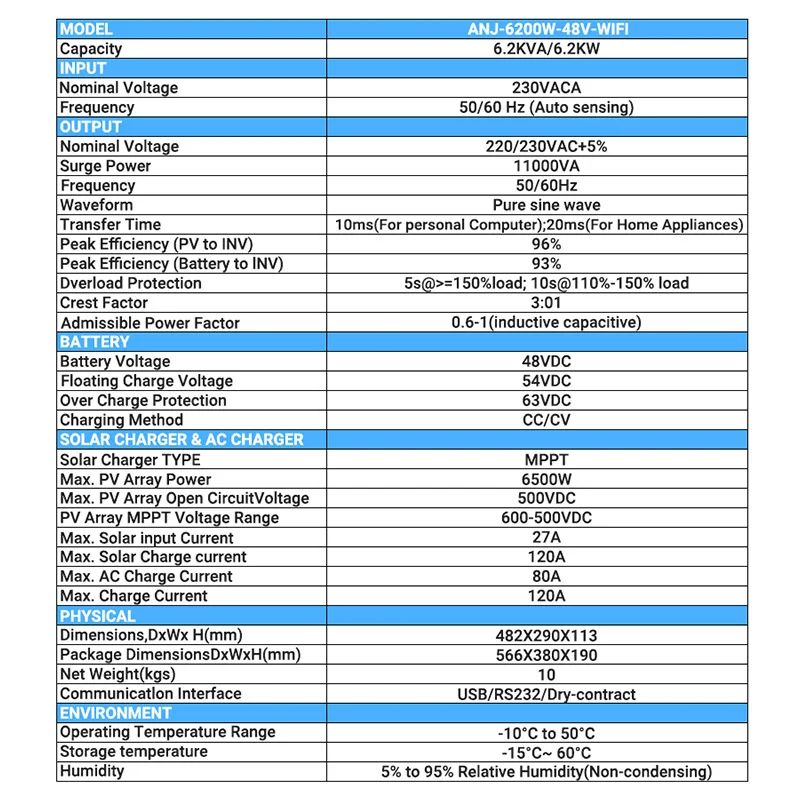

ANJ-6200W-48V-WIFI

Key Features:

1. Off-Grid + Parallel-Ready

Ø Operates independently off-grid and supports parallel connection of up to 12 units for single/three-phase systems 1210.

Ø Expand power capacity flexibly for homes, farms, or commercial setups.

2. LiFePO4 Battery Compatibility

Ø Optimized for LiFePO4 batteries, ensuring longer lifespan and enhanced safety 114.

3. Plug-and-Play WiFi Monitoring

Ø Direct plug-in WiFi dongle for real-time remote monitoring—no extra cables needed 19.

4. High-Efficiency MPPT & Pure Sine Wave

Ø 120A built-in MPPT maximizes solar harvest (up to 500V PV input) 310.

Ø Pure sine wave output (PF 1.0) ensures stable power for sensitive devices.

5. Battery-Free Operation & Durability

Ø Functions without batteries using direct solar/AC input 14.

Ø Detachable dust cover protects against harsh environments 17.

6. Smart Power Management

Ø Customizable output priorities: UTL, SOL, SBU, SUB 110.

Ø EQ function extends battery life through performance optimization.

Packing List:

1X inverter

1X WIFI module

1X Instructions

Advantages of choosing us

We have our own factory, and have warehouses in many areas, when you order, we will be in the nearest warehouse for you to ship, so that you receive the goods in a short period of time!

**Efficient Power Conversion and Versatile Compatibility**

The Hybrid Solar Inverter 11KW, 6.2KW, 4.2KW, and 2KW models are engineered for seamless integration with residential and commercial solar systems. Designed to support a wide range of voltage requirements, this inverter's output AC voltage regulation ensures a stable power supply, maintaining a 230VAC±5% output. With a maximum PV array open circuit voltage of 500VDC, it can effectively handle high-voltage solar arrays, making it an ideal choice for homeowners and businesses looking to optimize their solar energy conversion.

**Advanced Energy Management and Smart Control**

The inverter's advanced MPPT range operation voltage capability of 60-500VDC guarantees peak power extraction from PV modules, translating into higher energy efficiency. It also features a maximum solar charge current of 120A, ensuring quick and efficient charging of the battery bank. The inverter's smart device capabilities and WiFi module integration allow for remote monitoring and control, enhancing user convenience and system management.

**Robust and User-Friendly Design**

The inverter's robust design is built to withstand harsh environments with an operation temperature range of -10℃ to 55℃ and a storage temperature range of -15℃ to 60℃, making it suitable for various climates. The inclusion of a detachable dust cover further protects the inverter from dust accumulation. The inverter's user-friendly interface and support for customization cater to the unique needs of users, ensuring a reliable and tailored energy solution.
